10
3
PREPARATION
New2001
■ Initial setting mode (Continued)

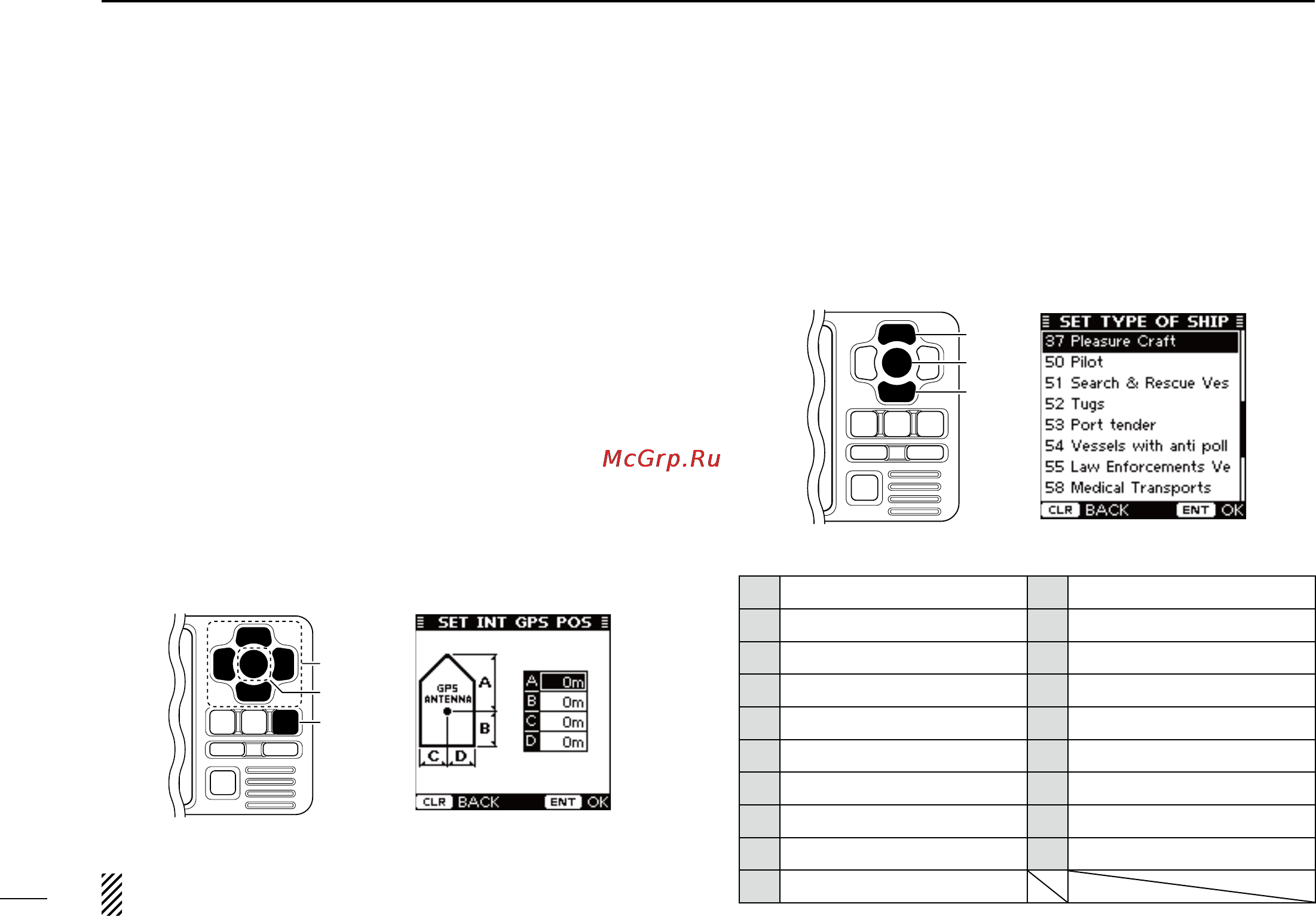

D Internal/External GPS Antenna Position
Setthesemeasurementstoindicatetheinternaland/orexter-
nal GPS antenna position on the vessel.
•InternalGPSantenna :The GPS antenna which is connected to
the [GPS] connector.
•ExternalGPSantenna:
The GPS antenna which is connected to one
of the NMEA lines. (p. 37)
q Push [∫] or [√] to select “A,” “B,” “C” or “D.”
•A : Bow to Antenna
•B : Stern to Antenna
•C : Port side to Antenna
•D : Starboard side to Antenna
•Push[CLEAR] to cancel and return to the previous screen.
w Push [Ω] or [≈] to input the value into that item.
A and B : Between 0 and 511 meters (0 and 1676.5 feet)
C and D : Between 0 and 63 meters (0 and 206.6 feet)
e Repeat steps q and w to input other values.
r Push [ENT] to save and return to the Initial setting mode.
[CLEAR]
[ENT]
[∫], [√],
[Ω], [≈]
To show the external GPS antenna set screen, select
“Set
EXT GPS POS” in the “Initial Setting” mode. (p. 9)
D Type of Ship
Select your vessel type.
➥ P ush
[∫] or [√]
to select your vessel type from the list,
then push [ENT] to save and return to the Initial setting
mode.
[ENT]
[∫]
[√]
• Type of Ship List
30 Fishing 52 Tugs
31 Towing 53 Port tender
32 Towing & two < 200m 54 Vesselswithantipollution
33 Engaged in Dredging 55 LawenforcementsVessel
34 Engaged in Diving 58 Medical Transports
35 Engaged in Military 59 Ships RR Resolution NO18
36 Sailing 60 Passenger Ship
37 Pleasure Craft 70 Cargo Ship
50 Pilot 80 Tanker
51 Search&RescueVessel
This screen shows the inter-
nal GPS antenna set screen.
