33
6
MENU MODE OPERATION
New2001
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
• Alarm Buzzer
Turn the alarm buzzer function ON or OFF.
➥ Push [ENT] to toggle this function ON or OFF.*
ON : The alarm buzzer sounds when a malfunction oc-
curs or an AIS target is closer than your CPA and
TCPA settings*. (default)
* The alarm buzzer sounds only when the collision alarm
function is turned ON. (p. 29)
OFF : The alarm buzzer is OFF.
• Received Message Buzzer (RCV MSG BUZZ)
Turn the received message buzzer function ON or OFF.
➥ Push [ENT] to toggle this function ON or OFF.*
ON : The buzzer sounds three times when a message is
received. (default)
OFF : The received message buzzer is OFF.
* You can also turn ON the function by pushing [≈], or OFF
by pushing [Ω].

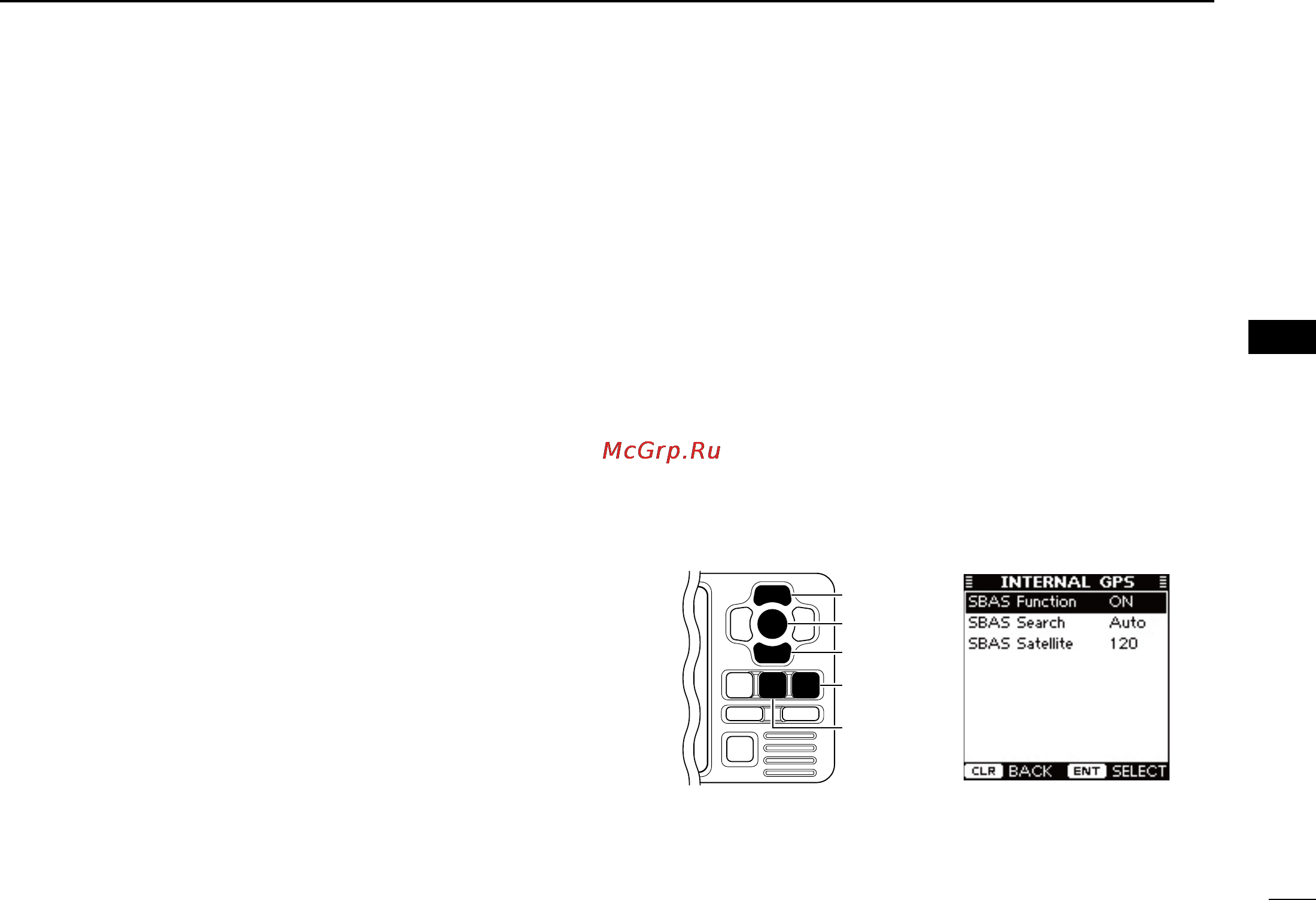

• Internal GPS
The Internal GPS setting mode allows you to set the internal
GPS settings.
q Push [MENU] to enter the Menu mode.
w Push [∫] or [√] to select “User Setting,”
then push [ENT].
e Push [∫] or [√] to select “Internal GPS,”
then push [ENT].
r
Push [∫] or [√] to select the desired item, then push [ENT].
t Select the desired option, shown in the Menu below.
The procedures are described to the right and continued
on the next page.
y Repeat steps r and t to select other items.
u Push [CLEAR] to save and return to the User Setting
mode.
i Push [CLEAR] twice to exit the Menu mode.
[CLEAR]
[ENT]
[∫]
[√]
[MENU]
