Icom MA-500TR [20/60] Preparation

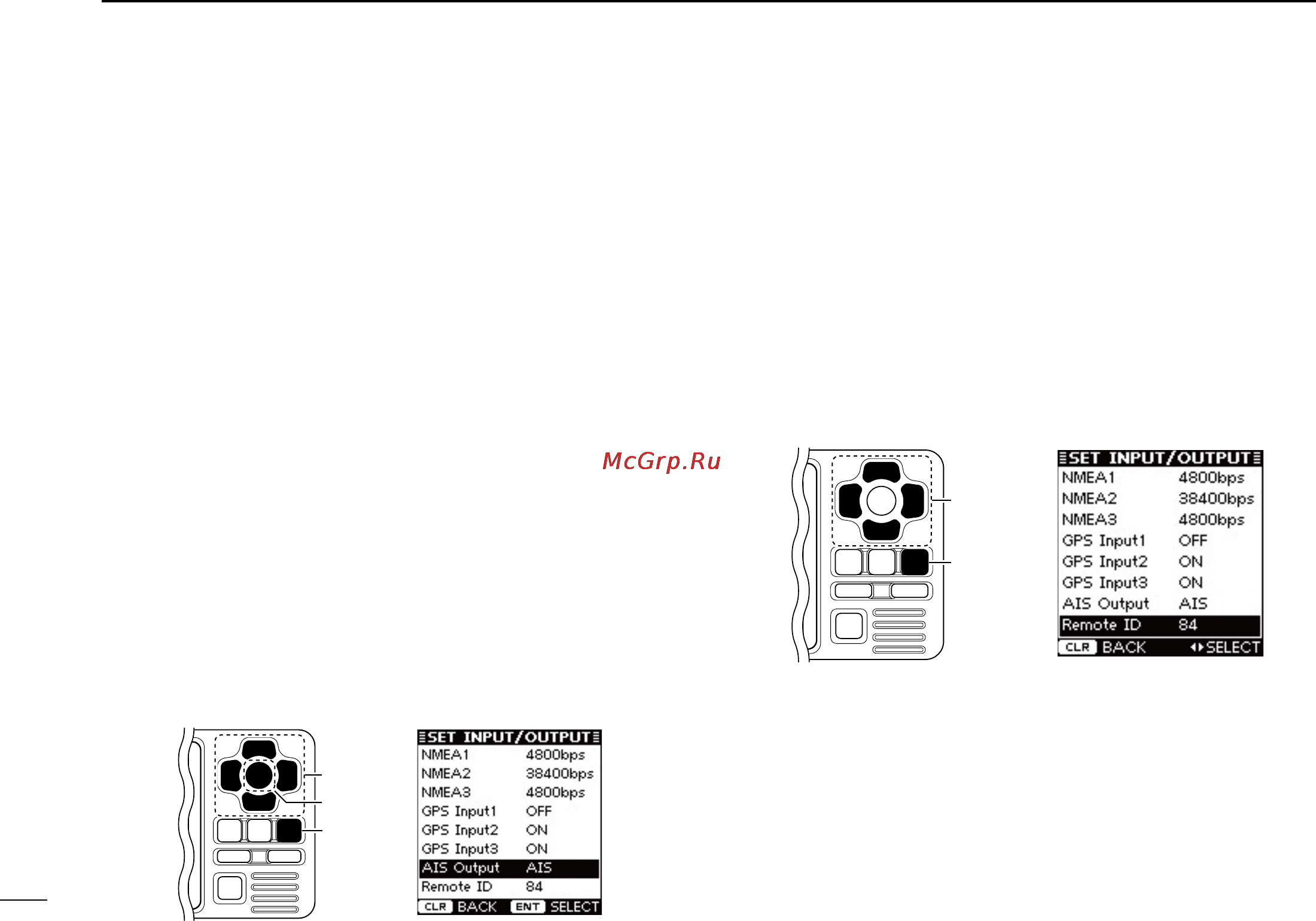

![Icom MA-500TR [20/60] Preparation](/views2/1074305/page20/bg14.png)
12
3
PREPARATION
New2001
■ Initial setting mode
DNMEAInput/Outputports(Continued)
• AIS Output
Set the NMEA2 output port’s capability.
This function should normally be set to “
AIS
.”
q P
ush [∫] or [√] to select “AIS Output.”
w Push [ENT]toselecteither“AIS”or“AIS+GPS.”
•Youcanalsoselecttheoptionbypushing[Ω] or [≈].
AIS : The NMEA2 output port sends only the AIS
information to the connected device. (Default)
AIS+GPS :The NMEA2 output port sends both the AIS
and GPS information to the connected device.
This setting is recommended for use in an area
where there are few vessels. In areas crowded
with AIS equipped vessels, a large amount of
information is received. The output of GPS in-
formation has priority, so the NMEA2 output
port may not send some AIS information cor-
rectly. However, the transponder displays the
AIS information on it’s LCD correctly.
e Push [CLEAR] to save and return to the Initial setting
mode.
[CLEAR]
[ENT]
[∫], [√],
[Ω], [≈]
• Remote ID
Set a Remote ID number between 80 and 89.
The Remote ID is included in the sentence of the format for
the Icom own NMEA.
q P
ush [∫] or [√] to select “Remote ID
.
”
w Push [Ω] or [≈] to set a Remote ID number between 80
and 89.
e Push [CLEAR] to save and return to the Initial setting
mode.
[CLEAR]
[∫], [√],
[Ω], [≈]
