BASIC OPERATION
New2001

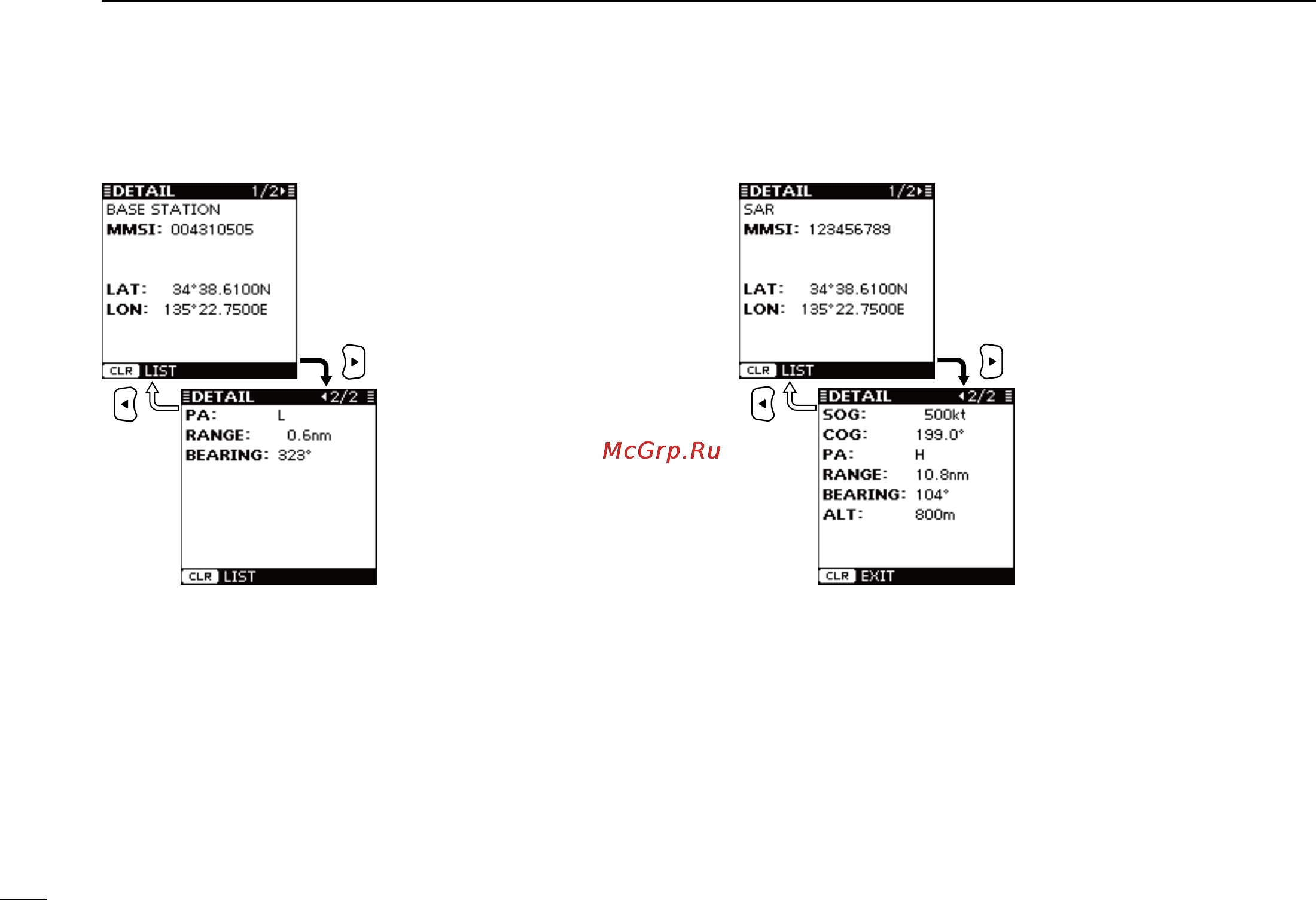

■ About the detail screen (Continued)
D
The
detail screens
of a “Base Station”
D The detail screens of an “SAR”
•AISClass
•MMSICode
•Latitude
•Longitude
•PositionAccuracy
(H: High, L: Low)
•Range
•Bearing
•AISClass
•MMSICode
•Latitude
•Longitude
•SpeedOverGround
•CourseOverGround
•PositionAccuracy
(H: High, L: Low)
•Range
•Bearing
•Altitude
