7
1
PANEL DESCRIPTION

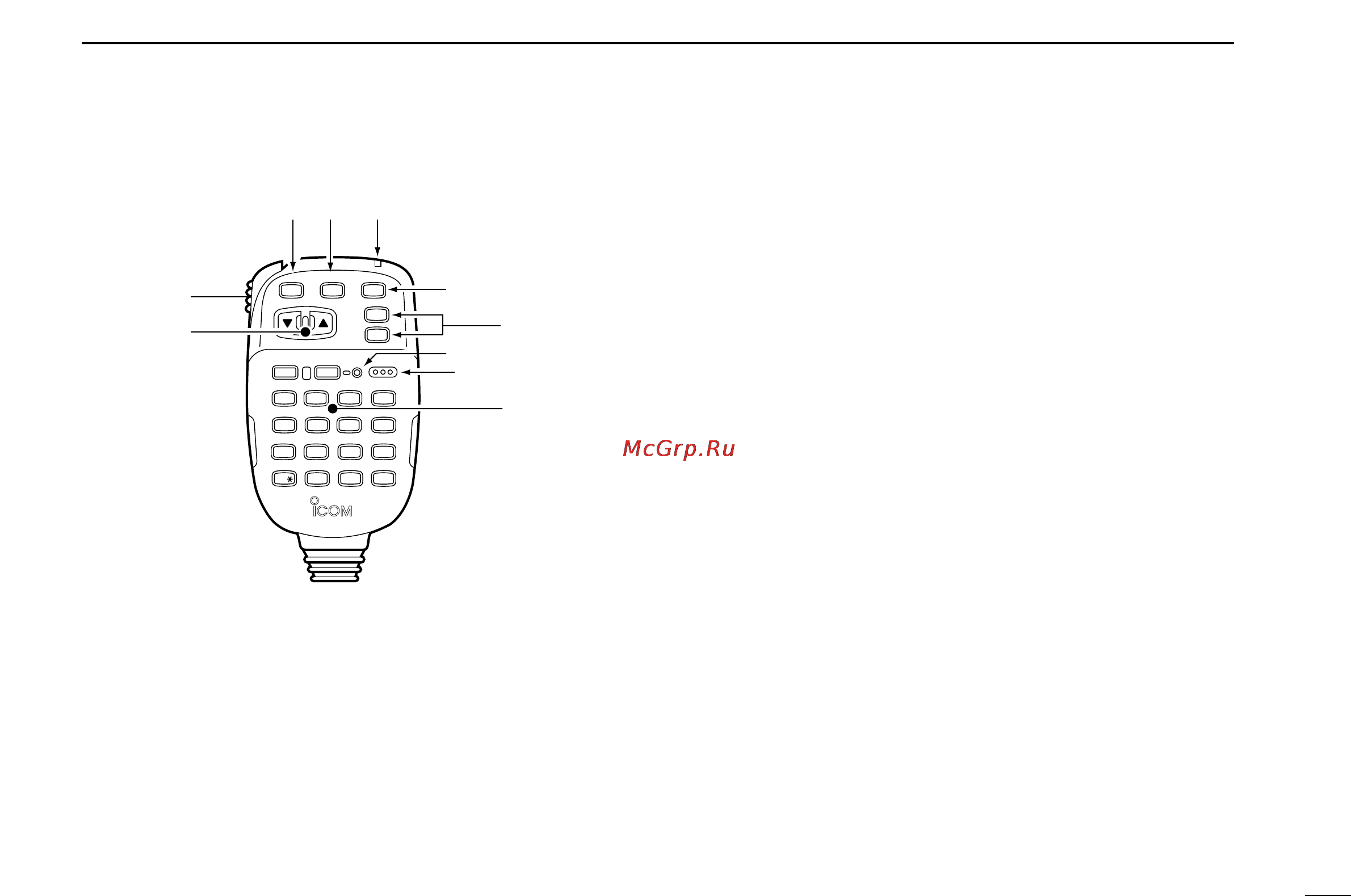

■ Microphone (HM-98S*)
q UP/DOWN SWITCHES [Y]/[Z]
➥ Push either switch to change operating frequency, mem-
ory channel, set mode contents, etc. (pgs. 15, 26)
➥ Push and hold either switch to start scanning. (p. 37)
w PTT SWITCH
➥ Push and hold to transmit; release to receive.
➥ Toggles between transmitting and receiving while the
one-touch PTT function is in use. (p. 20)
LOCK
VFO
CALL
MR
MW
FUNC
A
CLR
D-OFF
B
SET
PTT-M
3
PRIO
DTMF
6
LOW
2
SCAN
5
MID
1
MONI
4
HIGH
T-OFF
C
ENT
TSQL
9
SIMP
16
KEY LOCK
#
TSQLS
8
DUP+
TONE-2
0
TONE
7
DUP–
TONE-1
F-2
F-1
B
DTMF-S
MUTE
D
Mic element
q
w
er t
y
u
i
o
e VFO SWITCH [VFO(LOCK)]
➥ Push to select VFO mode.
➥ Push and hold to toggle the lock function ON and OFF.
(p. 14)
r MEMORY SWITCH [MR(CALL)]
➥ Push to select memory mode. (p. 26)
➥ Push and hold to select the call channel. (p. 32)
t ACTIVITY INDICATOR
➥ Lights red while any key is pushed (except [FUNC] or
[DTMF-S].
➥ Lights red while transmitting.
➥ Lights green while the one-touch PTT function is in use.
y NULL SWITCH [B]
No function.
u FUNCTION SWITCHES [F-1]/[F-2] (p. 57)
Assign your desired key function from the front panel
switches.
• Default settings are [LOW] for [F-1] ([DUP] when pushed and
held) and [TONE] for [F-2] ([T-SCAN] when pushed and held).
i FUNCTION INDICATOR
➥ Lights orange while [FUNC] is activated—indicates the
secondary function of switches can be accessed.
➥ Lights green when [DTMF-S] is activated—DTMF sig-
nals can be transmitted with the keypad.
o KEYPAD
Used for controlling the transceiver, transmitting DTMF sig-
nals, etc. See the following 2 pages for details.
*
A different microphone
may be supplied depend-
ing on transceiver ver-
