28
6
MEMORY OPERATION

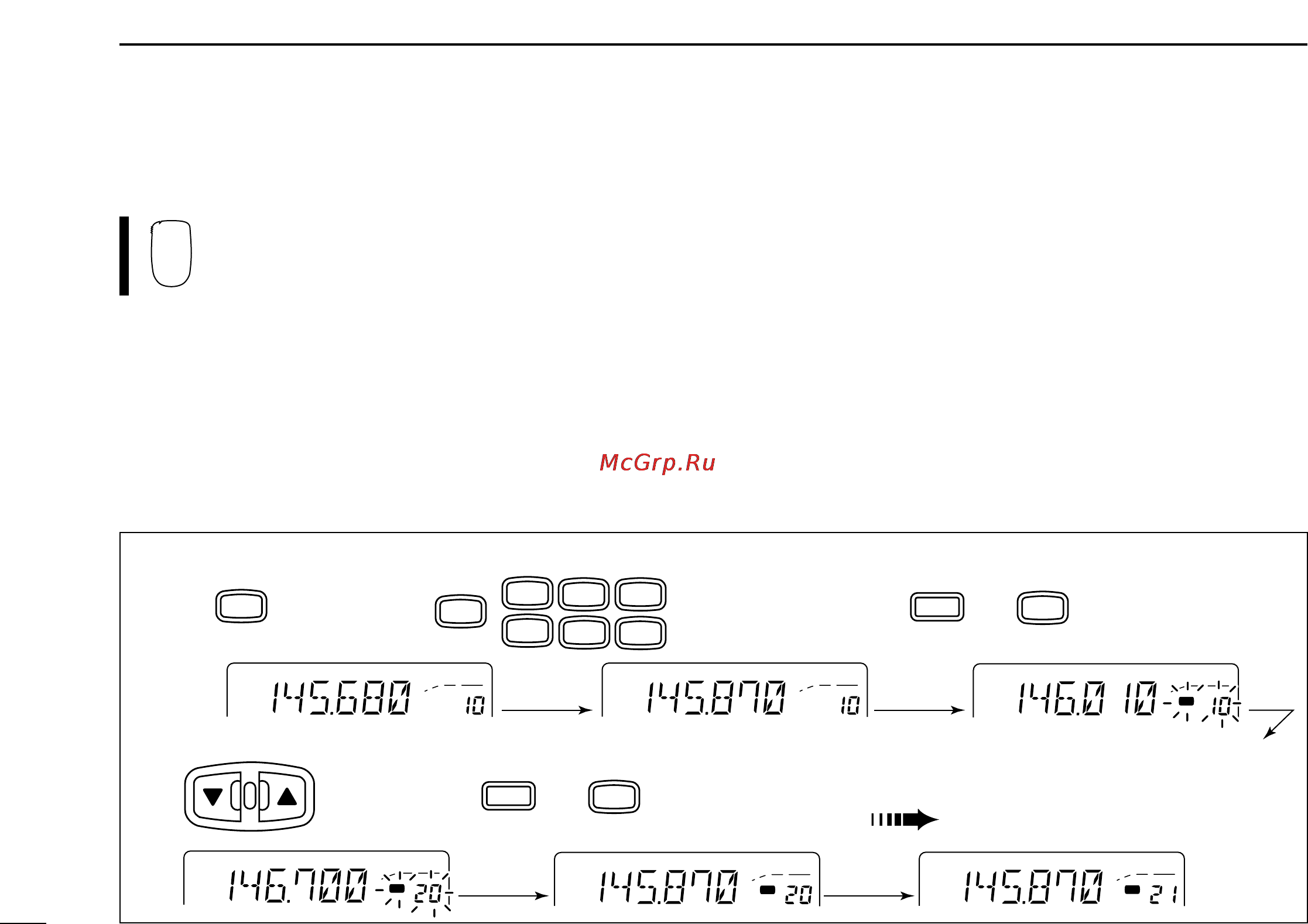

[EXAMPLE]: Programming 145.870 MHz into memory channel 20 via the microphone.
■ Programming a memory channel via the microphone
The microphone can also be used to program
memory channels.
Ä Set the desired frequency in VFO mode:
➥ Push [VFO] to select VFO mode.
➥ Set the frequency using the keypad.
➥ Set other data (e.g. offset frequency, duplex direction,
subaudible tone encoder ON/OFF and its frequency), if
necessary.
Å Push [FUNC], then [EMW] momentarily.
Ç Select the memory channel to be programmed.
➥ Push [Y] or [Z] to select the memory channel (direct nu-
meral input cannot be used).
É Push [FUNC] then [EMW] for 1 sec. to program.
➥ 3 beeps may sound and the VFO contents (including the
subaudible tone frequency, etc.) are programmed.
➥ Memory channel number advances when continuing to
push [MW] after programming.
MW
Push Push then
momentarily
PushPush for 1 sec. and
continue pushing
VFO
8
DUP+
7
DUP
5
MID
0
1
MONI
4
HIGH
C
ENT
MW
FUNC
A
CLR
then
MW
FUNC A
CLR
9
5
1
9
5
1
9
5
1
M
5
1
M
X
9
5
1
M
9
5
1
M
9
5
1
