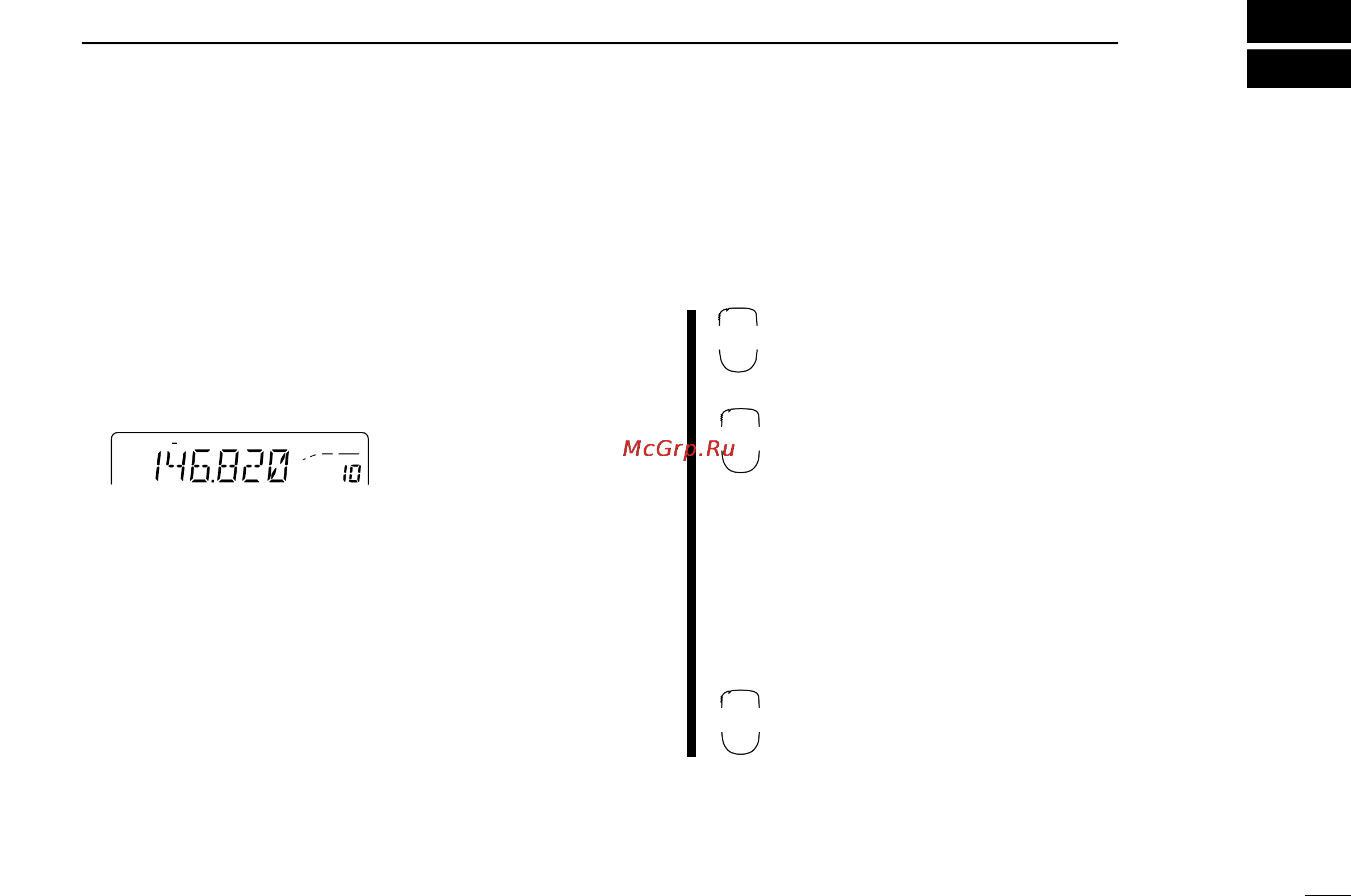

Icom IC-2100H [25/72] Repeater operation
![Icom IC-2100H [25/72] Repeater operation](/views2/1074419/page25/bg19.png)
21
5
REPEATER OPERATION
■ Accessing a repeater
➀ Set the receive frequency (repeater output frequency).
(pgs. 15–17)
➁ Push and hold [(LOW)DUP] for 1 sec., one or more times,
to select minus duplex or plus duplex.
•“DUP –” or “DUP” appears to indicate the transmit frequency for
minus shift or plus shift, respectively.
• When the auto repeater function is turned ON (available for the
USA version only), steps ➁ and ➂ are not necessary. (p. 25)
➂ Push [TONE] one or more times to turn ON the subaudi-
ble tone encoder, according to repeater requirements.
• Refer to p. 23 for tone frequency settings.
• When the repeater requires a different tone system, see the next
page.
➃ Push and hold [PTT] to transmit.
• The displayed frequency automatically changes to the transmit
frequency (repeater input frequency).
• The operating condition is automatically programmed into a
scratch pad memory. See p. 34 for details.
• If “OFF” appears, confirm that the offset frequency (p. 34) is set
correctly.
➄ Release [PTT] to receive.
➅ Push [MONI] to check whether the other station’s transmit
signal can be received directly.
➆ To return to simplex operation, push [(LOW)DUP] for 1 sec.,
once or twice, to clear the “DUP” indicator.
➇ To turn OFF the subaudible tone encoder, push [TONE]
one or more times until no tone indicators appear.
Ä Set the receive frequency (repeater output fre-
quency). (p. 15)
Å Push [➆DUP–] to select – duplex; push
[➇DUP+] for + duplex.
Ç Push [FUNC] then [➆TONE] to turn ON the sub-
audible tone encoder according to repeater re-
quirements.
• Refer to p. 23 for tone frequency setting.
• When the repeater requires a different tone system,
see next page.
É Push and hold [PTT] to transmit.
Ñ Push and hold [➀MONI] to check whether the
other station’s signal can be received directly.
Ö Release [PTT] to receive.
Ü To return to simplex operation, push [➈SIMP].
á To turn OFF the subaudible tone encoder, push
[FUNC], then [GT-OFF].
DUP
9
5
1
DUP–
7
DUP+
8
SIMP
9
