49
13
WIRELESS OPERATION
■ Connection
Wireless remote control is available when the following op-
tions are used.
➧ HM-90
WIRELESS MICROPHONE
➧ EX-1759
INFRARED RECEIVER
The BC-96
MICROPHONE HOLDER
is additionally recommended
for use with the HM-90, since the HM-90’s internal battery re-
quires charging.

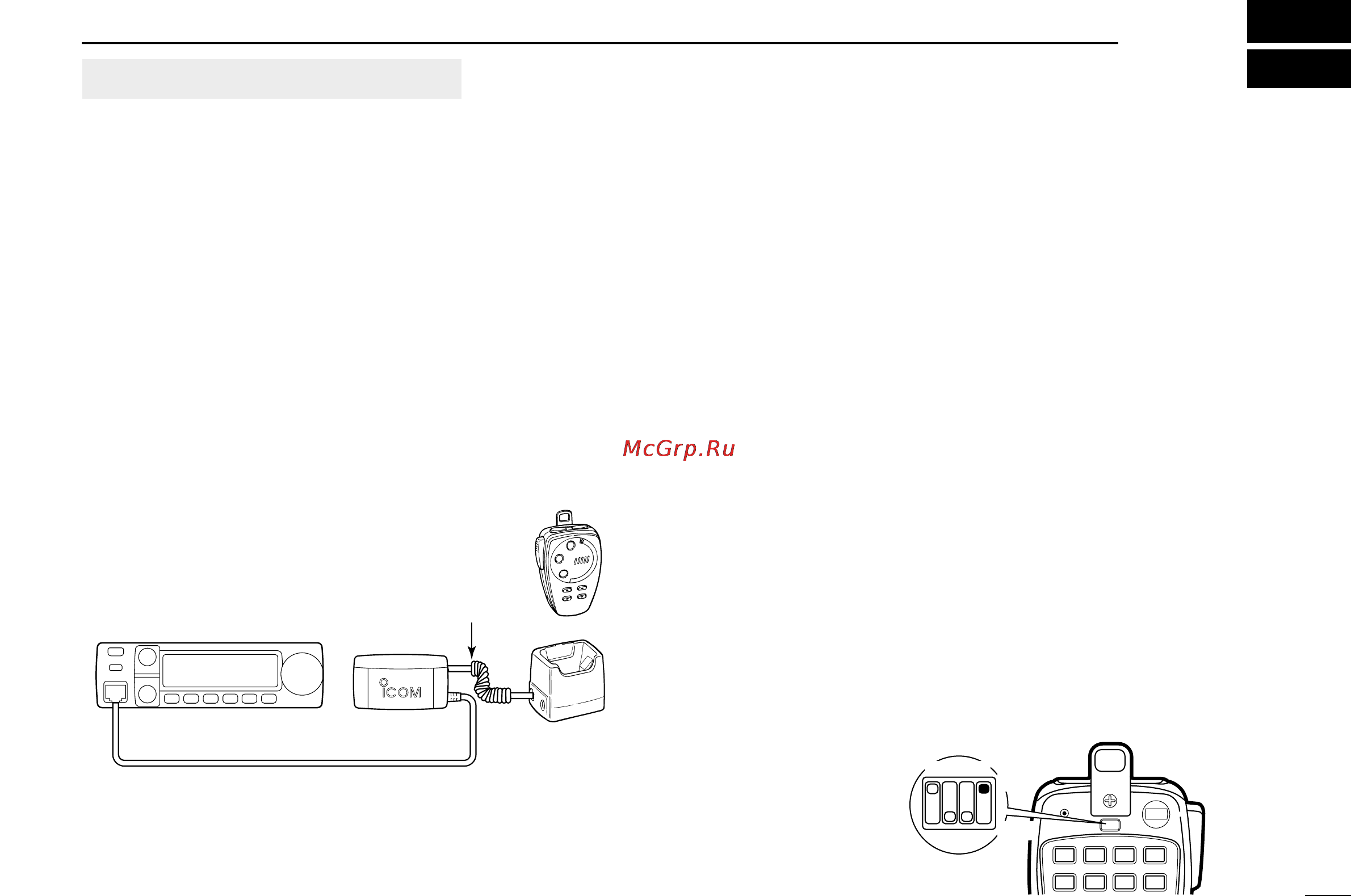

D Recommended connection
■ HM-90
WIRELESS MICROPHONE
The HM-90’s internal battery should be charged when the mi-
crophone is not being held.
Charging period: 1.5 hr. with timer
(or 8 hr. when battery is exhausted)
Operating period: 12 hr. (operation:standby=1:4)
D Charging method
Choose one of the following methods:
➥ Connect the cable from the HM-90 to the EX-1759.
➥ Connect the BC-96 and EX-1759; then put the HM-90 into
the BC-96 (refer to the diagram at left).
➥ Place the HM-90 into the BC-96 (with no connection to the
EX-1759).
• Use the CP-13/L or OPC-288/L to connect the BC-96 to a ciga-
rette lighter socket or a DC power supply, respectively.
D Turning the wireless remote ON/OFF
When you use the HM-90 as a wired microphone, the wire-
less remote control circuit can be turned OFF.
IC-2100H EX-1759
BC-96
Use the
microphone
cable
HM-90
optional EX-1759 and HM-90
LOCK
AFC AFC-OFF PTT-M MW
PGR
CALL
123A
456B
MR VFO CLR
C-SQL DTMF D-OFF
HIGH MID LOW SET
The diagram shows that
the wireless remote con-
trol function is turned
ON.
Dip switch
1 2 3 4
ON
OFF
