51
13
WIRELESS OPERATION

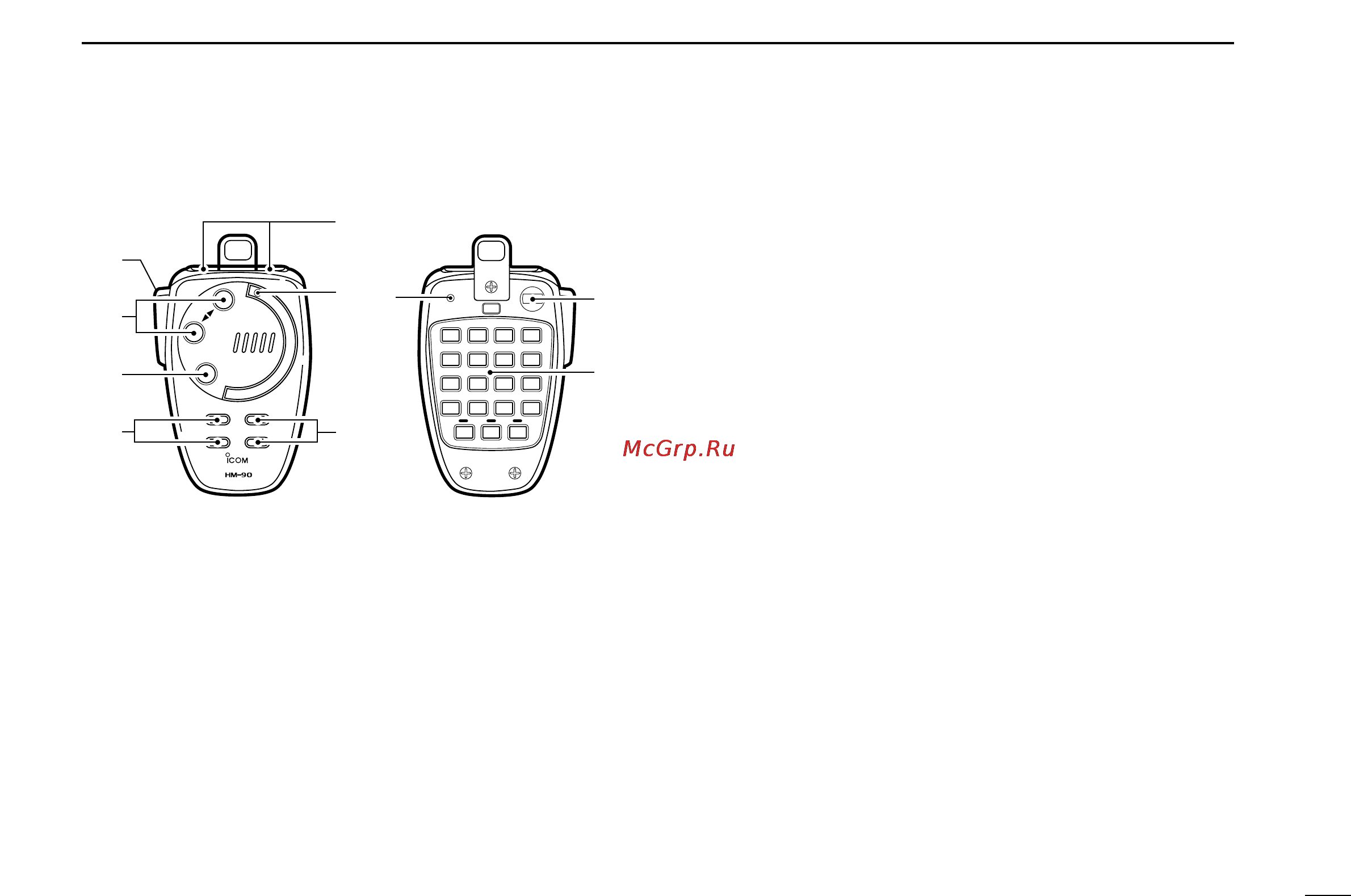

■ HM-90 switches
q PTT SWITCH
➥ Push and hold to transmit; release to receive.
➥ Toggles between transmitting and receiving while the
one-touch PTT function is in use.
w BAND SWITCHES [BAND SELECT Y,Z]
No function.
e MONITOR SWITCH [MONI]
Toggles between opening and closing the squelch.
r SQUELCH LEVEL UP/DOWN SWITCHES
[YSQL], [ZSQL]
No function.
BAND
SELECT
MONI
REMOTE CONTROL MICROPHONE
VOLSQL
LOCK
JAPAN
AFC AFC-OFF PTT-M MW
PGR
CALL
123A
456B
M
0# D
MR VFO CLR
C-SQL DTMF D-OFF
SCAN
MONI
FUNC
DTMF
KEY
DTMF
MEMO
MUTE SQL ENT
789C
DUP– DUP
+
SIMP SPCH
PRIO REAR LOCK DEMO
TONE
HIGH MID LOW SET
T-SQLS T-SQL T-OFF
➓
➊
➋
➌
➍
➎
➏
➐
➑
➒
Front and side panels Rear panel
t FREQUENCY UP/DOWN SWITCHES [UP], [DN]
➥ Push either switch to change the operating frequency,
memory channel, set mode contents, etc.
➥ Push and hold either switch to start scanning.
y ACTIVITY INDICATOR
Lights red while a key is pushed; lights green while the
one-touch PTT function is in use.
u AUDIO VOLUME UP/DOWN SWITCHES
[YVOL], [ZVOL]
No function.
i MODE INDICATOR
Indicates the microphone condition.
• Lights red when [FUNC] is pushed.
• Lights green when [DTMF KEY] is pushed.
• Lights orange when [DTMF MEMO] is pushed.
o LOCK SWITCH [LOCK]
Locks all switches and keys on the microphone except for
the PTT switch.
!0 KEYPAD
Used for controlling the transceiver, transmitting a DTMF
memory channel, etc.
