25
5
REPEATER OPERATION
■ Auto repeater
(USA version)
The USA version automatically activates the repeater settings
(DUP or – DUP and tone encoder ON/OFF) when the operat-
ing frequency falls within the general repeater output fre-
quency range and deactivates them when outside of the
range.
D Setting the auto repeater function ON/OFF
➀ Push [PWR] to turn power OFF.
➁ While pushing [SET] (far left switch), turn power ON to
enter initial set mode.

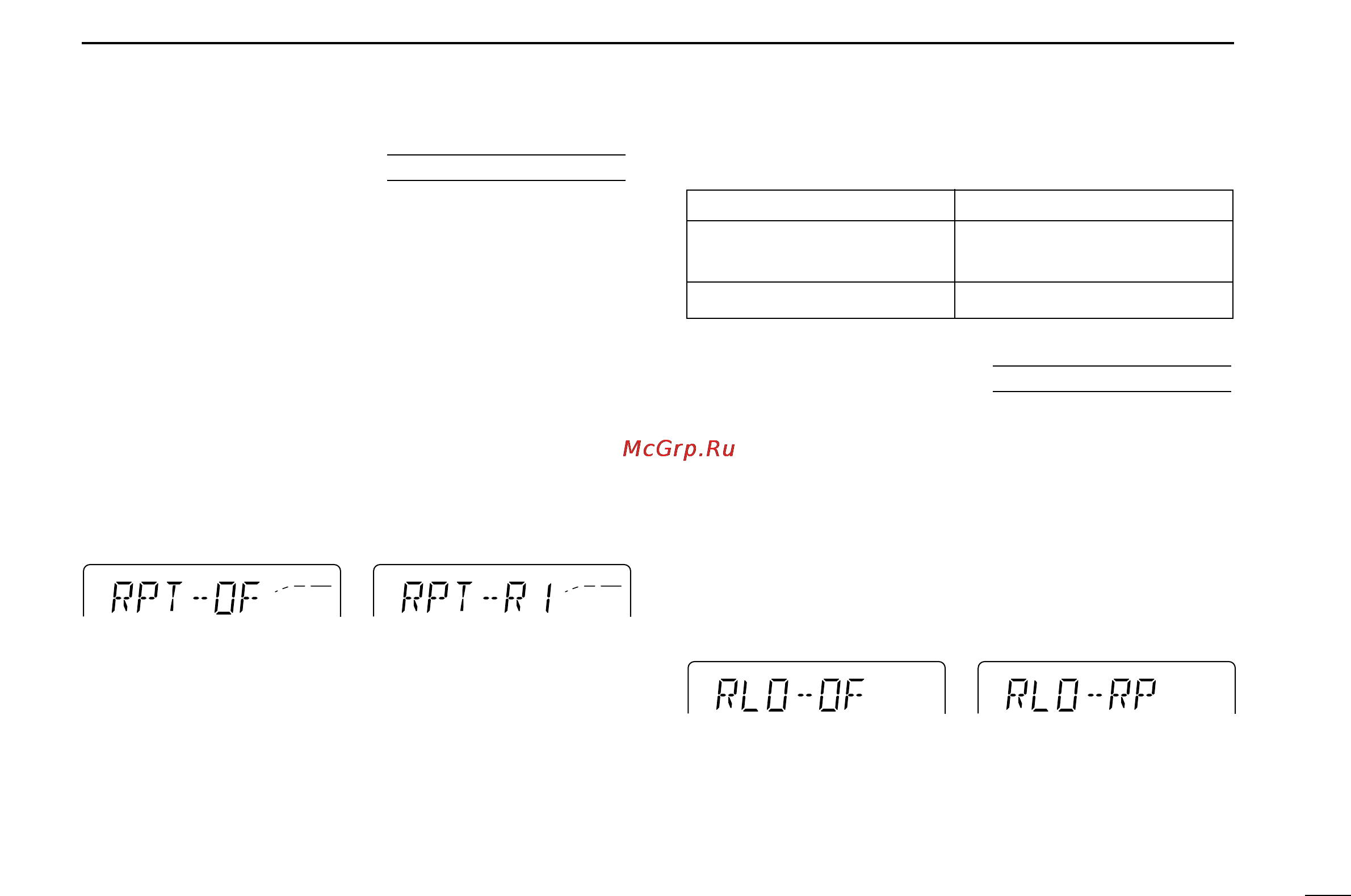

➂ Push [SET] one or more times until the “RPt” display ap-
pears as shown below.
➃ Rotate the tuning dial to turn the auto repeater function to
“R1,” “R2” or OFF.
•“R1”: auto repeater is ON, tone encoder is OFF.
•“R2”: auto repeater is ON, tone encoder is ON.
➄ Push [PWR] to exit initial set mode.
USING
INITIAL SET MODE
9
5
1
Auto repeater function is
turned OFF
X
9
5
1
Auto repeater function is ON,
tone encoder is OFF
D Frequency range and offset direction
■
Repeater lockout
This function helps prevent interference to other stations by
inhibiting your transmission when a signal is received. The
transceiver has two inhibiting conditions, repeater and busy.
➀ Push [PWR] to turn power OFF.
➁ While pushing [SET] (far left switch), turn power ON to
enter initial set mode.
➂ Push [SET] one or more times until the “RLO” display ap-
pears as shown below.
➃ Rotate the tuning dial to turn the repeater lockout function
to “RP,” “BU” or OFF.
•“RP”: Transmit is inhibited when the tone squelch is closed.
•“BU”: Transmit is inhibited when a signal is received.
➄ Push [PWR] to exit initial set mode.
FREQUENCY RANGE DUPLEX DIRECTION
145.200–145.495 MHz
“DUP –” appears
146.610–146.995 MHz
147.000–147.395 MHz “DUP” appears
USING
INITIAL SET MODE
Repeater lockout function is
turned OFF
Transmit is inhibited when the
tone squelch is closed
X
