Icom IC-2100H [27/72] I subaudible tone
![Icom IC-2100H [27/72] I subaudible tone](/views2/1074419/page27/bg1b.png)
23
5
REPEATER OPERATION
■ Subaudible tone
(encoder function)
➀ Select the mode/channel you wish to set the subaudible
tone encoder frequency to, such as VFO mode or mem-
ory/call channel.
➁ Push [SET] one or more times until “T” and “rT” appears
for repeater use; or until “T SQL” and “CT” appears for tone
squelch or pocket beep use.
• Push [MONI] to reverse the order of selection.
• Cancel the DTMF memory encoder function in advance, if nec-
essary. (p. 45)
➂ Rotate the tuning dial to select and set the desired fre-
quency.
➃ Push [V/MHz] to exit set mode.
☞ NOTE: The subaudible tone encoder frequency can be set
in a memory channel temporarily. However, the set con-
tents are cleared once the memory/call mode is selected.
To store the tone frequency permanently, overwrite the
channel information.

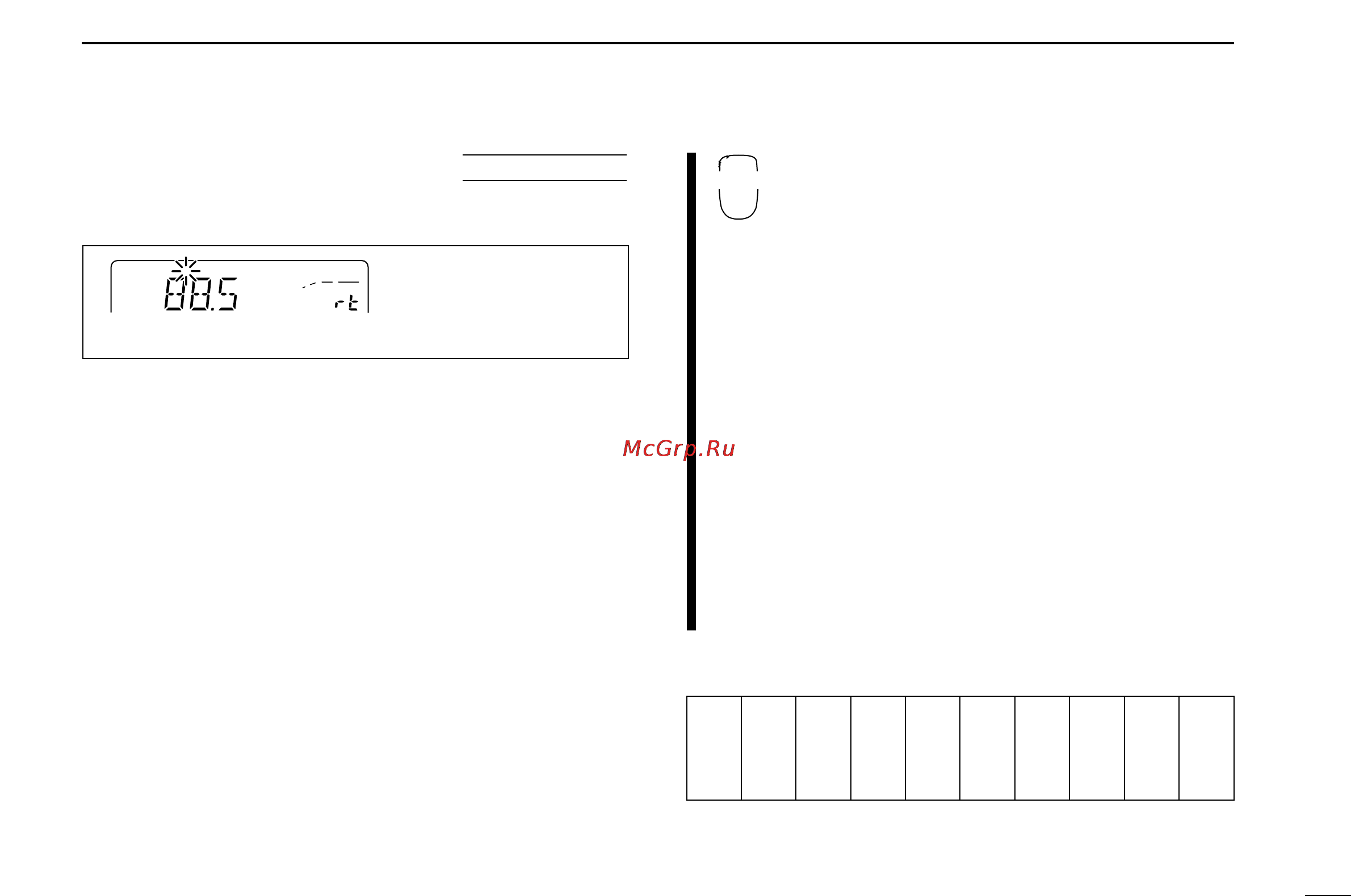

The display shows that an
88.5 Hz subaudible tone
frequency is set for re-
peater use.
T
9
5
1
USING
SET MODE
Ä Set the mode/channel you wish to set the sub-
audible tone encoder frequency to, such as
VFO mode, memory/call channel or scratch pad
memory.
• The subaudible tone frequency is independently pro-
grammed into each mode or channel.
Å Push [FSET] one or more times until “T” and
“rT” appears for repeater use; or until “T SQL”
and “CT” appears for tone squelch or pocket
beep use.
• Pushing [GENT] reverses the order of selection.
• Cancel the DTMF memory encoder function in ad-
vance, if necessary. (p. 45)
Ç Push [Y] or [Z] to select and set the desired
frequency.
• Pushing and holding [Y] or [Z] changes the fre-
quency continuously.
É Push [ECLR] to exit set mode.
• Subaudible tone frequency list (unit: Hz)
SET
B
67.0
69.3
71.9
74.4
77.0
79.7
82.5
85.4
88.5
91.5
94.8
97.4
100.0
103.5
107.2
110.9
114.8
118.8
123.0
127.3
131.8
136.5
141.3
146.2
151.4
156.7
159.8
162.2
165.5
167.9
171.3
173.8
177.3
179.9
183.5
186.2
189.9
192.8
196.6
199.5
203.5
206.5
210.7
218.1
225.7
229.1
233.6
241.8
250.3
254.1
