16
3
SETTING A FREQUENCY
Ä Push [VFO] to select VFO mode, if necessary.
Å Push [FSET] one or more times until “TS” ap-
pears as shown below left.
• Push [ENT] to reverse the order of selection.
• Cancel the DTMF memory function in advance, if
necessary. (p. 44)
Ç Push [Y] or [Z] to select the tuning step.
É Push [CLR] to exit set mode.
■
Tuning step selection
Tuning steps are the minimum frequency change increments
when you rotate the tuning dial or push the [Y]/[Z] keys on
the microphone. The following tuning steps are available:
• 5 kHz • 10 kHz • 12.5 kHz • 15 kHz
• 20 kHz • 25 kHz • 30 kHz • 50 kHz
☞ NOTE: For convenience, select a tuning step that matches
the frequency intervals of repeaters in your area.
➀ Push [V/MHz] to select VFO mode, if necessary.
➁ Push [SET] one or more times until “TS” appears as shown
below.
• Pushing [MONI] reverses the order of selection.
• Cancel the DTMF memory function in advance, if necessary.
➂ Rotate the tuning dial to select the tuning step.
➃ Push [V/MHz] to exit set mode.
USING
SET MODE
9
5
1
9
5
1

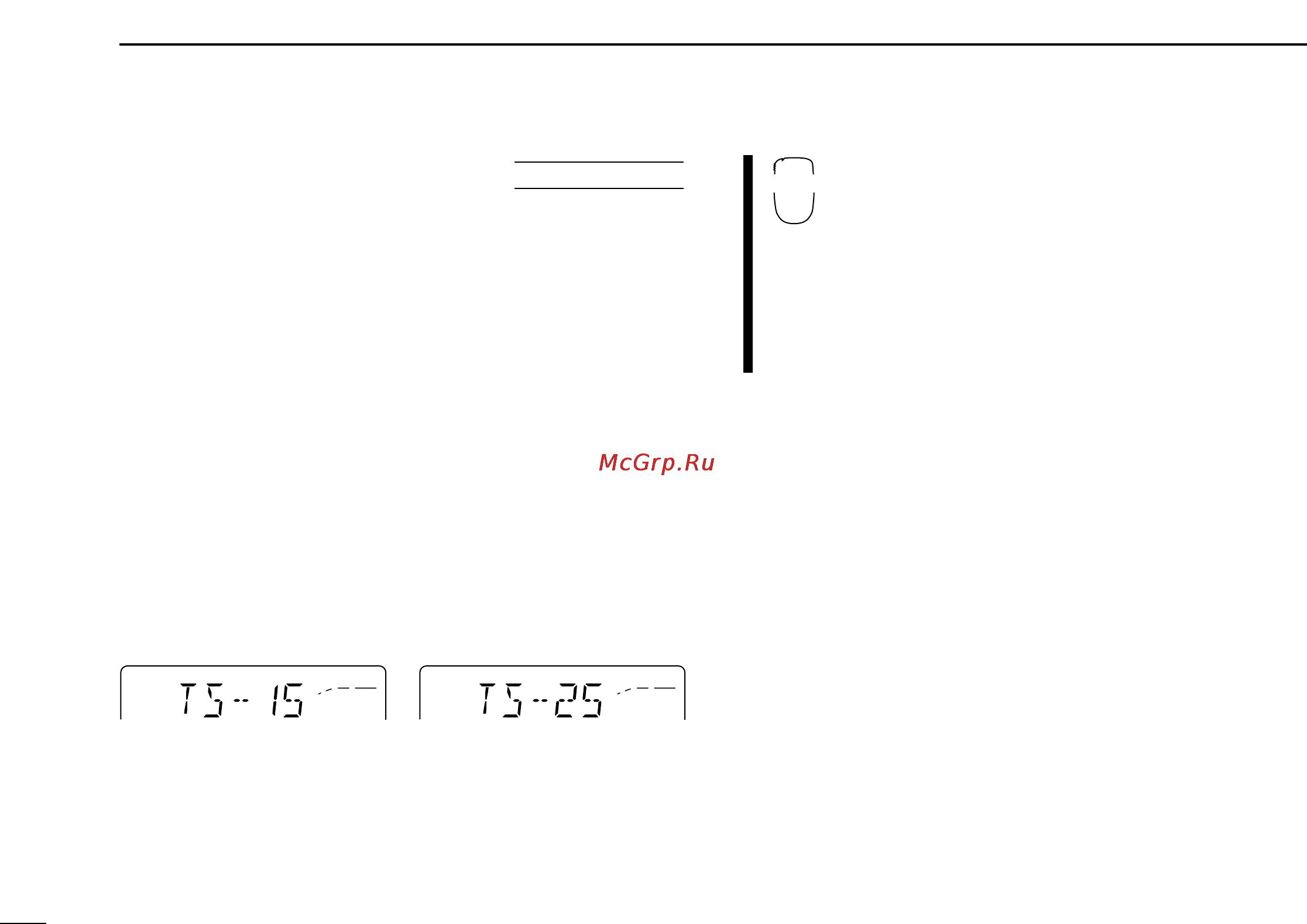

15 kHz tuning step 25 kHz tuning step
SET
B
