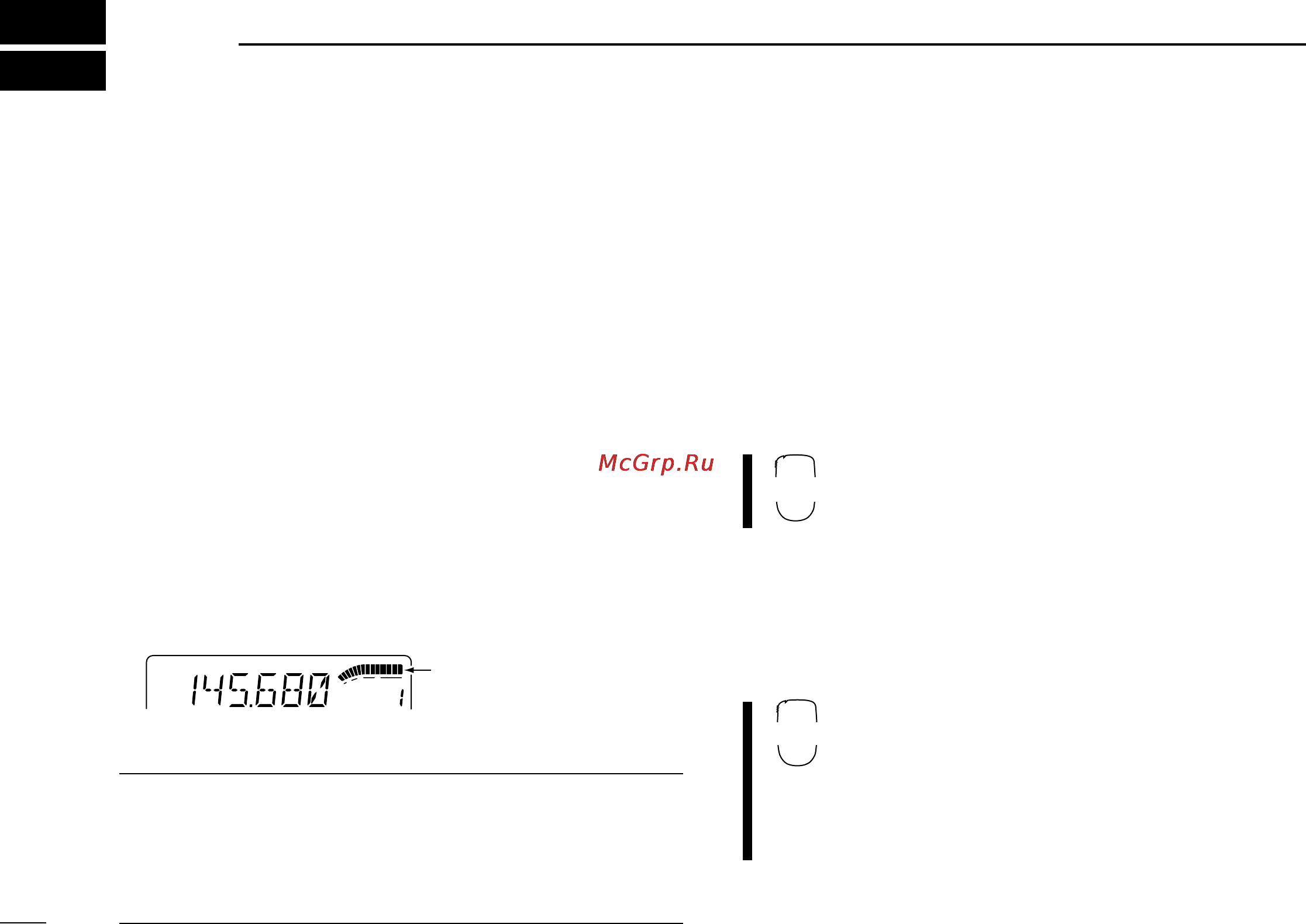

Icom IC-2100H [22/72] Basic operation
![Icom IC-2100H [22/72] Basic operation](/views2/1074419/page22/bg16.png)
18
4
BASIC OPERATION
■ Receiving
➀ Push [PWR] for 1 sec. to turn power ON.
➁ Set the audio level.
➥ Push [MONI] to open the squelch.
➥ Rotate the [VOL] control to adjust the audio output level.
➥ Push [MONI] again to close the squelch.
➂ Set the squelch level.
➥ Rotate [SQL] fully counterclockwise in advance.
➥ Rotate [SQL] clockwise until the noise just disappears.
➥ When interference is received, rotate [SQL] clockwise
again for attenuator operation.
➃ Set the operating frequency. (p. 15)
➄ When receiving a signal on the set frequency, squelch
opens and the transceiver emits audio.
•“BUSY” appears and the S/RF indicator shows the relative signal
strength for the received signal.
✔CONVENIENT
RF attenuator: The transceiver has an RF attenuator related
to the [SQL] setting. The attenuator is automatically activated
when [SQL] is rotated clockwise past the 12 o’clock position.
Approx. 10 dB attenuation is obtained at full rotation.
BUSY
9
5
1
Appears when receiving
■ Monitor function
This function is used to listen to weak signals without disturb-
ing the squelch setting or to open the squelch manually even
when mute functions such as the tone squelch are in use.
Push [MONI] to open the squelch.
• Push [MONI] again to cancel the function.
• While duplex is ON for repeater operation, the transmitting fre-
quency can be monitored with [MONI].
Push [➀MONI] to open the squelch.
• Push [➀MONI] again to cancel the function.
■ Audio mute function
This function temporarily mutes the audio without disturbing
the volume setting.
Ä Push [FUNC] then [HMUTE] to mute audio sig-
nals.
•“MUTE” appears.
Å Push [ECLR] (or any other key) to cancel the
function.
•“MUTE” disappears.
MONI
➀
MUTE
H
