38
9
SCAN OPERATION
■ Programming scan edges
Scan edges can be programmed in the same manner as
memory channels. Scan edges are programmed into scan
edges, 1A/1b to 3A/3b, in memory channels.
➀ Set the desired frequency in VFO mode:
➥ Set the frequency using the tuning dial.
➥ Set other data (e.g. offset frequency, etc.) if desired.
➁ Push [S.MW] momentarily.
•“!” and the memory channel number flash.
➂ Rotate the tuning dial to select a scan edge channel.
➃ Push [(S.MW)MW] for 1 sec. to program.
• 3 beeps may sound and the frequency is programmed.
• Scan edge 1b is automatically selected when continuing to push
[(S.MW)MW] after programming.
➄ To program a frequency for the other pair of scan edges,
1b to 3b, repeat steps ➂ and ➃.
• If the same frequency is programmed into a pair of scan edges,
programmed scan will not function.

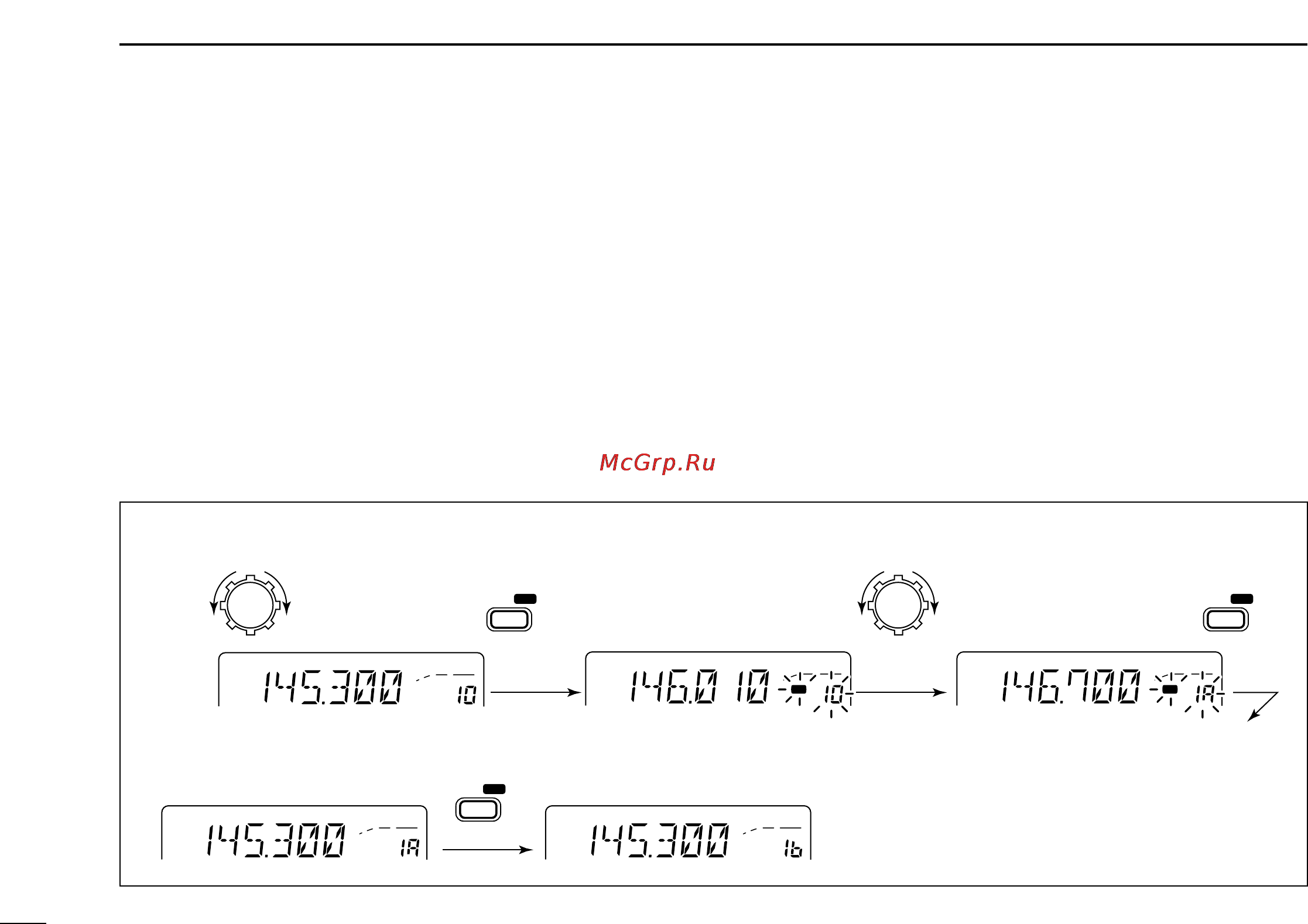

[EXAMPLE]: Programming 145.30 MHz and 145.80 MHz into scan edges 1A and 1b, respectively.
M
9
5
1
M
9
5
1
Rotate
Rotate
Push
momentarily
and hold
continue pushing
Program 1b in the same manner.
Push
X
9
5
1
S.MW
MW
S.MW
MW
S.MW
MW
9
5
1
9
5
1
