DTMF MEMORY ENCODER
■ Programming a DTMF code
DTMF codes are used for autopatching, accessing repeaters,
controlling other equipment, etc. The transceiver has 14
DTMF memory channels (d0–d9, dA–dd) for storage of often-
used DTMF codes of up to 16 digits.
Ä Push [FUNC] then [➅DTMF] to turn the DTMF
memory function ON.
•“d” appears in place of the 100 MHz digit.
Å Push [FSET] to enter the programming condi-
tion.
Ç Push [Y] or [Z] to select the desired channel.
DTMF
6

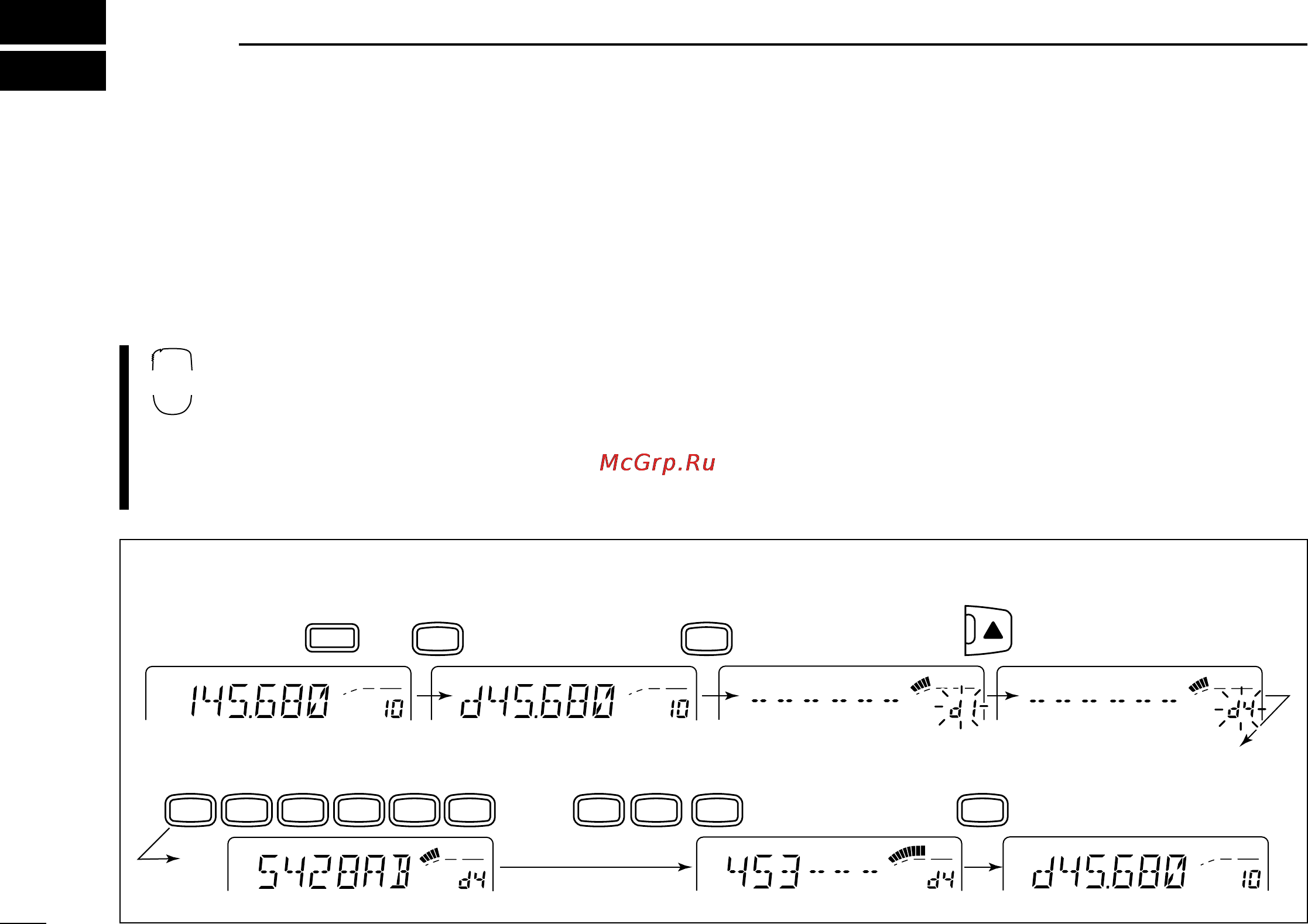

[EXAMPLE]: Programming “5428AB453” into DTMF memory channel “d4.”
É Push the desired digit keys.
• When the first digit is input, previous memory contents are
cleared automatically.
•“E” stands for “M” and “F” stands for “# .”
• Push [Y] and repeat this step when making a mistake.
• The S/RF indicator shows the digit group. The indication in-
creases every 6 digits.
Ñ Push [VFO] to exit the programming condition.
• The [ECLR] key cannot be used to exit. If pushed, “A” is input
and the previously programmed data is erased. Reprogram in
such a case.
X
9
5
1
9
5
1
Push
8
DUP+
5
MID
5
MID
4
HIGH
4
HIGH
A
CLR
then
FUNC
DTMF
6
LOW
B
SET
B
SET
2
SCAN
3
PRIO
VFO
9
5
1
X
9
5
1
9
5
1
9
5
1
9
5
1
