31
6
MEMORY OPERATION
■ Alphanumeric display
Each memory channel and the call channel can be pro-
grammed with an alphanumeric name such as a repeater
name, club name, etc., for easy recognition. Names can be
a maximum of 6 characters—see the table below for avail-
able characters.
☞ NOTE: Scan edge channels and scratch pad memories
CANNOT be programmed with alphanumeric names.
➀ Push [M/CALL] to select memory mode (or call mode) if
necessary.
➁ Rotate the tuning dial to select the desired memory chan-
nel.
12345678910
ABCDDEFGHI
JKLMNOPQRS
TUVWXYZ+– M
/=_<>(),:
space
➂ Push [(MONI)
ANM] for 2 sec. to select alphanumeric indi-
cation.
•“NONAME” appears when a name has not yet been programmed
into the channel.
➃ Push [SET] to enter programming mode.
• The first character of the name flashes.
➄ Rotate the tuning dial to select the desired character.
• See the table at left for a list of available characters.
➅ Push [SET] to advance to the next character.
• Push [MONI] to select the previous character.
➆ Push [V/MHz] to program the name and exit programming
mode.
➇ Push [(SET)ANM] for 2 sec. to return to frequency indica-
tion if desired.

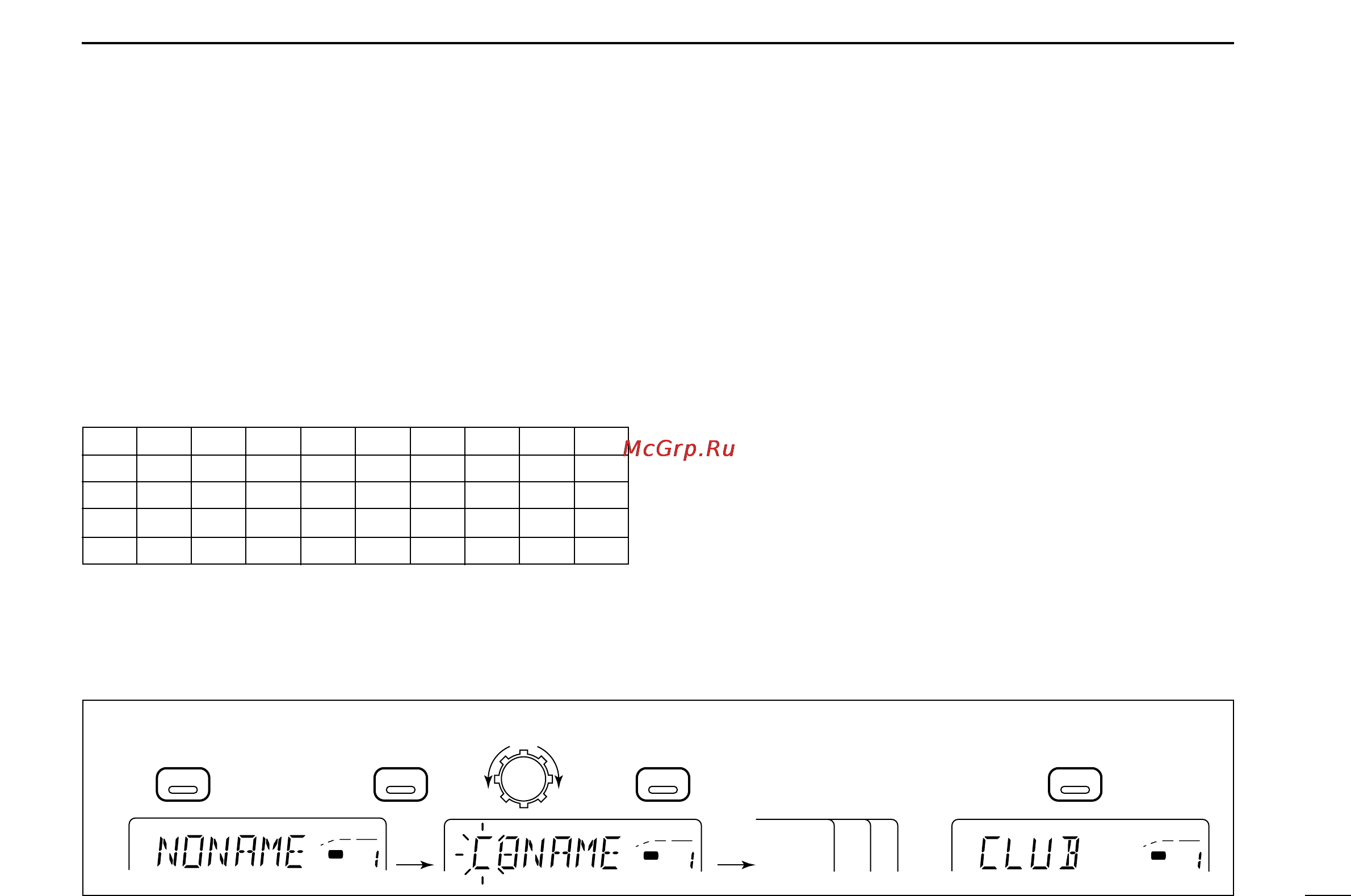

[EXAMPLE]: Programming “CLUB” into memory channel 1.
Push for 1 sec.
[ANM]
Push Repeat previous step until the
desired name is displayed
rotate
[SET]
then
push
[MONI]
Push to program
[V/MHz]
9
5
1
9
5
1
9
5
1
M
M M
