1-34
Setting printing position
Code
[02] O nnnn
Units
0.01 inch or 0.1 mm
Setting
nnnn 4-digit data
Initial value and its set ran
g
e var
y
de
p
endin
g
on the command set.
Inch s
y
stem Metric s
y
stem
Command Set
Initial
value
Minimum
value
Max
value
Initial
value
Minimum
value
Max
value
DMI / DMW 0220 0120 0320 0559 0305 0813
DM4 / DM8 0220 0120 0320 0559 0305 0813
DPP 0110 0010 0210 0279 0025 0533
Function
Specifies the distance between paper sensor and print head. By
changing this value, a physical printing start position can be changed.
Caution
If value less than 0.5 inch (0050) is specified, the initialization value will
be set automatically. With the initialization value set, printing starts from
the bottom of the label. If the command is used after completing
printing, this command setting will not be effective to the first sheet of
the label. From the second sheet of the label, this will be effective.

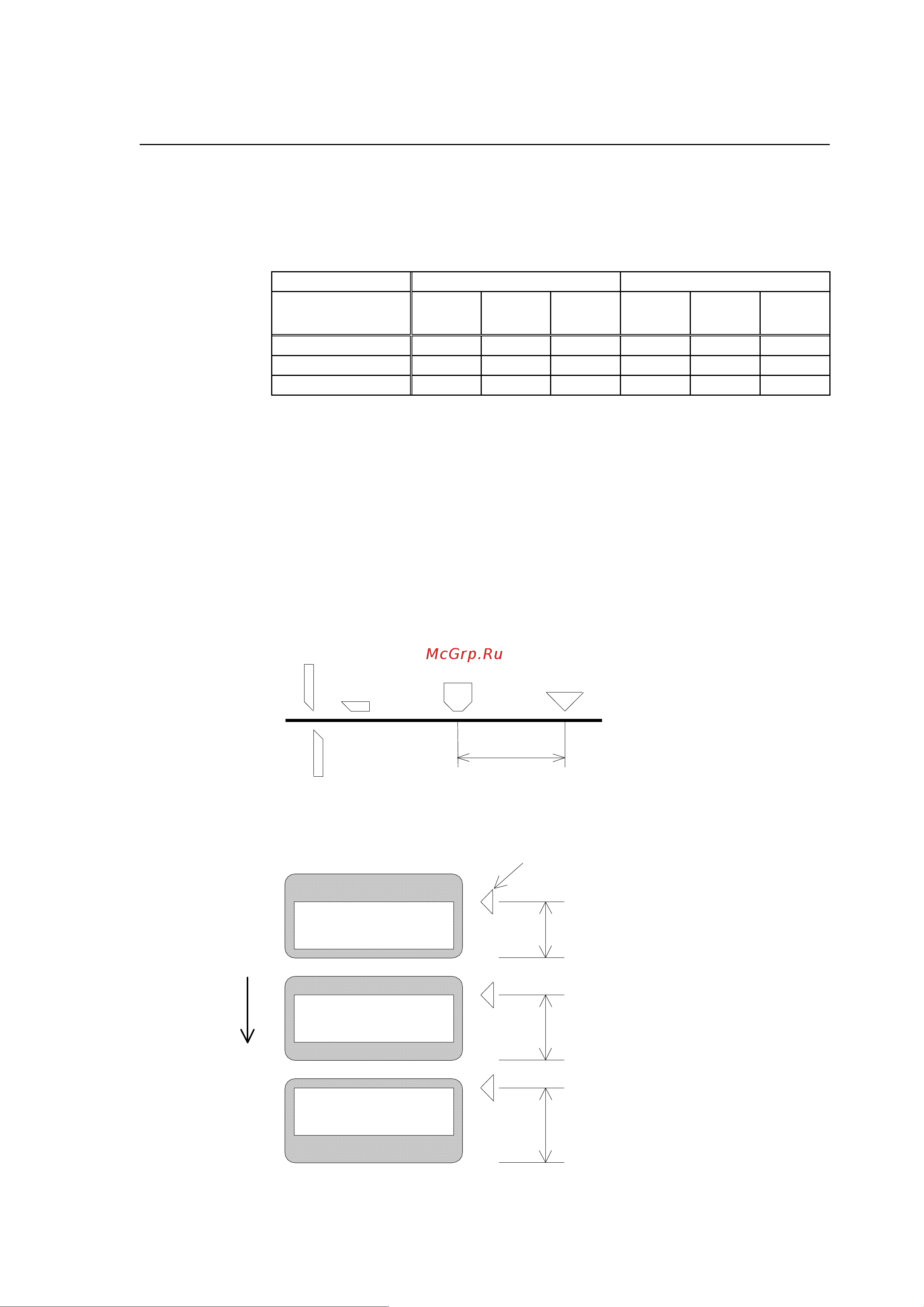

Figure
Cutter
Peeler
Print head Reference point
Onnnn = 1.10 inch
（
initialization value
）
(peeling
）
Direction of feed
Printing area
Onnnn=0080
Reference point
Printed after feedin
g
0.8 inch
from sensor
Printed after feeding 1.10 inch
from sensor
Printed after feeding 1.20 inch
from sensor
Printing area
Onnnn=0120
Onnnn=0110
Printing area
