Citizen CL-E720DT [86/154] Polygon definition

1-85

Polygon definition

Code

1X11, ppp, row, column, P ppp bbbb row, column, row, column

Setting

1X11 1X11 fixed

ppp Dot pattern 000 – 011

row 1st point row address 0000 – 9999

column 1st point column address 0000 – 0398

P Specifies polygon

ppp 001 fixed

bbbb 0001 fixed

row 2nd point row address 0000 – 9999

column 2nd point column address 0000 – 0398

row 3rd point row address 0000 – 9999

column 3rd point column address 0000 – 0398

After this, repeats row and column

Units

0.01 inch (0.1 mm)

Function

Draws polygon with specified point and dots inside with specified

pattern.

Dot pattern

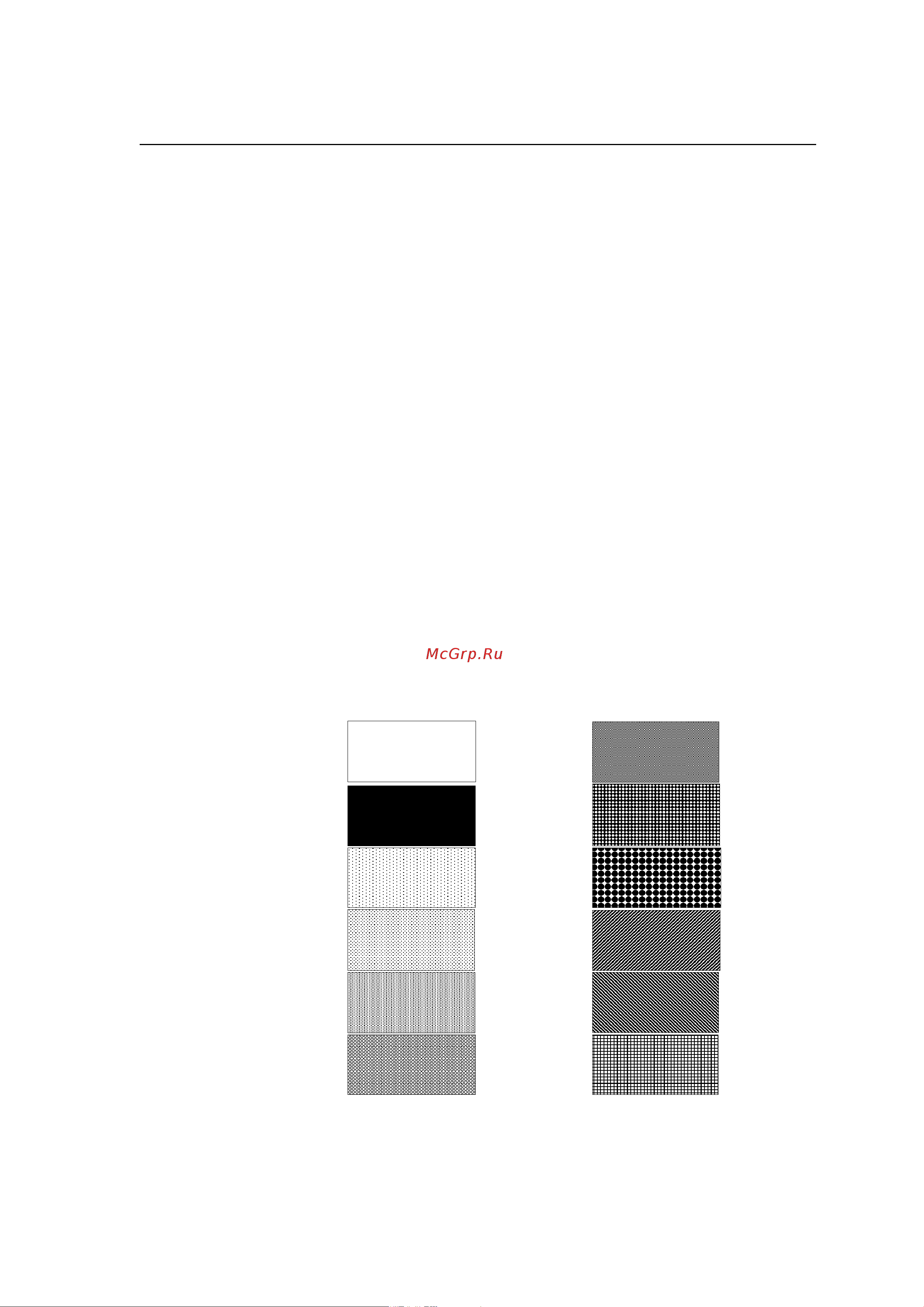

12 dot patterns from 0 – 11 are shown below.

000

(0%)

006

(50%)

001

(100%)

007

(62.5%)

002

(6.25%)

008

(69.14%)

003

(12.5%)

009

(62.5%)

004

(25%)

010

(62.5%)

005

(37.5%)

011

(43.75%)
