Citizen CL-E720DT [62/154] Specifying space between characters

1-61

Specifying space between characters

Code

[1b] P nn Data in [ ] is hex.

Setting

nn Amount of space between characters 00 - 99

Initialization value: 00

Function

Adds specified space between characters to all characters.

Example

Input data below represents that data without specification of space

between characters and data with specification of 10 to space

between characters are set and printed.

Input data

[02] n Sets units to inch

[02] L Starts label format mode

D11 Sets pixel size

190000700500050ABC Sets character data "ABC" with smooth

font 24pt

[1b] P10 Sets 10 for space between characters

190000700800050ABC Sets character data "ABC" with smooth

font 24pt

E Ends label format mode and prints

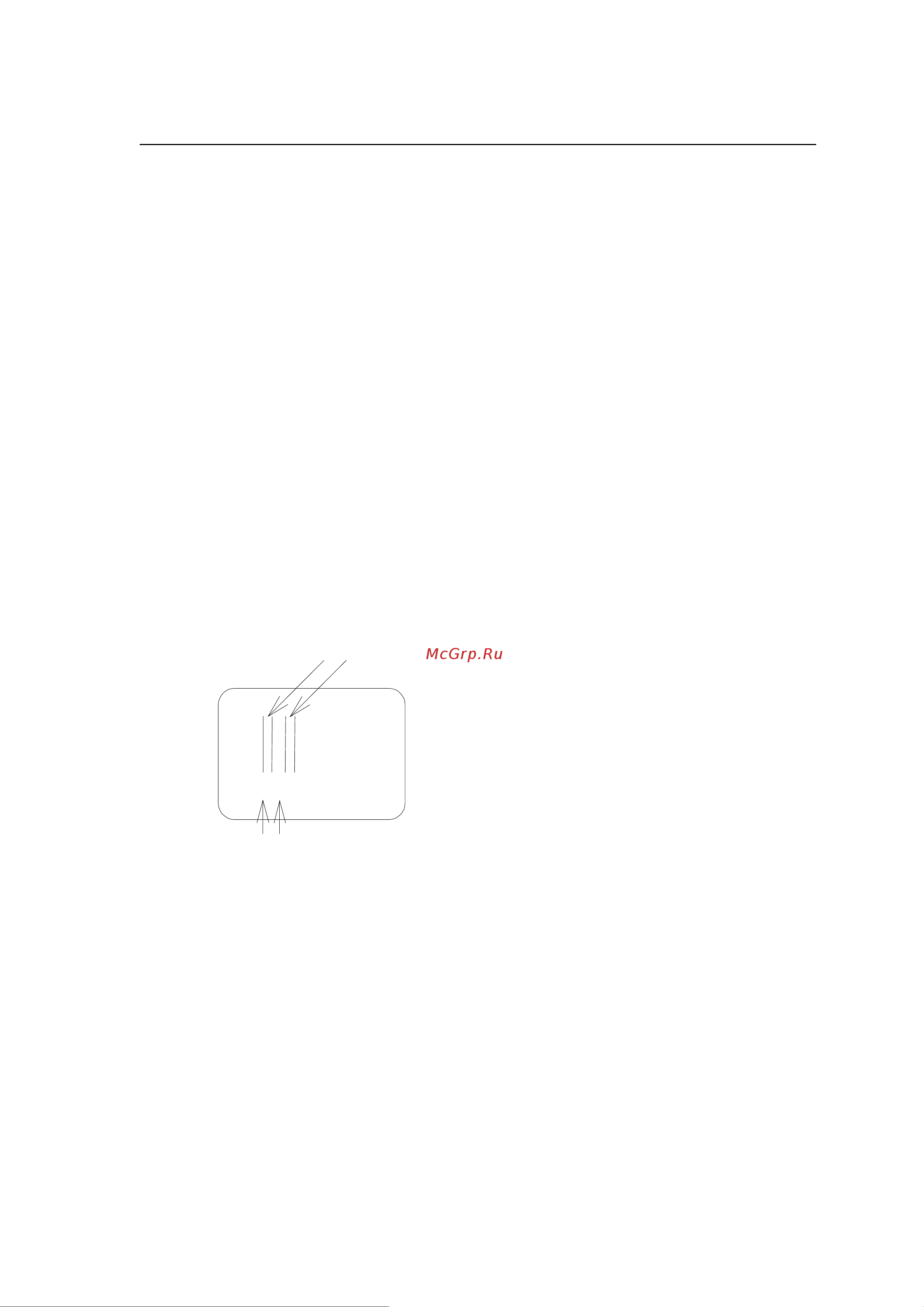

ABC

A B C

Spaces between characters

nn=1

nn=0
