1-63
Setting offset in direction of row
Code
R nnnn
Units
0.01 inch or 0.1 mm
Setting
nnnn 4-digit data Initialization value: 0000
Inch system 0000 - 9999 (0.00 inch - 99.99 inches)
Metric system 0000 - 9999 (0.0 mm - 99.9 mm)
Function
Sets offset value for printing start position in direction of row (paper
top and bottom) to adjust the position of the total printing contents.
Example
Shifts label printing position 1.0 inch (R0100) upwards and prints.
Input data
[02] n Sets units to inch
[02] L Starts label format mode
D11 Sets pixel size
R0100 Sets row offset to 1.0 inch
190000501150090ABC Sets character data "ABC" with
smooth font 14pt
1F3306000500050490123456789 Sets EAN13 bar code for data
"490123456789"
E Ends label format mode and
prints

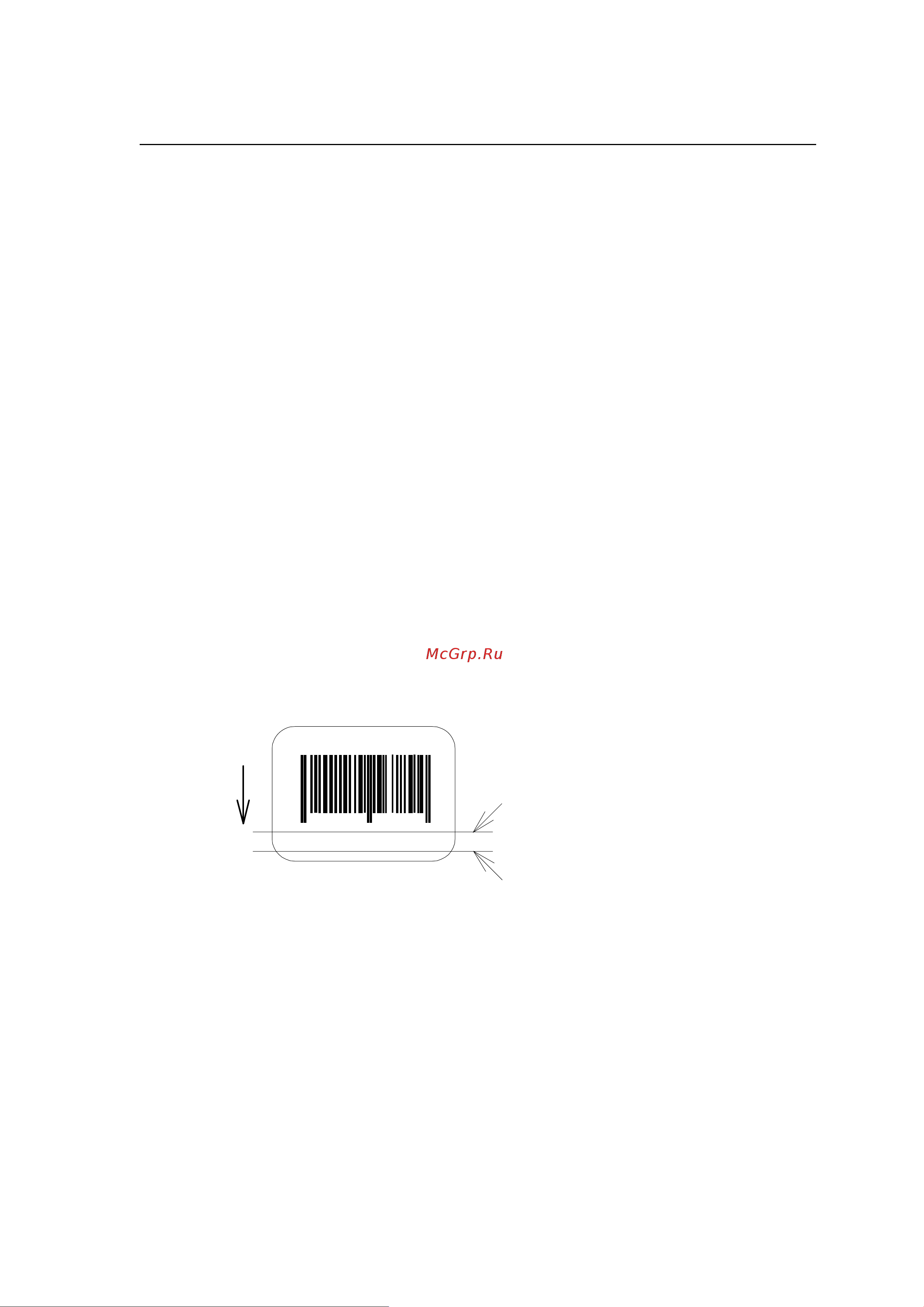

4 901234 567894
Normal printing starting position
Direction
of feed
A
BC
Printing starting position after setting
ff
