Circle definition

Code

1X11, ppp, row, column, C ppp bbbb, radius

Setting

1X11 1X11 fixed

ppp Dot pattern 000 – 011

row Circle center row address 0000 – 9999

column Circle center column address 0000 – 0398

C Specifies circle

ppp 001 fixed

bbbb 0001 fixed

radius Radius 0000 – 0398

Units

0.01 inch

Function

Draws circle with specified center and radius and dots inside with

specified pattern.

Example

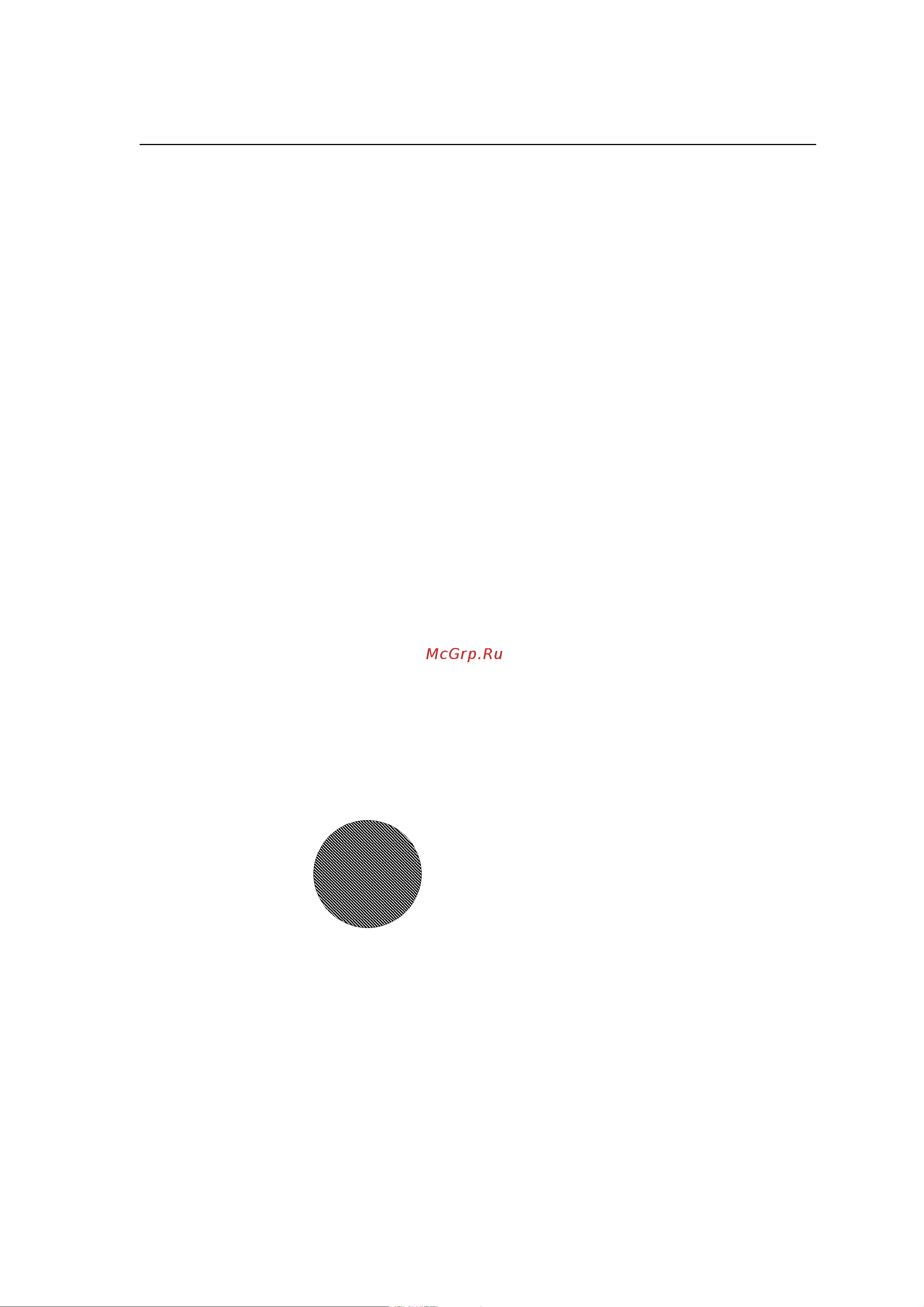

Input data below represents that circle with center of row 0.50

inch/column 0.50 inch and radius of 0.30 inch is drawn and inside is

dotted with pattern 10 (left diagonal lines).

Input data

[02] n Sets units to inch

[02] L Starts label format mode

D11 Sets pixel size

1X11 010 0050 0050 C 001 0001 0030 Sets circle

E Ends label format mode and

prints
