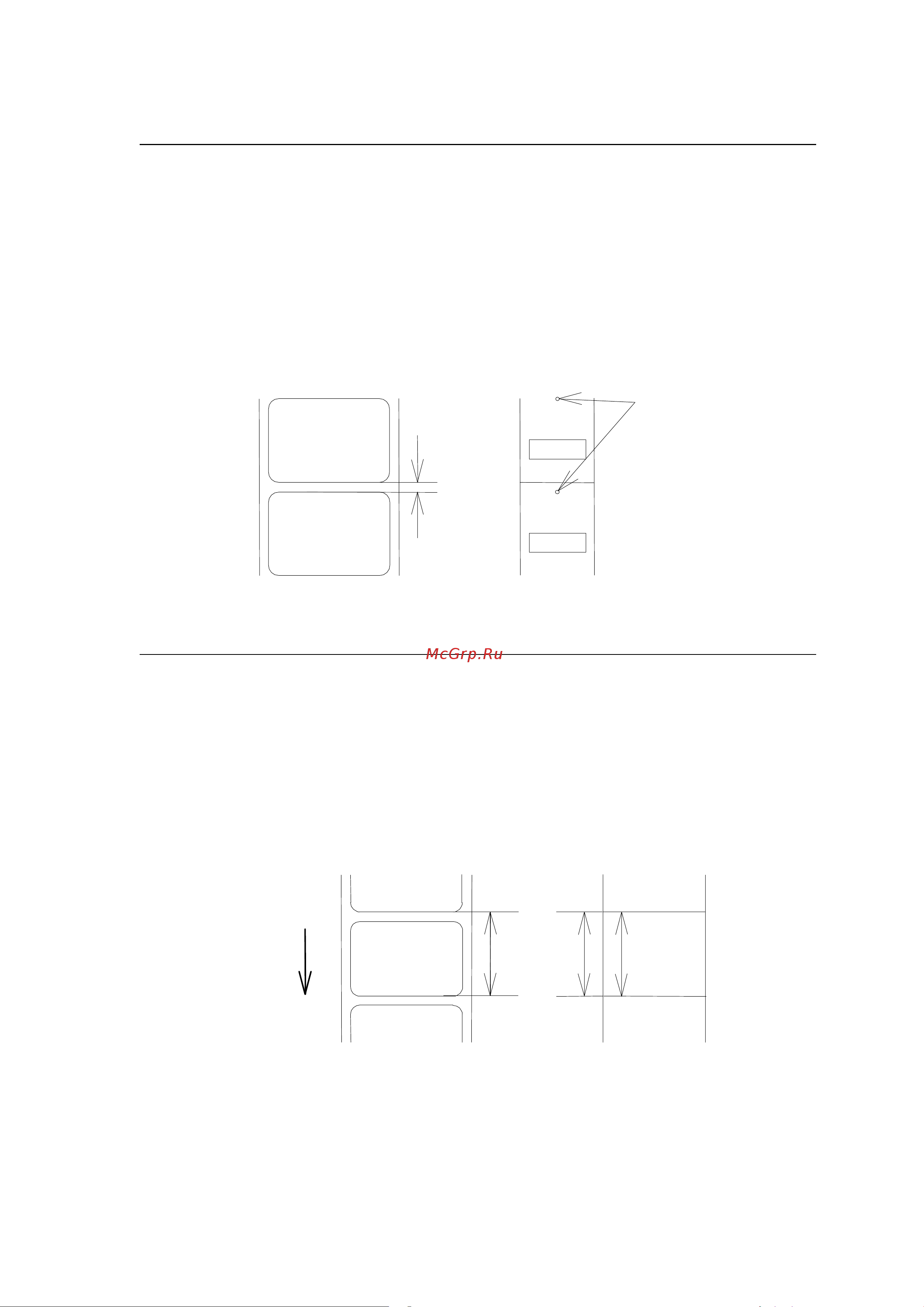

Setting edge sensor selection
Code
[02] e
Function
Changes paper position detection sensor to transparent-type.
Used for detecting paper gap between label papers, die-cut paper,
notch hole for tag paper, etc. This setting is used as default.
Caution
If not detected properly, check the sensor position.
Example
Paper gap between label papers and notch holes for tag paper in Fig
below is detected.
Label paper gap
ABCDEFG
Ｎｏ０００１
ABCDEFG
Ｎｏ０００２
Tag paper
Notch holes
Label one sheet feed
Code
[02] F
Function
Feeds label one sheet. The amount of feed is the length from the
bottom of the label paper to the next bottom of the label paper.
When using continuous paper, feeds paper the length currently set
([02] c nnnn).
Performed in the same way as operated from the Feed key on the
control panel.
Direction of feed
A
mount of feed
Paper length
[02] cnnnn
Label paper
Continuous paper
