1-130
4.6 Sample Printing
The print sample and printing data combining the commands above are as
follows:
[02] m Sets units to metric system
[02] M1500 Max. label length
[02] L Starts label format mode
PK Printing speed
SO Paper feed speed
D11 Sets pixel size
C0000 Offset in direction of column (vertical)
R0000 Offset in direction of row (horizontal)
H10 Printing density (amount of thermal transfer)
1X1100000500050B950900010010 Specifies box field
1X1100008500060L930005 Specifies ruled line field 1
1X1100008550750L005085 Specifies ruled line field 2
1X1100005000060L930005 Specifies ruled line field 3
3a931000800085001234567890123 Specifies bar code field
321100006000930SERIAL Specifies character field
321100006500880(SN) Specifies character field
35110000650070001234567890123 Specifies character field
1Y1100001200060eagle Specifies graphics field
E Ends label format mode and prints
(Note: Data in
[ ] is hex.)

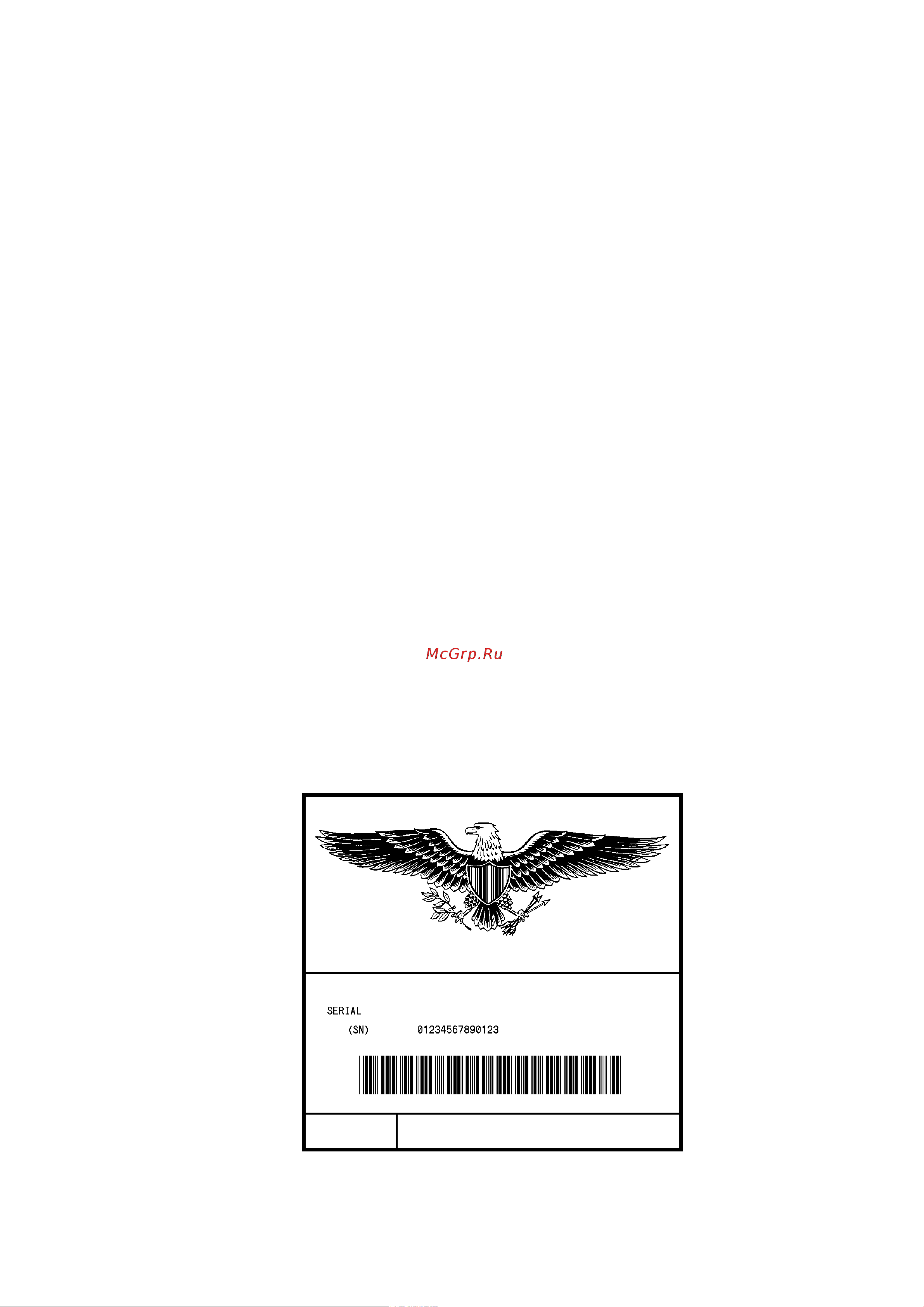

Print sample
