Secure Device Server User Manual
4

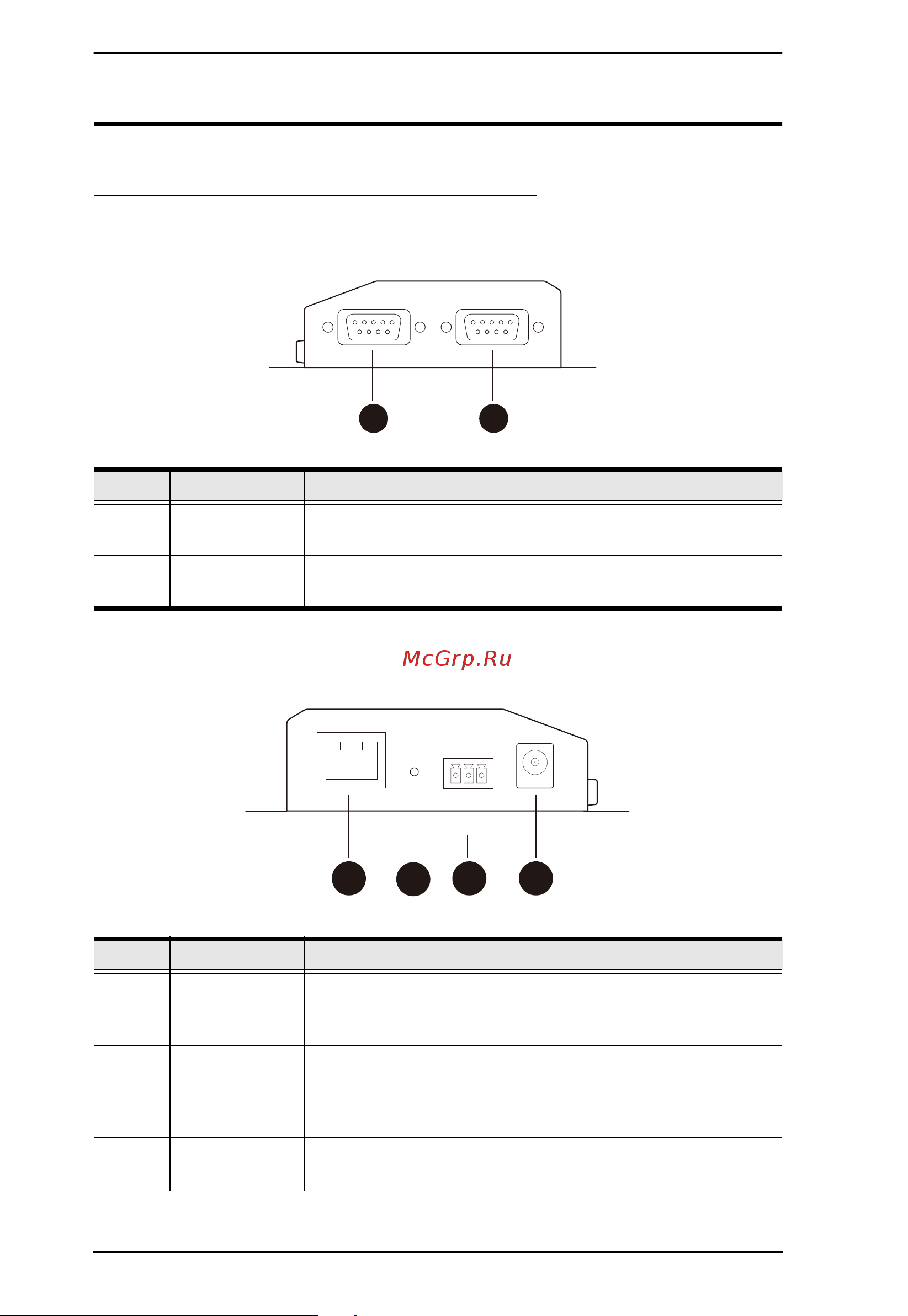

Hardware Overview
SN3001 / SN3001P / SN3002 / SN3002P
Front View
Rear View
No. Component Description
1 RS-232 serial
port 1
Connects to an RS-232 serial device.
2 RS-232 serial
port 2
Connects to a second RS-232 serial device. (SN3002 /
SN3002P only)
No. Component Description
1 LAN port Connects the Secure Device Server to the network. For
SN3001P / SN3002P (PoE 802.3af compliant), it can be
simultaneously supplied power through a PoE switch.
2 reset button Pressing and holding for less than three seconds performs
a system restart. Pressing and holding for more than three
seconds returns its settings (excluding user account
settings and privileges) to their default status.
3 power terminal Connects the Secure Device Server to power via DC
electric leads and the terminal block provided.
21
31 4
2
