Secure Device Server User Manual
70
Telnet / SSH
To access the Secure Device Server’s configuration menu, or a serial device
connected to its COM port via Telnet or SSH, click the Telnet or SSH button

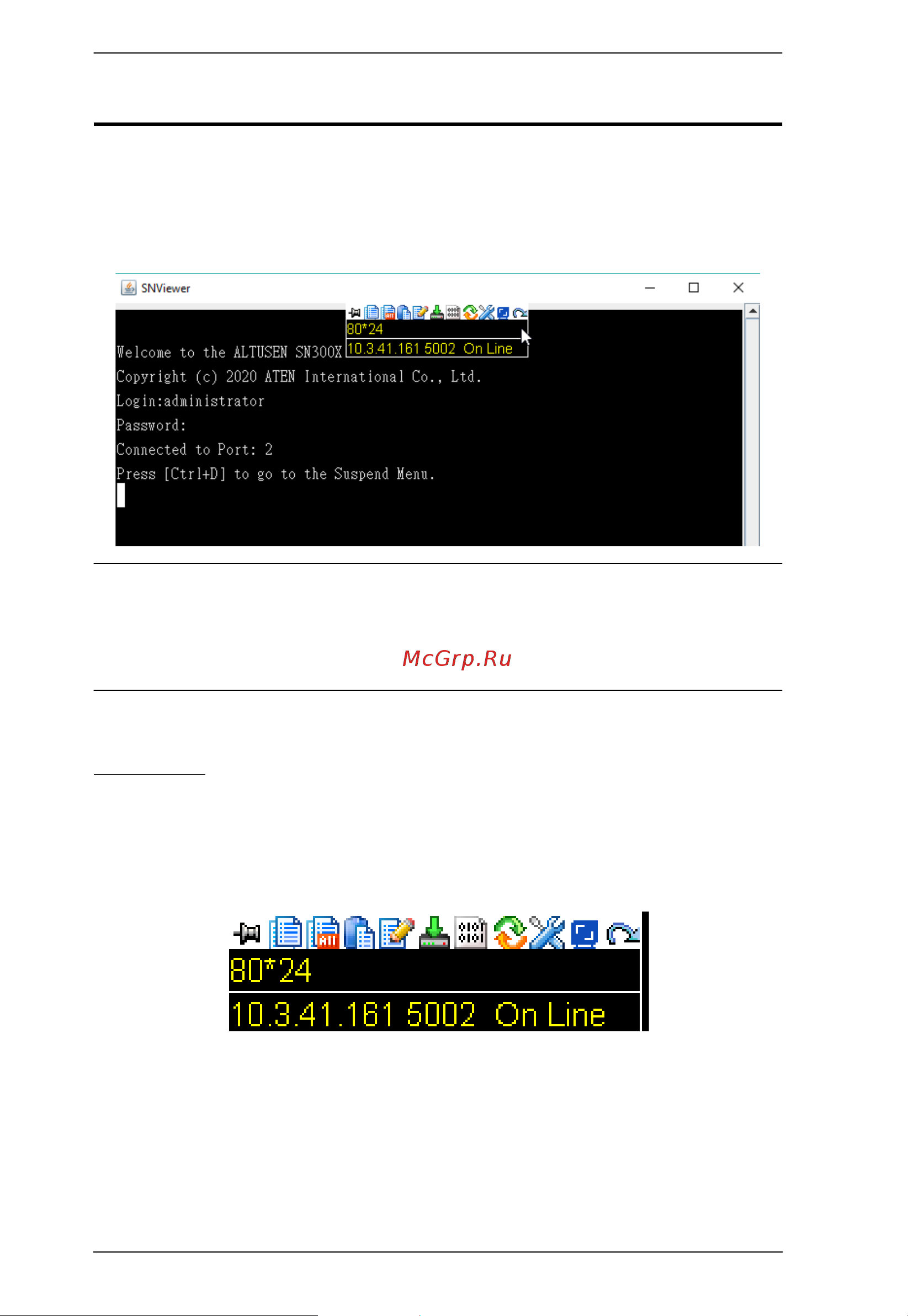

on the Serial Ports page. A Java application — SNViewer — appears and opens
a Telnet / SSH session, as exemplified below.
Note: 1. JRE 8 must be installed to run SNViewer.
2. In order for the Telnet / SSH buttons to appear, the Secure Device
Server’s COM port must be set to Console Management mode (see
Operating Mode, page 30).
SNViewer
The SNViewer is a Java application used to access serial devices connected to
the Secure Device Server on the web via Telnet / SSH protocol.
Moving the mouse cursor over the SNViewer brings up its control panel, which
consists of three rows: an icon row and two text rows.
By default, the upper text row shows the width and height of the window.
As the mouse cursor moves over the icons in the control panel, the
information in the upper text row changes to indicate the icon’s function.
The lower row shows the IP address and port of the device you are
accessing, along with the current connection status.
