Aten SN3402 [84/111] Data import

Secure Device Server User Manual

Data Import

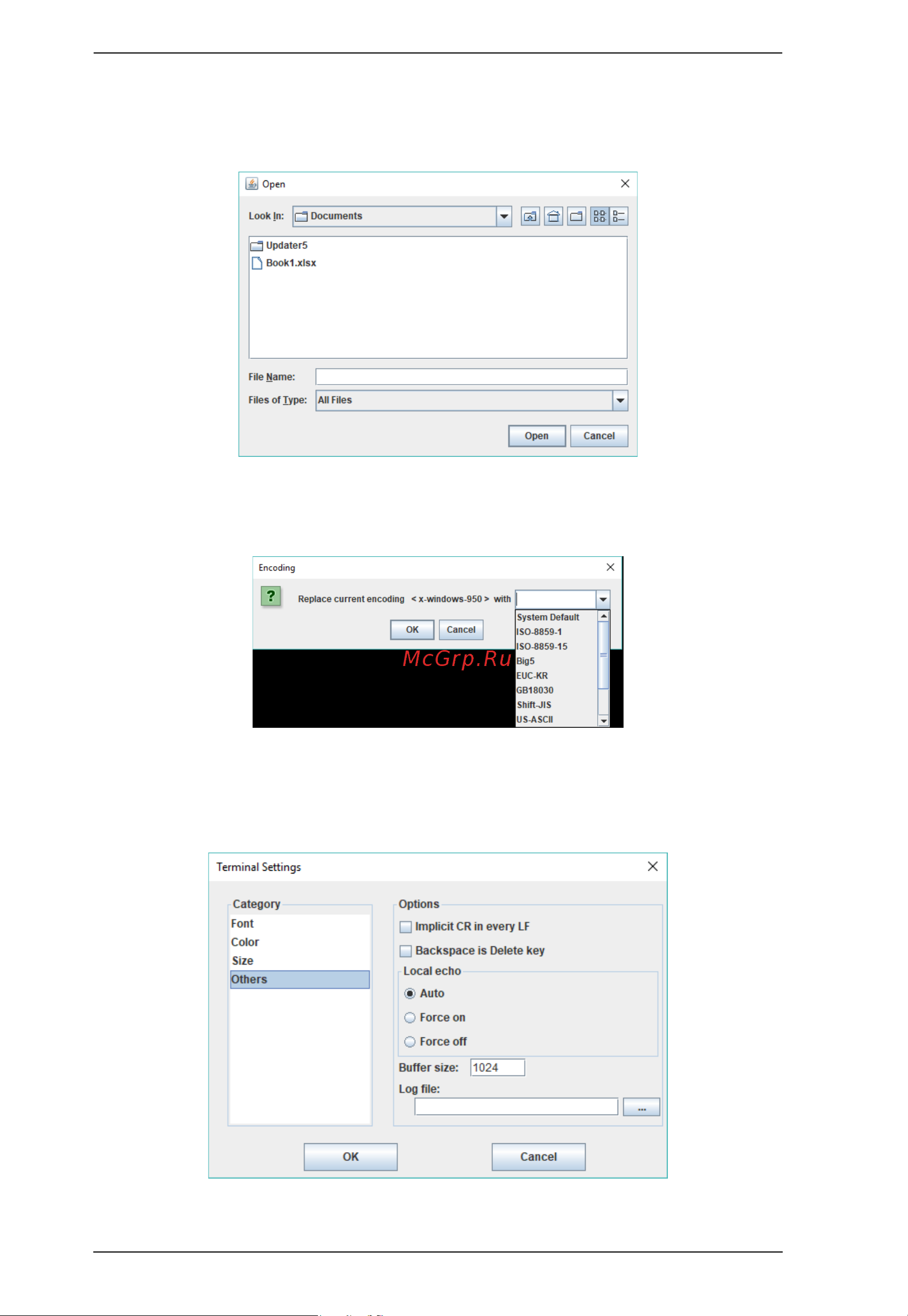

The Data Import option opens a standard browse menu to import data files, as

shown below.

Encode

The Encode option selects the type of encoding to be used, as illustrated below.

Terminal Settings

The Terminal Settings option allows users to change the display parameters

and settings of the terminal session, as described below.
