Secure Device Server User Manual

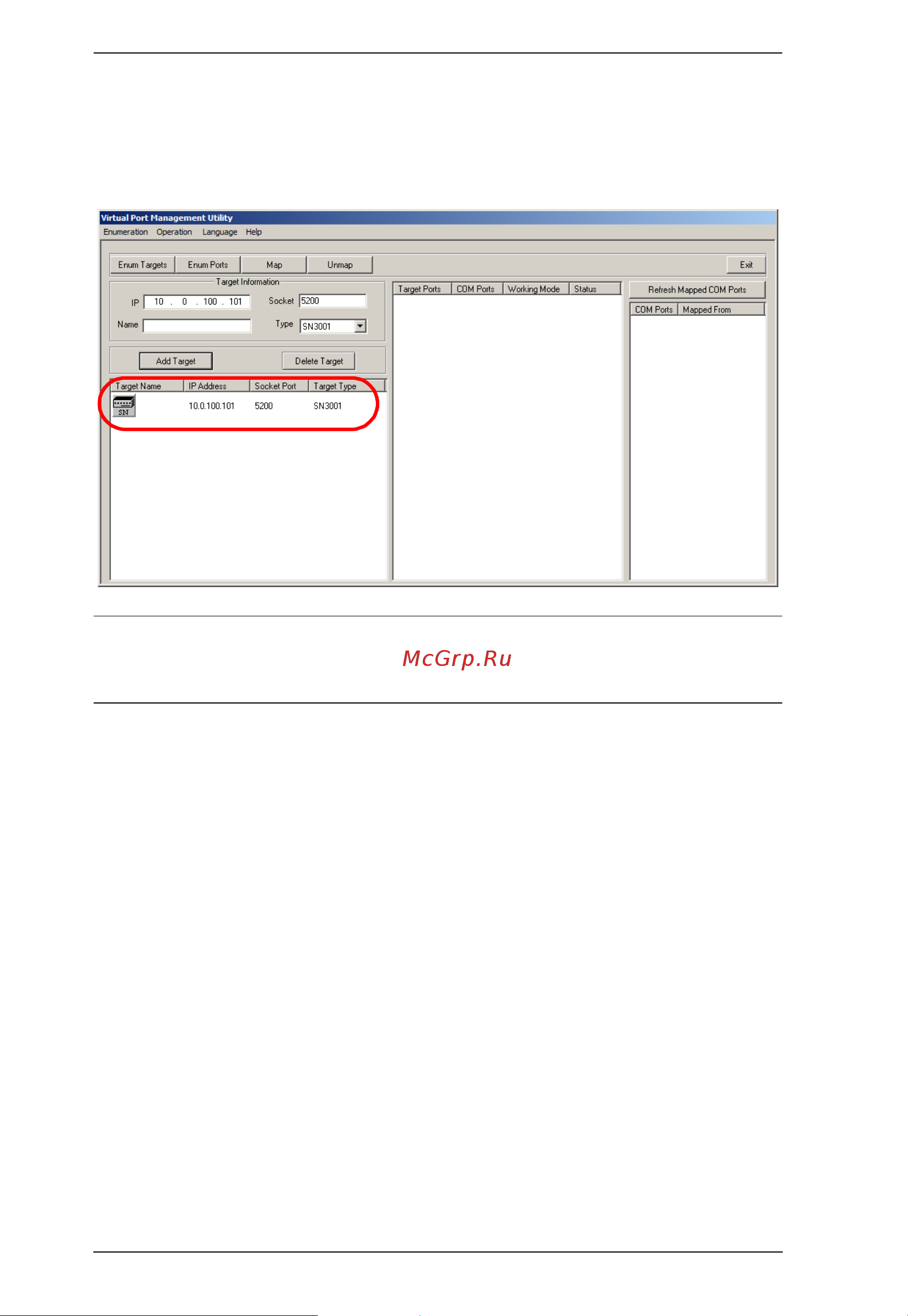

Target List

The left panel displays all the devices that were found with the Enumeration

function, as well as any devices that were manually added with the Target

Information fields.

Note: Double-clicking an item in the list invokes the same function as

selecting Enum Ports, which displays the numbers and working modes

of the selected target’s ports in the Port List column.

 If a device was automatically listed as a result of the Enumeration

procedure, the icon to its left is drawn with green dots and lines to show

that the target is online and ready to be mapped.

 If a device was added to the list manually and is offline, the icon to its left

is drawn with black dots and lines. Double-clicking a manually added item

shall display its information in the Port List, but the working mode

information is not accurate and we must assume that all the device’s ports

are in Real COM mode. See Operating Mode, page 30, for details about

port modes.

 If the target is offline or is online but does not respond within 2 seconds of

asking to enumerate its ports, the working mode information is not

accurate and we must assume that all the device’s ports are in Real COM

mode. See Operating Mode, page 30, for details about port modes.
