69
Chapter 7
Port Access
Overview
Upon login of the Secure Device Server’s web interface, the Serial Ports page
appears. Use the buttons, described below, to access and control the device’s
serial COM ports.
Note: Buttons are only active for the functions that the user is authorized to
perform.

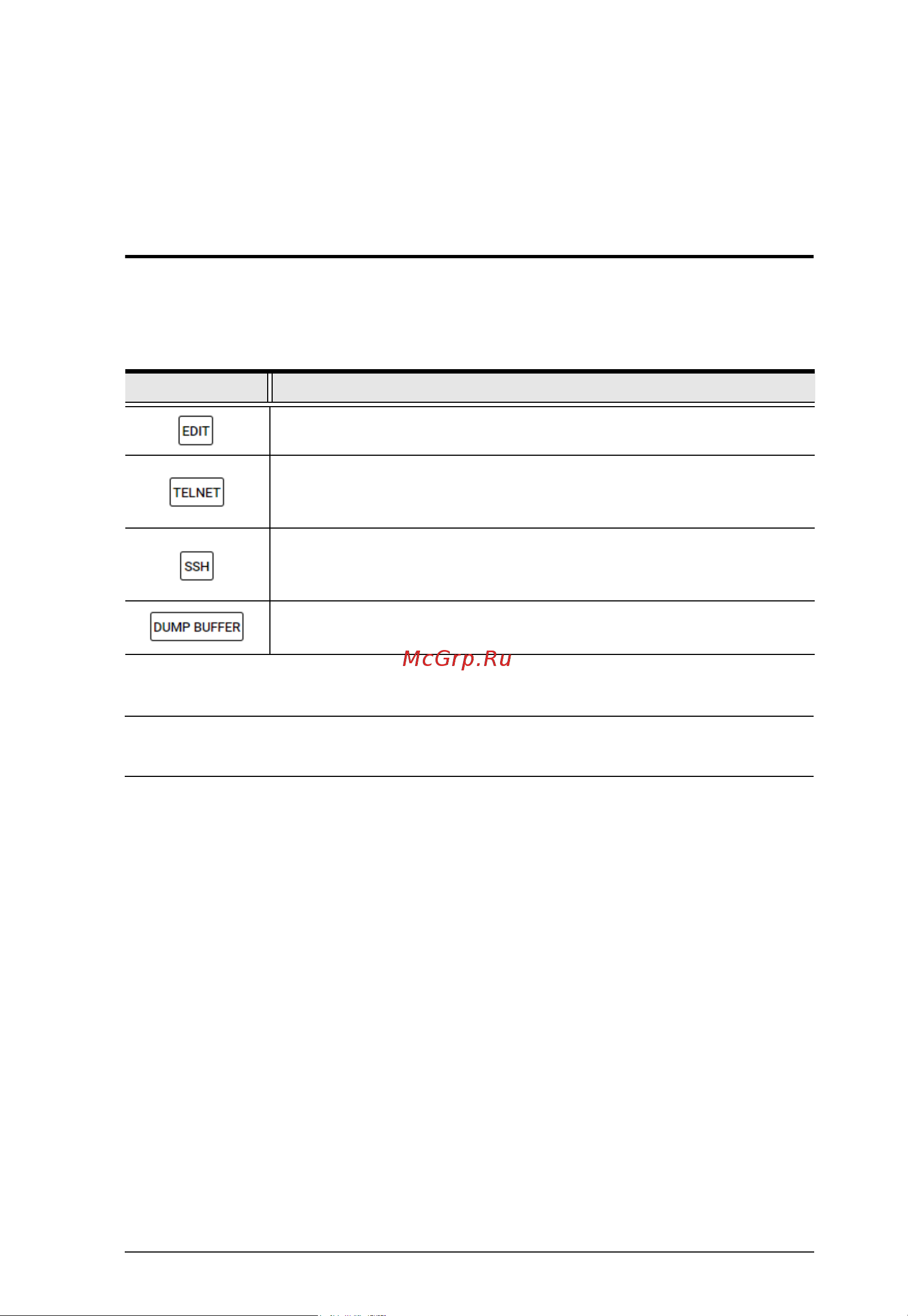

Button Function
Edits the serial port’s settings. See Editing Serial Ports, page 27.
Opens a Telnet session with the Secure Device Server using
SNViewer to access either its configuration menu, or a serial device
connect to its COM port. See Telnet / SSH, page 70, for details.
Opens an SSH session with the Secure Device Server using
SNViewer to access either its configuration menu, or a serial device
connect to its COM port. See Telnet / SSH, page 70, for details.
Downloads the port activity logs (up to 128 KB) of the serial port as a
log.txt file. See Port Buffering, page 28.
