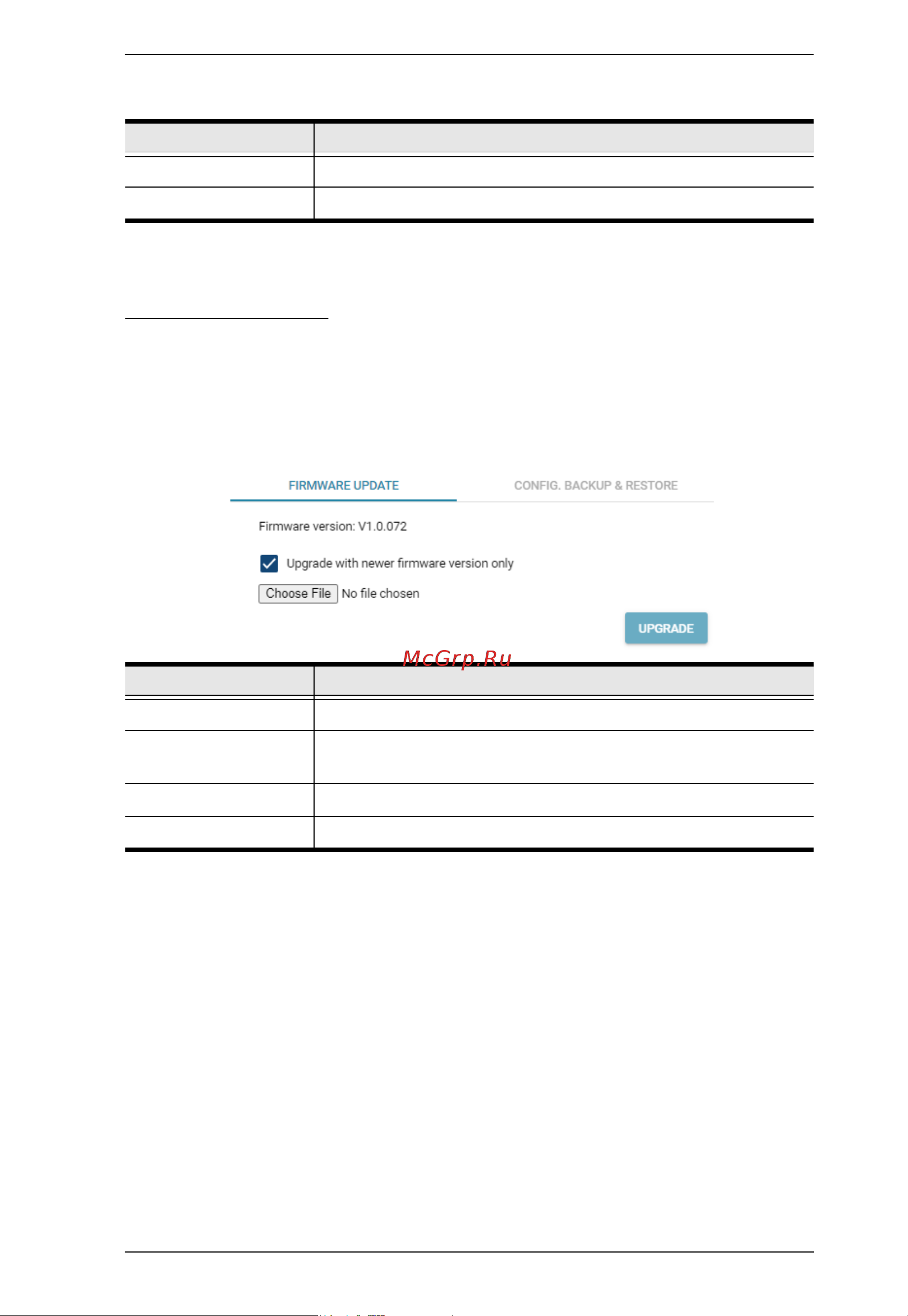

Aten SN3402 [61/111] Update restore

Chapter 4. Web Console

Update & Restore

The Update & Restore page can upgrade the Secure Device Server’s firmware

and back up and/or restore its device settings.

Firmware Update

Item Description

Import Certificate Imports a private or CA-signed security certificate from the PC.

Restore Defaults Reverts to using the default ATEN certificate.

Item Description

Firmware version Displays the current firmware version.

Upgrade with newer

firmware version only

Check to only permit firmware upgrades with newer firmware

versions.

Choose File Selects the firmware update file to be used for upgrading.

UPGRADE Upgrades the device firmware with the firmware file selected.
