Secure Device Server User Manual

Backup & Restore

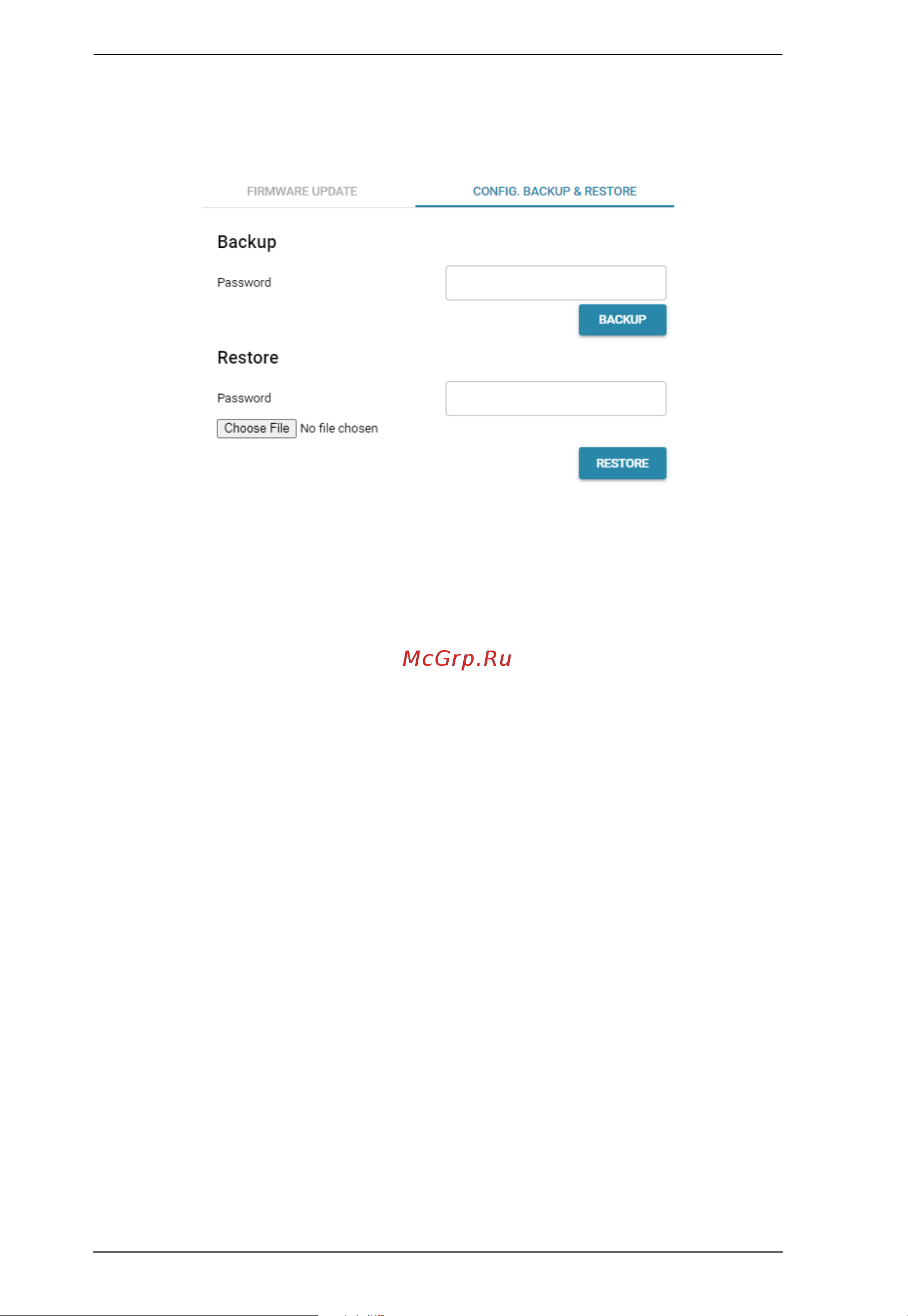

The Backup & Restore page allows users to back up or restore the system

settings of the Secure Device Server.

 Backing up System Settings

To back up the system settings of the Secure Device Server, enter a Password,

which will be used for restoring, and click Backup to save the system setting

backup file, as System.conf, to the PC, which also include account-related

settings, such as passwords and user privileges.

 Restoring System Settings

To restore a previously backed up system settings file, enter its Password, click

Choose File to locate it on the PC, and click Restore.
