Aten SN3402 [54/111] Notification

Secure Device Server User Manual

Notification

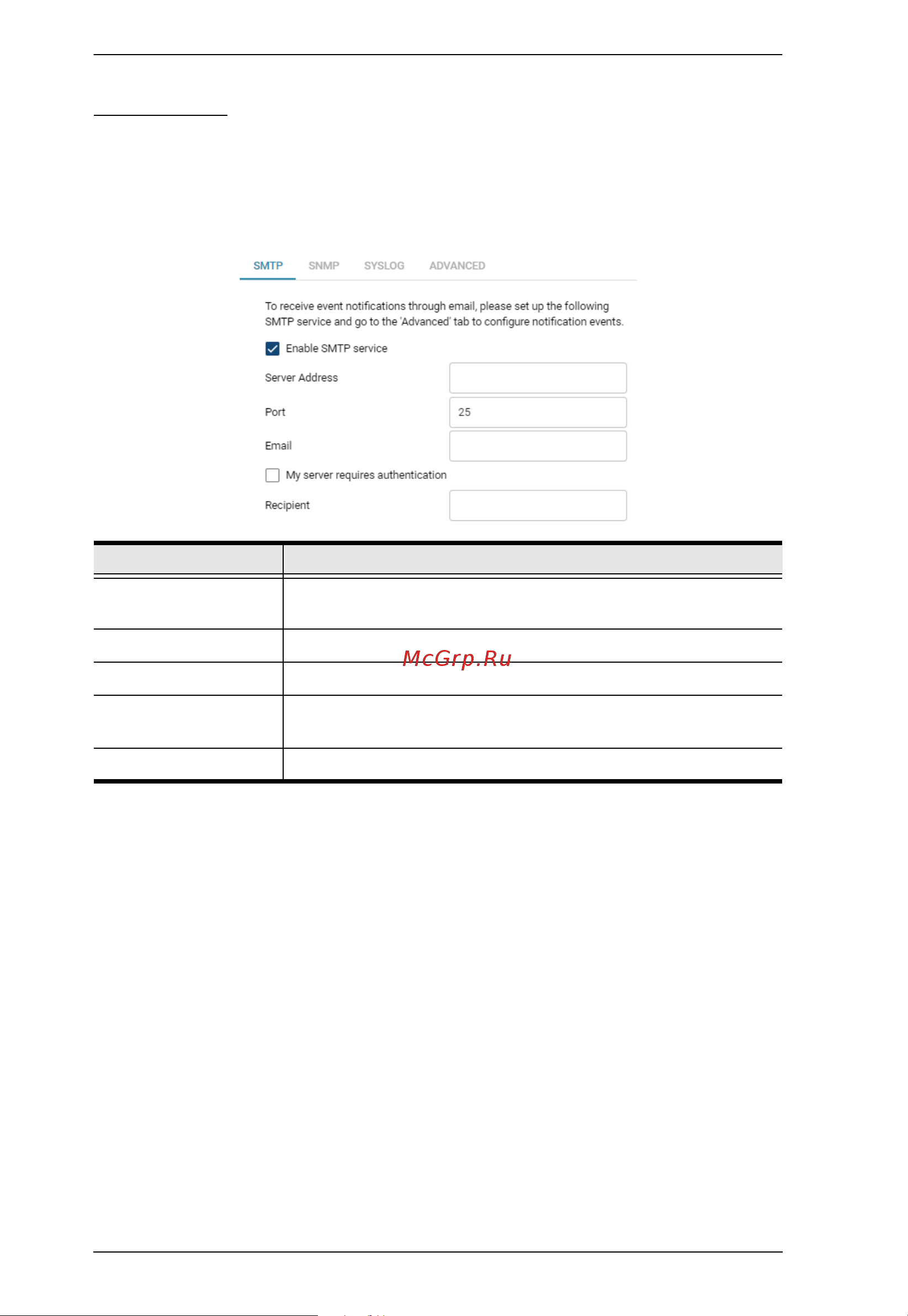

The Notification page contains 4 tabs: SMTP, SNMP, Syslog, and Advanced.

SMTP

Item Description

Enable SMTP service Check to enable SMTP service for sending event notifications

via email, as specified by the Advanced tab (see page 45).

Server Address / Port Enter the SMTP server’s address and service port value.

Email Enter the sender’s email address.

My server requires

authentication

Check if your SMTP server requires authentication and enter a

valid username and password.

Recipient Enter the recipient’s email address.
