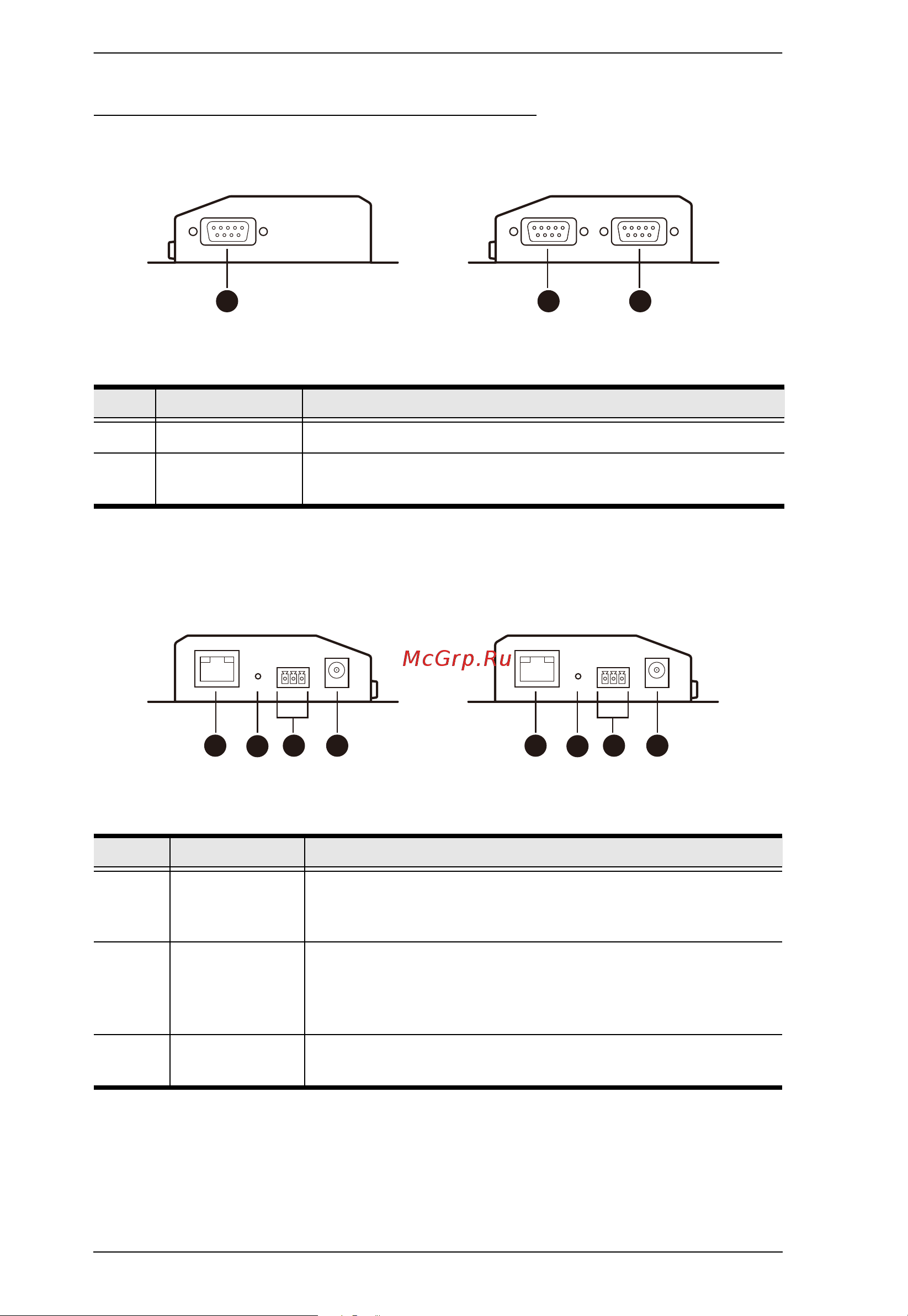

Secure Device Server User Manual
6
SN3401 / SN3401P / SN3402 / SN3402P
Front View
Rear View
No. Component Description
1 serial port 1 Connects to an RS-232 / RS-422 / RS-485 serial device.
2 serial port 2 Connects to a second RS-232 / RS-422 / RS-485 serial
device. (SN3402 / SN3402P only)
No. Component Description
1 LAN port Connects the Secure Device Server to the network. For
SN3401P / SN3402P (PoE 802.3af compliant), it can be
simultaneously supplied power through a PoE switch.
2 reset button Pressing and holding for less than three seconds performs
a system restart. Pressing and holding for more than three
seconds returns its settings (excluding user account
settings and privileges) to their default status.
3 power terminal Connects the Secure Device Server to power via DC
electric leads and the terminal block provided.
211
SN3401 / SN3401P
SN3402 / SN3402P
31 4
2
31 4
2
1
SN3401 / SN3401P
SN3402 / SN3402P
