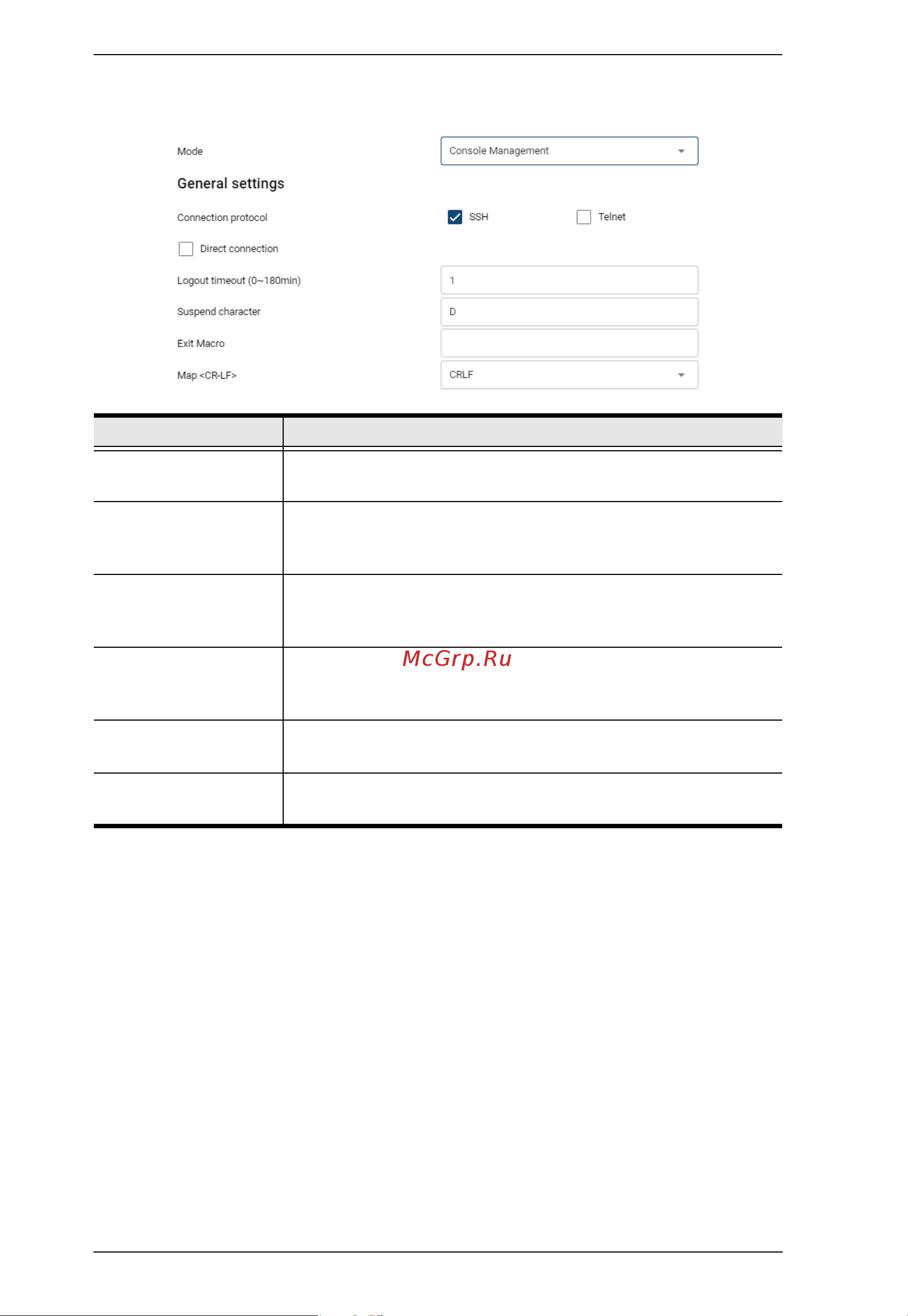

Secure Device Server User Manual
34
Console Management
Item Description
Connection protocol Check / uncheck to enable / disable SSH and Telnet
connection protocols.
Direct connection Select for Console Management Direct operating mode. For
detailed information on the various available operating modes,
see Chapter 6, Port Operating Modes.
Logout timeout
(0 ~ 180 min)
Automatically logs out user(s) accessing when there is no
input by the user for the amount of time set. “0” means the
user will never be automatically logged out.
Suspend character The suspend character is used to bring up the Suspend Menu
in Telnet sessions. Valid characters include A – Z, except for
H, I, J, and M.
Exit Macro Sets the Exit Macro that will be executed upon exiting the
serial device.
Map <CR-LF> Select to send Carriage Return (CR) and/or Line Feed (LF)
signals.
