Secure Device Server User Manual
48

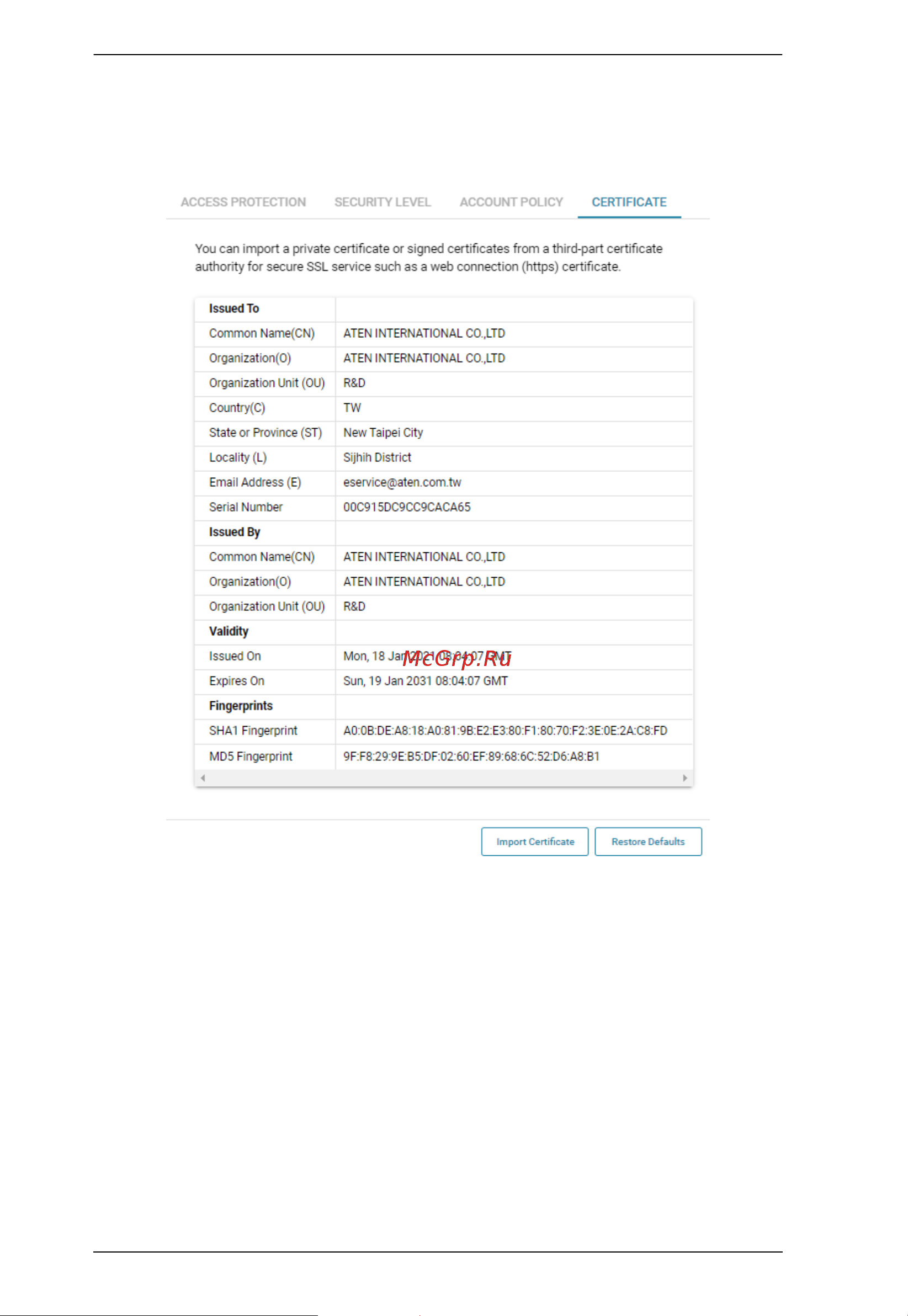

Security Certificate
The Security Certificate tab displays the information of the security certificate
used.
For enhanced security, users can use their own private encryption key and
signed certificate, rather than the default ATEN certificate.
There are two methods for establishing your private certificate:
Generating a Self-Signed Certificate
If you wish to create your own self-signed certificate, a free utility —
openssl.exe — is available for download over the web.
Obtaining a CA-Signed SSL Server Certificate
To ensure security, it is recommended to use a third-party CA-signed SSL
certificate obtained from a CA (Certificate Authority) website. Make sure
to save the obtained certificate and its private encryption key on the PC.
