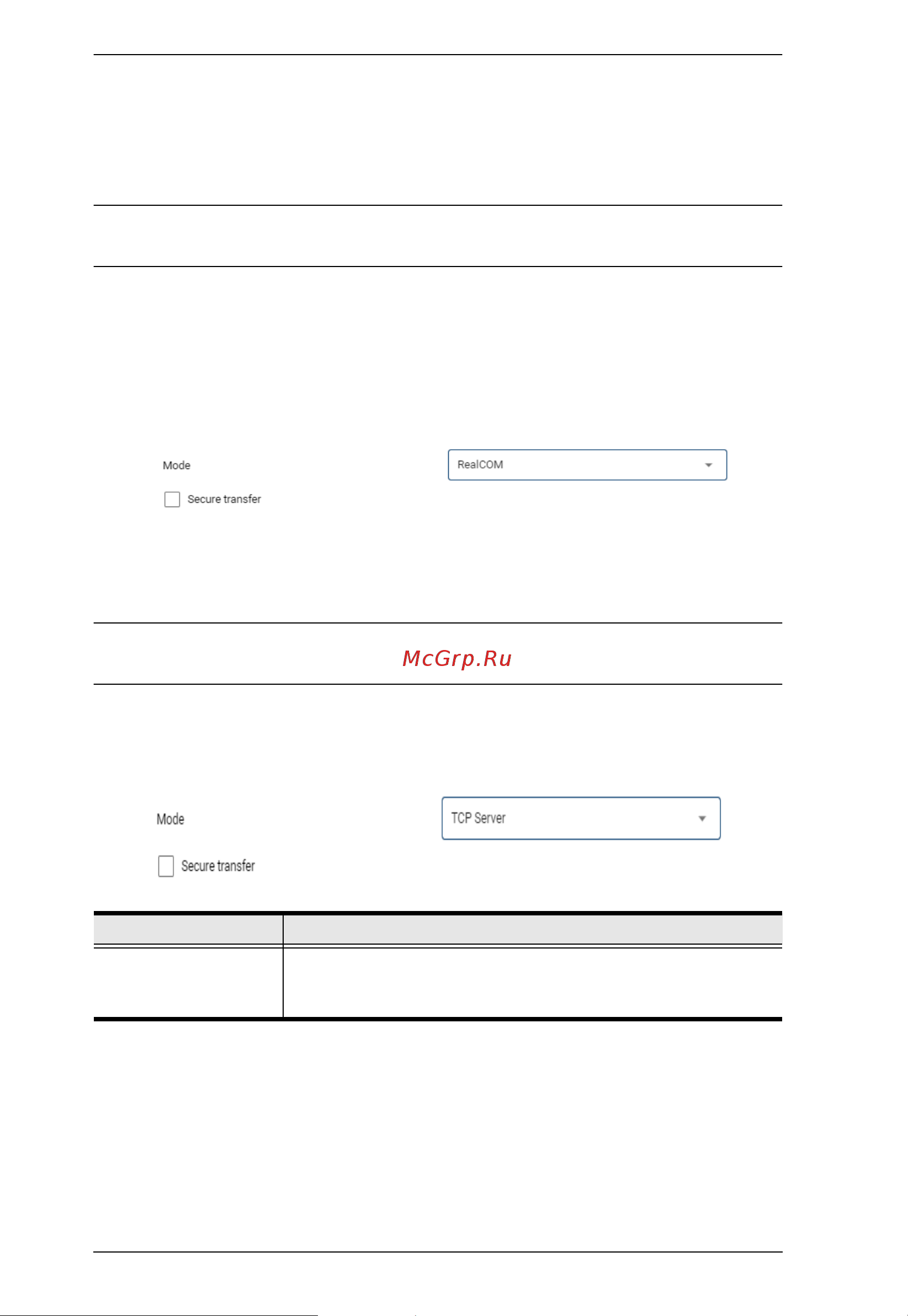

Secure Device Server User Manual
30
Operating Mode
The Operating Mode tab determines how the serial COM port of the Secure
Device Server is accessed.
Note: The maximum number of simultaneous connections to any one serial
port is 16.
For detailed information of the various port operating modes, see Chapter 6,
Port Operating Modes.
Real COM
Check Secure transfer to encrypt all data being transfered, using SSL, through
the serial COM port.
Note: Real COM operating mode must be used in conjunction with ATEN’s
Virtual COM Port Utility, see Virtual Serial Port Manager, page 79.
TCP Server
Item Description
Secure transfer Check to encrypt all data being transferred between Secure
Device Servers’ serial COM ports via TCP Server-Client
modes, using SSL.
