English 11

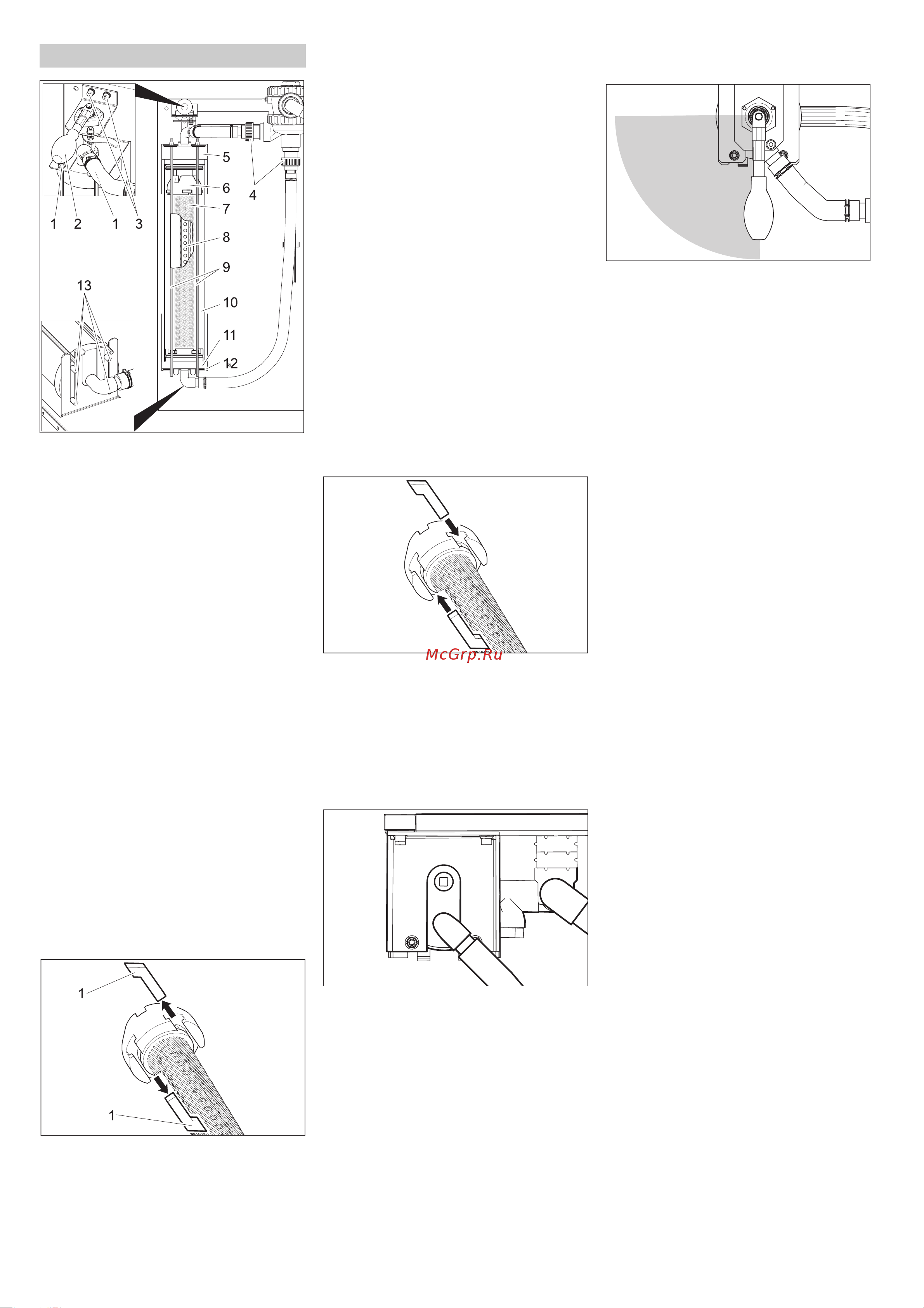

1Nut
2 Tension lever
3 Screw of the tension lever bearing
4 Screw connections
5Cover
6 Upper section
7 Filter inlay
8 Filtrate pipe
9 Threaded rod
10 Filament filter
11 Lower part
12 Lower console
13 Pin
Î Unlock filter.
Î Remove both the screws.
Î Turn out both the screws of the tension
lever bearing.
Î Lift upward the entire tension lever
along with the bearings.
Î Unscrew the nuts at the upper end of
the threaded rods.
Î Remove the threaded rod assembly.
Î Pull out the filament filter towards the
front.
Î Remove the lid of the filament filter.
Î Pull out the lower part of the filament fil-
ter including filter inlay.
1 Grooved stone
Î Pullout the grooved stones between the
upper part and the filter inlay and be-
tween the lower part and the filter inlay.
Î Remove upper and lower part of filter in-
lay.
Î Remove filtrate pipe from filtrate inlay,
Î Dispose off filter inlay.
Î Attach filtrate pipe at one end of the new
filter inlay.
Î Tighten the filter inlay in such a way that
the filaments do not twist.
Î Push the fitrate pipe in the filter inlay
and by looking at the opposite side of
the filter element push the inlay in the di-
rection of the filtrate pipe.
Î Coat all rings with normal liquid soap
before carrying out any further installa-
tion tasks.
Note
Do not use silicon grease. Silicon in water
will hamper the cleaning and drying effect
during vehicle wash.
Î Insert the upper and lower part on the
filter element.
Î Align the upper and lower part in such a
way that the grooved stones can be in-
serted.
Î Insert the grooved stones and clamp it
tight by slightly turning the filter inlay.
Î Insert the lower part into the filament fil-
ter and push it in completely.
Î Replace the filament filter lid.
Î Place the filament filter on the lower
console so that both the rear pins lock
into the long-holes of the console.
Î Align the lid, as shown above, and push
it in completely.
Î Push in the filament filter between the
two consoles.
Î Hook in the threaded rod assembly at
the lower console and insert the thread-
ed rods through the holes in the upper
console.
Î Fasten the threaded rods with undelay
washers and nuts.
Î Tighten the nuts in such a way that the
underlay washers can be still be moved
by hand.
Î Tighten the screws of the pipes.
Î Insert the tension lever with bearing
through the lid of the filament filter.
Î
Turn the tightening lever in clockwise di-
rection. It should be possible to turn the
tightening lever in the range shown
above without exerting any pressure.
Otherwise, dismantle the tightening le-
ver and insert it again in the correct po-
sition.
Î Fasten the tension lever bearings with
screws.
Î Adjust the filter pre-tension.
Replacing filter inlay
