2-8 PERIODIC MAINTENANCE

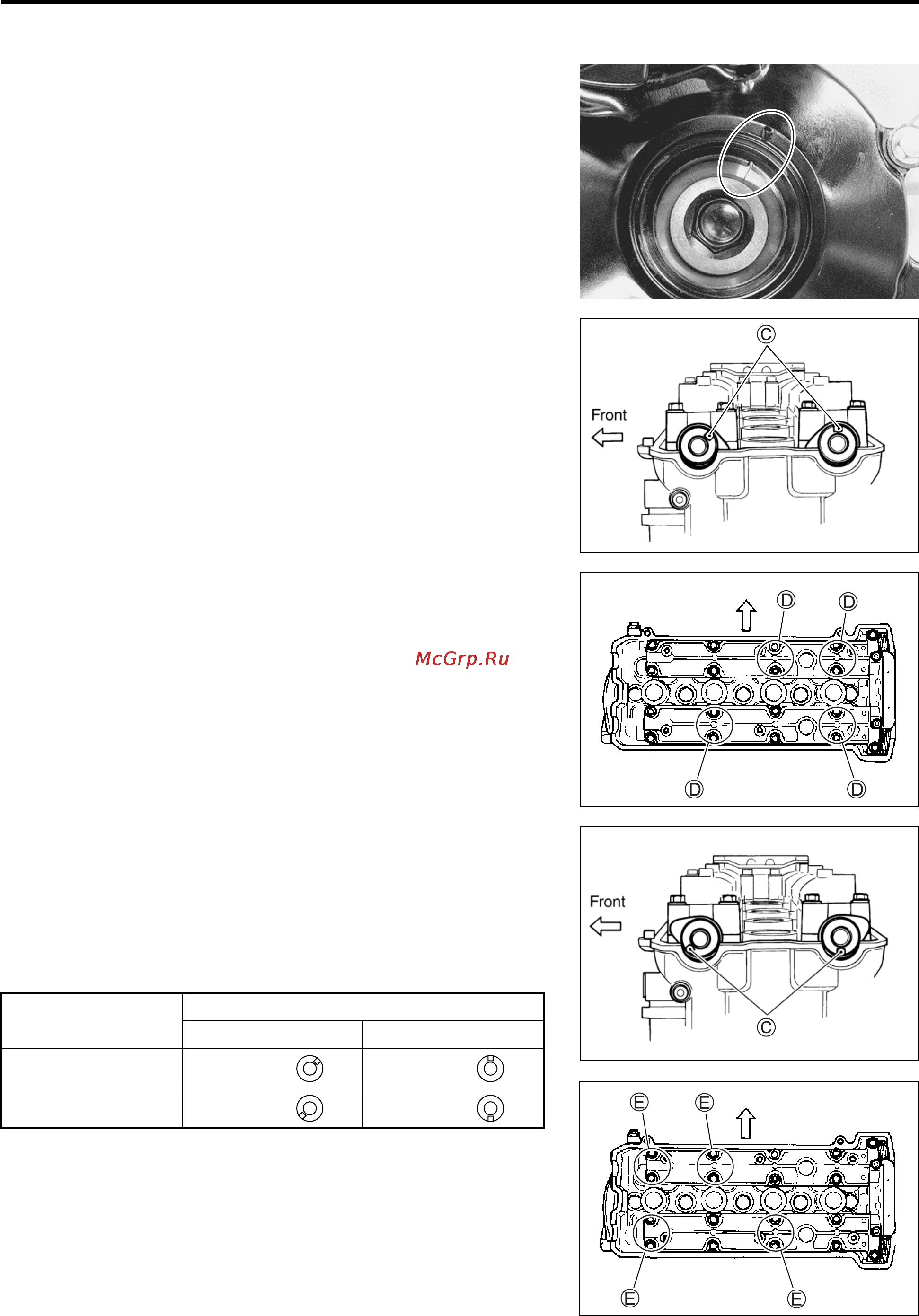

• Turn the crankshaft to bring the “Top” line on the starter clutch

to the index mark and also to bring the notches $ on the left

ends of both camshafts (Ex. and In.) to the positions as

shown.

• In this condition, read the valve clearance at the valves % (In.

and Ex. of No.4 cylinder, Ex. of No.3 and In. of No.2).

• If the clearance is out of specification, adjust the clearance.

(2-9)

\ 09900-20803: Thickness gauge

• Turn the crankshaft 360° (one rotation) to bring the “TOP” line

on the starter clutch to the index mark of valve timing inspec-

tion hole and also to bring the notches $ to the position as

shown.

• Read the clearance at the rest of the valves & and adjust the

clearance if necessary. (2-9)

Front

Cam position

Notch $ position

Exhaust Camshaft Intake Camshaft

% ← Front ← Front

& ← Front ← Front

Front
