PERIODIC MAINTENANCE 2-29
EXHAUST PIPE BOLT AND MUFFLER BOLT
• Tighten the exhaust pipe bolts, muffler mounting bolts and
muffler connecting bolts to the specified torque.
• HO2 sensor removal and installation (4-113)
Tighten initially at 1 000 km (600 miles, 2 months) and
every 12 000 km (7 500 miles, 24 months) thereafter.

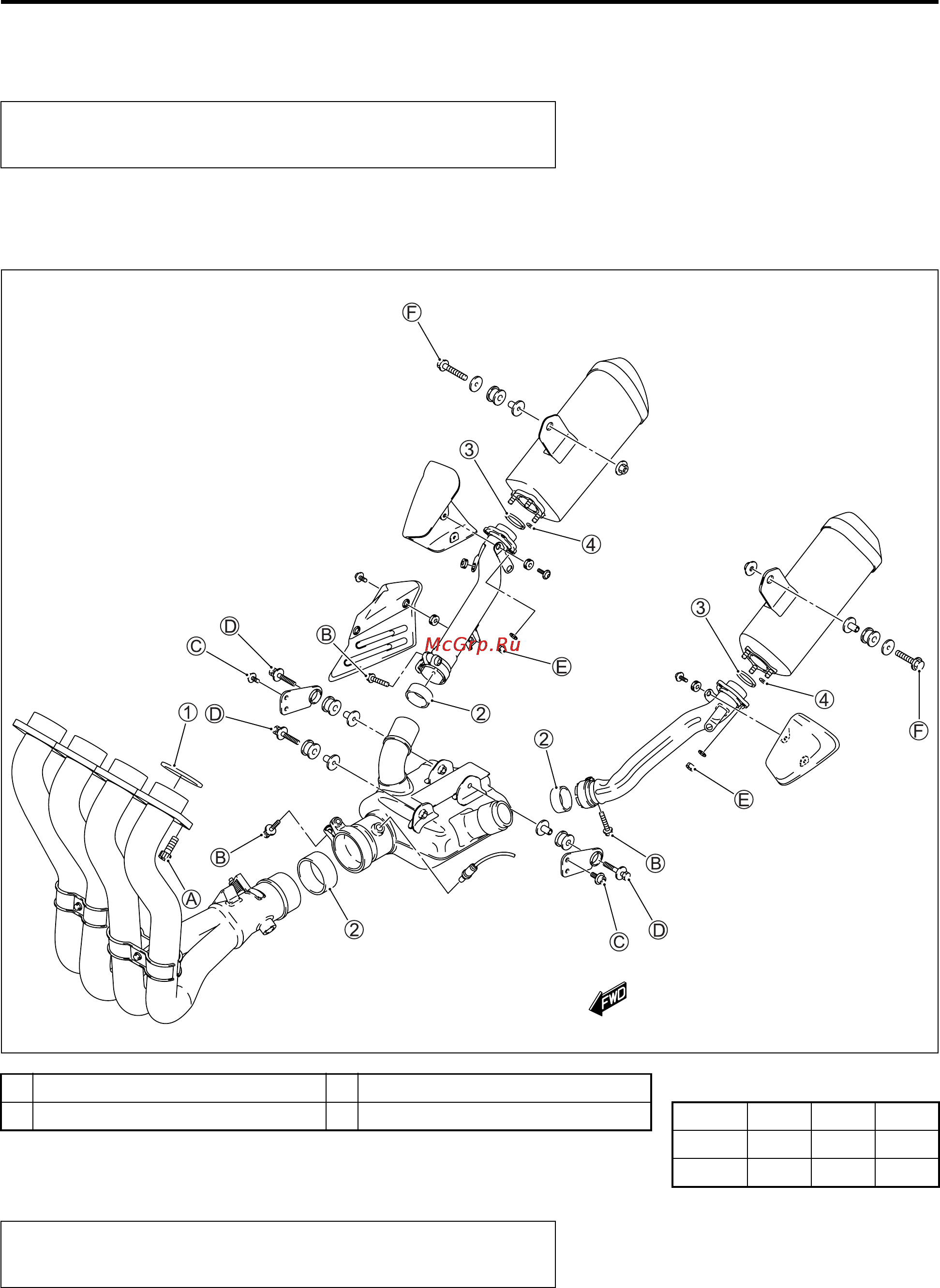

Gasket Gasket "
Connector O-ring ITEM N·m
kgf-m
lb-ft
"#% 23 2.3 16.5
$&' 25 2.5 18.0
Replace the gaskets, connectors and O-rings with new
ones when reassembling.
