Suzuki GSX-R1000 (2007) [424/549] Clutch master cylinder inspection
![Suzuki GSX-R1000 (2007) [424/549] Clutch master cylinder inspection](/views2/1121277/page424/bg1a8.png)

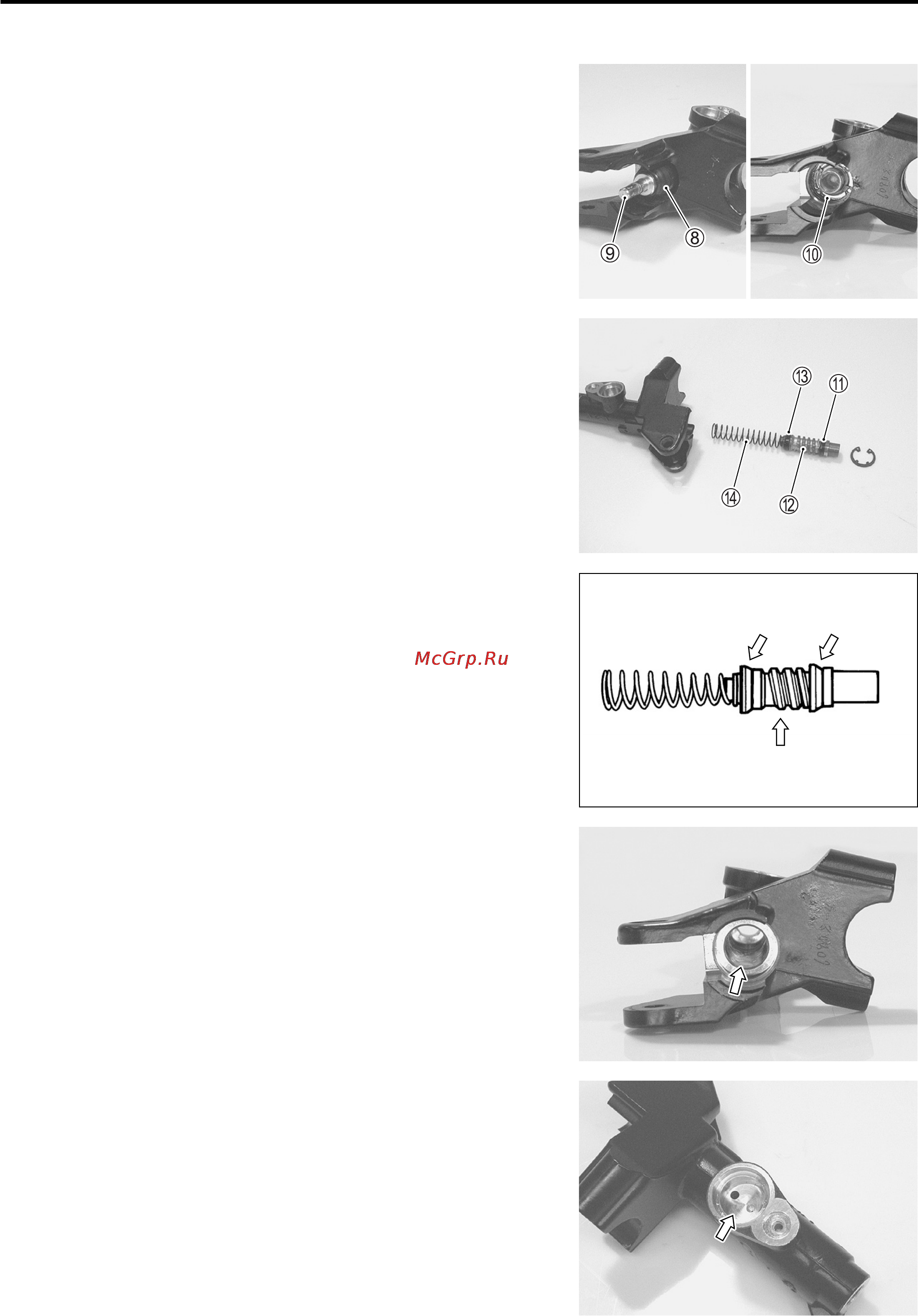

8-90 CHASSIS
• Remove the dust boot and push rod .
• Remove the snap ring .
\ 09900-06108: Snap ring pliers
• Remove the piston/cup set.
" Secondary cup
# Piston
$ Primary cup
% Spring
CLUTCH MASTER CYLINDER INSPECTION
• Inspect the piston surface for any scratches or other damage.
• Inspect the primary cup, secondary cup and dust boot for
wear or damage.
• Inspect the master cylinder bore for any scratches or other
damage.
