COOLING AND LUBRICATION SYSTEM 7-19

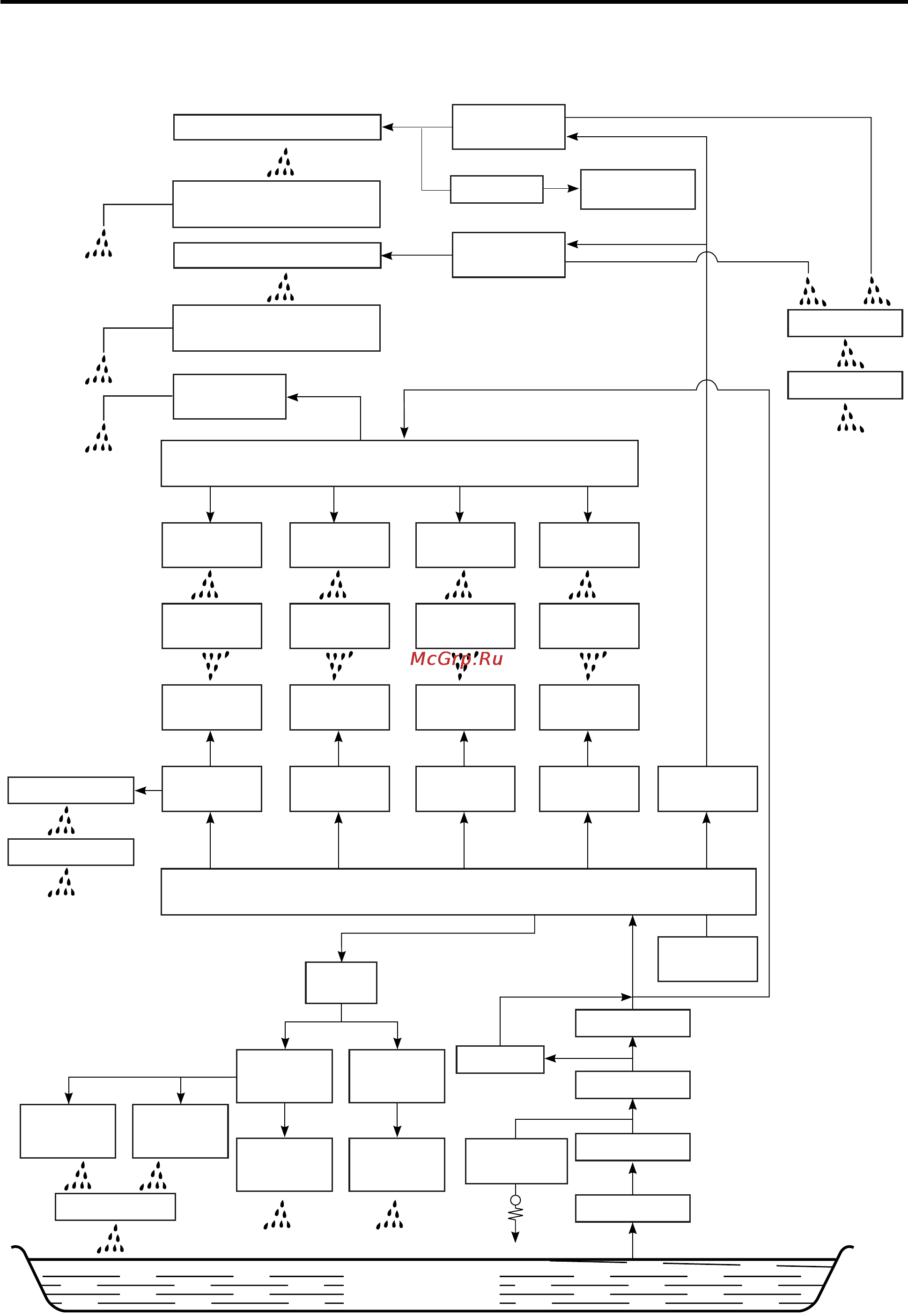

ENGINE LUBRICATION SYSTEM CHART
INTAKE CAMSHAFT
INTAKE CAMSHAFT
JOURNAL HOLDER
CAM DRIVE CHAIN
STARTER CLUTCH
OIL JET
CAM CHAIN
TENSION ADJUSTER
#1 PISTON COOLING
OIL JET
#1 PISTON AND
CYLINDER WALL
#1 CRANK PIN
BEARING
#1 CRANKSHAFT
JOURNAL BEARING
ORIFICE
GENERATOR
#2 CRANKSHAFT
JOURNAL BEARING
#3 CRANKSHAFT
JOURNAL BEARING
#4 CRANKSHAFT
JOURNAL BEARING
#5 CRANKSHAFT
JOURNAL BEARING
OIL PRESSURE
SWITCH
#2 CRANK PIN
BEARING
OIL JET
(#14)
OIL FILTER
OIL COOLER
OIL PUMP
ORIFICE
OIL STRAINER
OIL PRESSUER
REGULATOR
COUNTERSHAFT
LEFT-SIDE
BEARING
COUNTERSHAFT
GEARS AND
BUSHINGS
DRIVESHAFT
GEARS AND
BUSHINGS
CLUTCH PUSH
PIECE
CLUTCH PLATES
PRIMARY DRIVEN
GEAR BEARING
DRIVESHAFT
RIGHT-SIDE
BEARING
#3 CRANK PIN
BEARING
#4 CRANK PIN
BEARING
#2 PISTON AND
CYLINDER WALL
#3 PISTON AND
CYLINDER WALL
#4 PISTON AND
CYLINDER WALL
#2 PISTON COOLING
OIL JET
#3 PISTON COOLING
OIL JET
#4 PISTON COOLING
OIL JET
EXHAUST CAMSHAFT
CAMSHAFT JOURNALS,
CAMFACES AND TAPPETS
CAMSHAFT JOURNALS,
CAMFACES AND TAPPETS
SUB-GALLERY
MAIN-GALLERY
OIL PAN
EXHAUST CAMSHAFT
JOURNAL HOLDER
BALANCER SHAFT
BEARING
