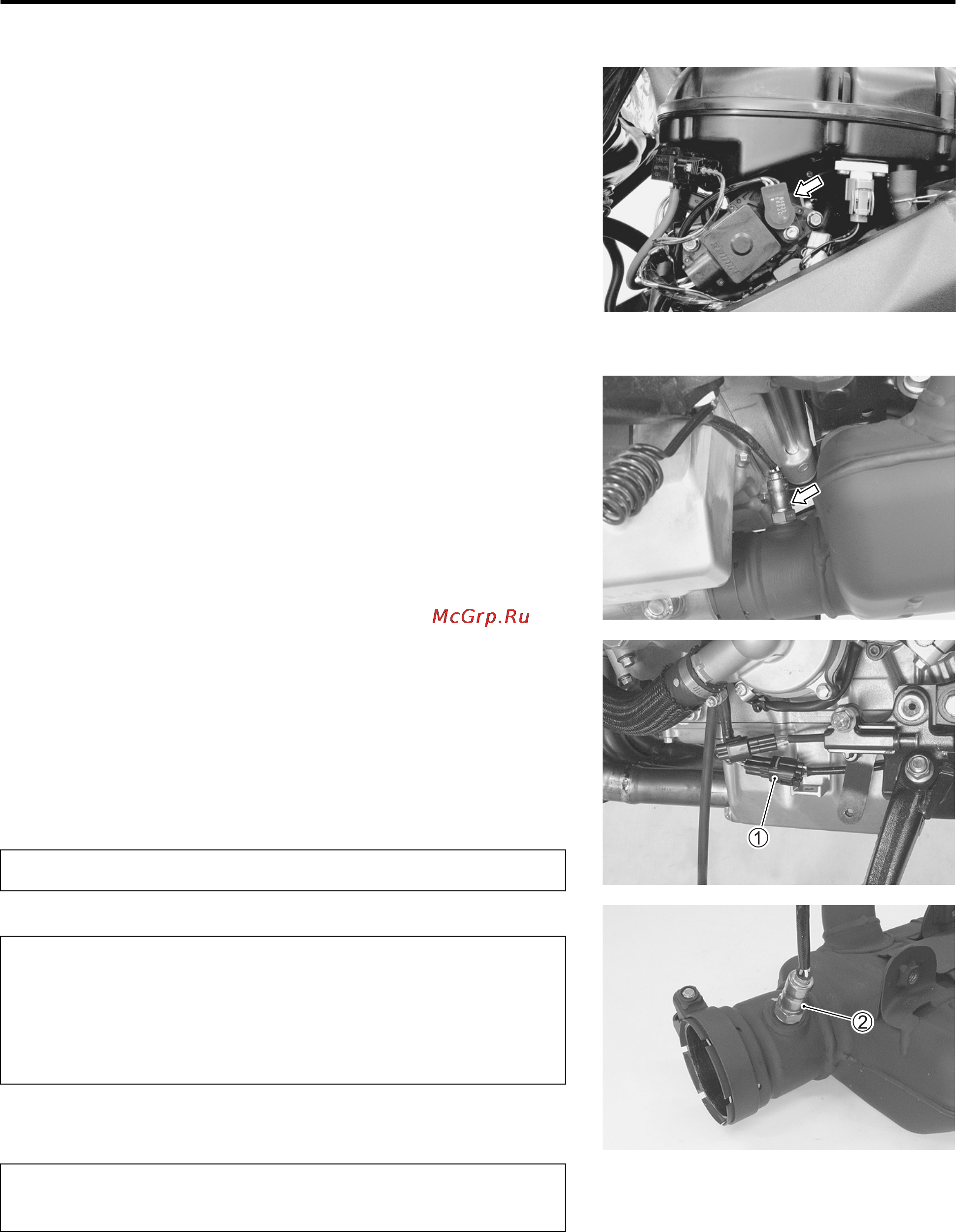

FI SYSTEM DIAGNOSIS 4-113
STP SENSOR INSPECTION
The secondary throttle position sensor is installed at the right
side of the No.4 throttle body. (4-69)
STP SENSOR REMOVAL AND INSTALLATION
• Remove the STP sensor. (5-17)
• Install the STP sensor in the reverse order of removal.
STP SENSOR ADJUSTMENT
• Adjust the STP sensor. (5-23)
HO2 SENSOR INSPECTION
The heated oxygen sensor is installed to the muffler chamber.
(4-88)
HO2 SENSOR REMOVAL AND
INSTALLATION
• Remove the left under cowling. (8-5)
• Disconnect the HO2 sensor coupler .
• Remove the muffler chamber. (6-13)
• Remove the HO2 sensor .
#
• Installation is in the reverse order of removal.
• Tighten the HO2 sensor to the specified torque.
" HO2 sensor: 25 N·m (2.5 kgf-m, 18.0 lb-ft)
Do not remove the HO2 sensor while it is hot.
* Be careful not to expose it to excessive shock.
* Do not use an impact wrench while removing or
installing the HO2 sensor.
* Be careful not to twist or damage the sensor lead
wires.
Do not apply oil or other materials to the sensor air
hole.
