Suzuki GSX-R1000 (2007) [295/549] Throttle valve synchronization

FUEL SYSTEM AND THROTTLE BODY 5-27

THROTTLE VALVE SYNCHRONIZATION

USE OF SDS TOOL

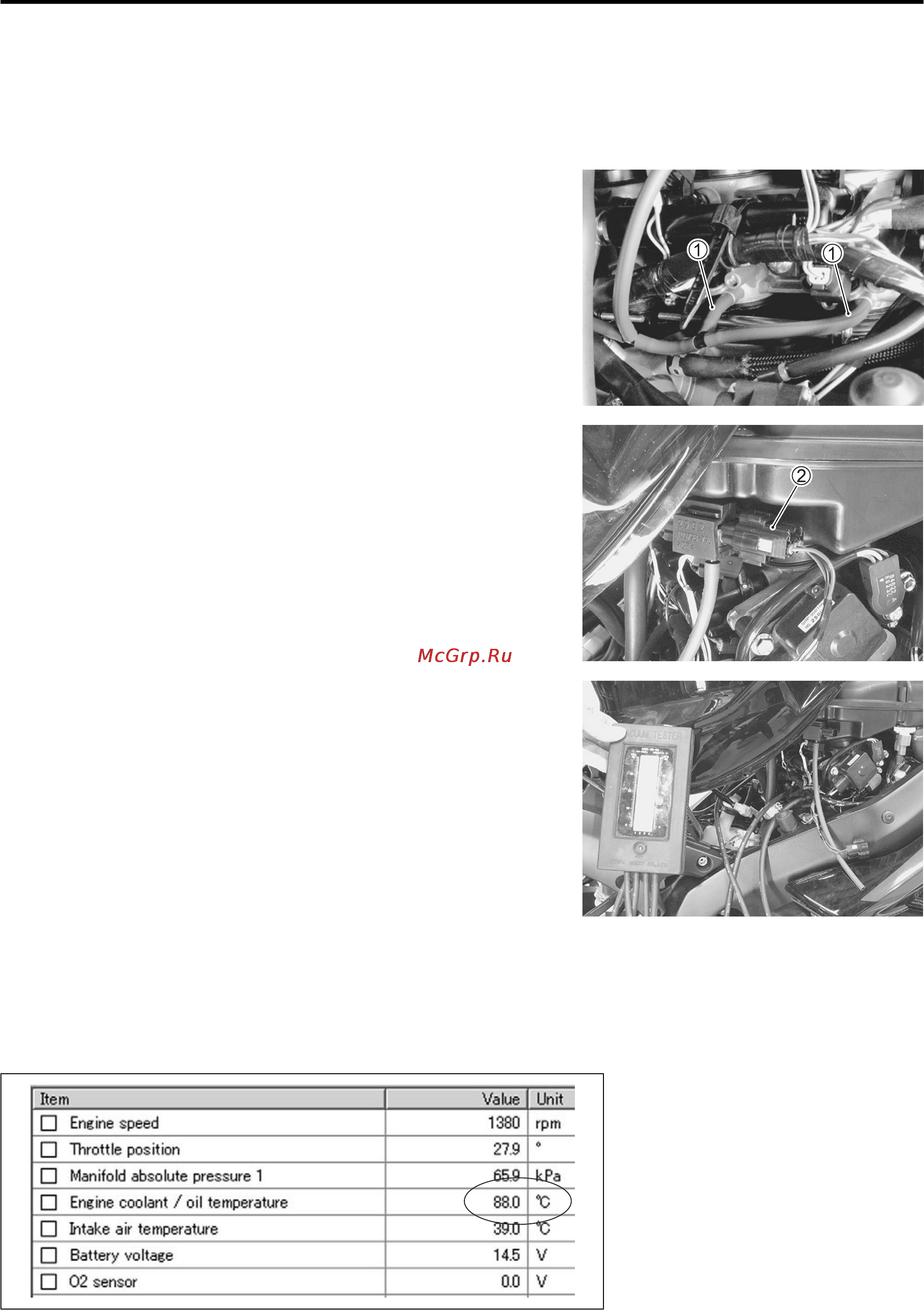

Check and adjust the throttle valve synchronization among four

cylinders.

Step 1

• Lift and support the fuel tank. (5-3)

• Disconnect the respective vacuum hoses  from each vac-

uum nipple.

• Disconnect the IAP sensor coupler .

• Connect the respective vacuum tester hoses to each nipple

on the throttle body.

Step 2

• Set up the SDS tool. (4-27)

• Start the engine.

• Click “Data monitor”.

• Warm up the engine (Water temp. more than 70 °C (158 °F).
