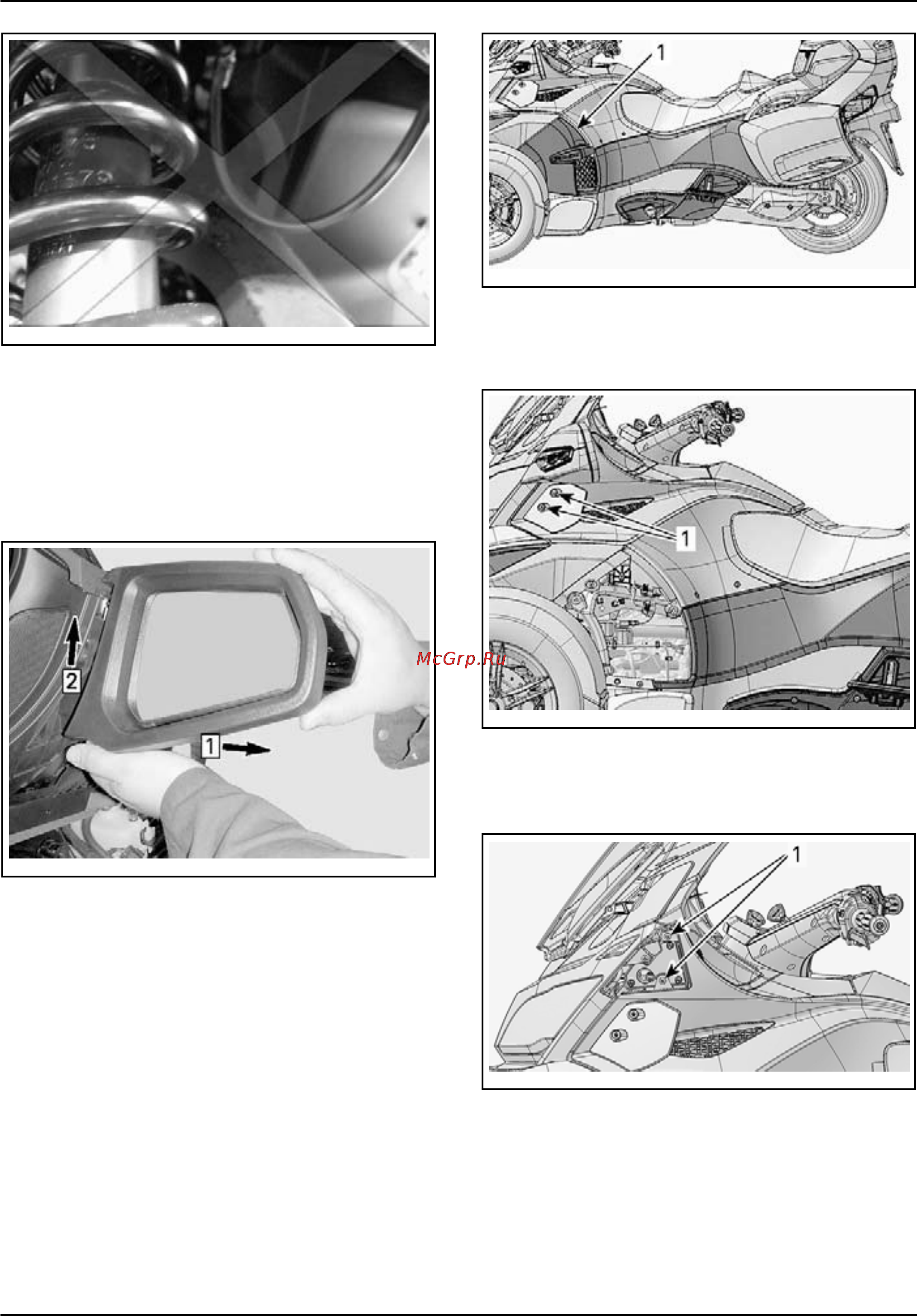

PARTSTOBEINSTALLED
rbl2010-002-355_a
WRONG INSTALLATION
9. Remove mirrors as follows:
9.1 Pull lower part of mirror toward the outside
to unlock it.
9.2 Slide mirror upwards to unhook it from up-
per slot.
9.3 Disconnect connector.
rmr2010-038-301_a
Step 1: Pull toward the outside
Step 2:
Slide upwards
10. Remove middle side panels as follows:
10.1 Pull p
anel toward the outside to remove
it fro
m grommets at the front.
10.2 Unhook the rear.
rbl2010-002-318_a
TYPICAL
1. Middle side panel
11. Remove retaining screws from lower wind de-
flectors.
rbl2010-002-319_a
TYPICAL
1. Retaining screws of wind deflector
12. Remove upper retaining screws from top side
panels.
rbl2010-002-320_a
TYPICAL
1. Upper retaining screws
13. Remove rear retaining screw from top side
panels.
PREDELIVERY 2010-1 11 / 39
