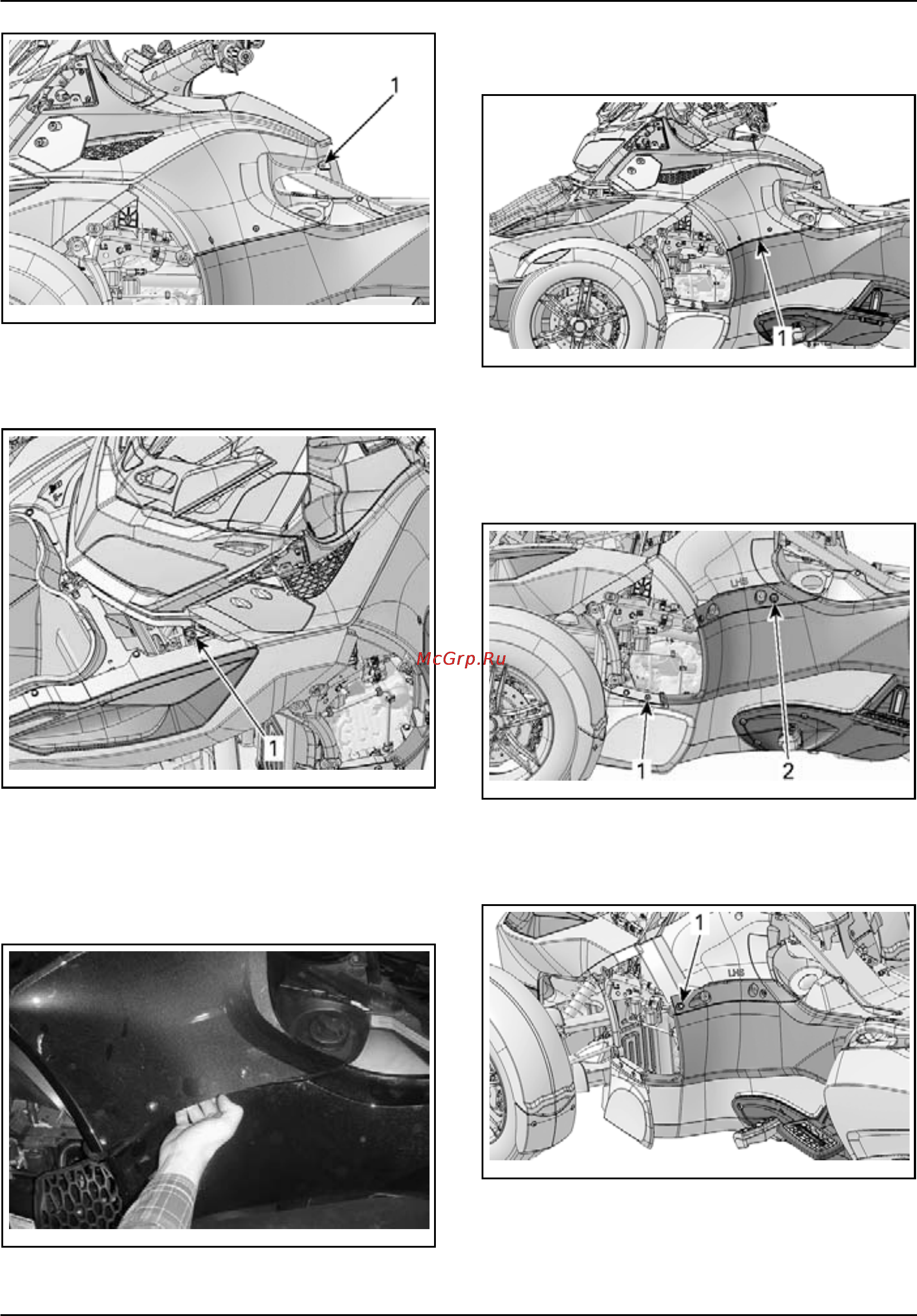

PARTS TO BE INSTALLED
rmr2010-038-006_a
TYPICAL
1. Rear retaining screw
14. Remove front retaining screw from top side
panels.
rbl2010-002-321_a
TYPICAL
1. Front r
etaining screw
15. Pull out lower part of top side panel to remove
it from grommets.
NOTE: D
o not remove lower screws from top side
panel.
rbl2010-002-305
16. Remove top side panels by lifting them up-
wards.
rmr2010-038
-009_a
TYPICAL
1. Top side panel
17. Remove fron
t retaining screw of LH rear side
panel.
18. Remove upper retaining screw and washer
from LH rear side panel.
rmr2010-038-010_a
1. Front retaining screw
2. Upper retaining screw
19. Remove front plastic rivet from LH rear side
panel.
rmr
2010-038-011_a
1. Front plastic rivet
20. Open LH storage compartment cover.
21. Remove rear retaining screws from LH rear
side panel.
12 / 39 2010-1 PREDELIVERY
