D-Link DNS-320 [10/117] The setup wizard will walk you through the configuration of your sharecenter pulse device
![D-Link DNS-320 [10/117] The setup wizard will walk you through the configuration of your sharecenter pulse device](/views2/1013341/page10/bga.png)
7D-Link DNS-320 User Manual
Section 3 - Installation

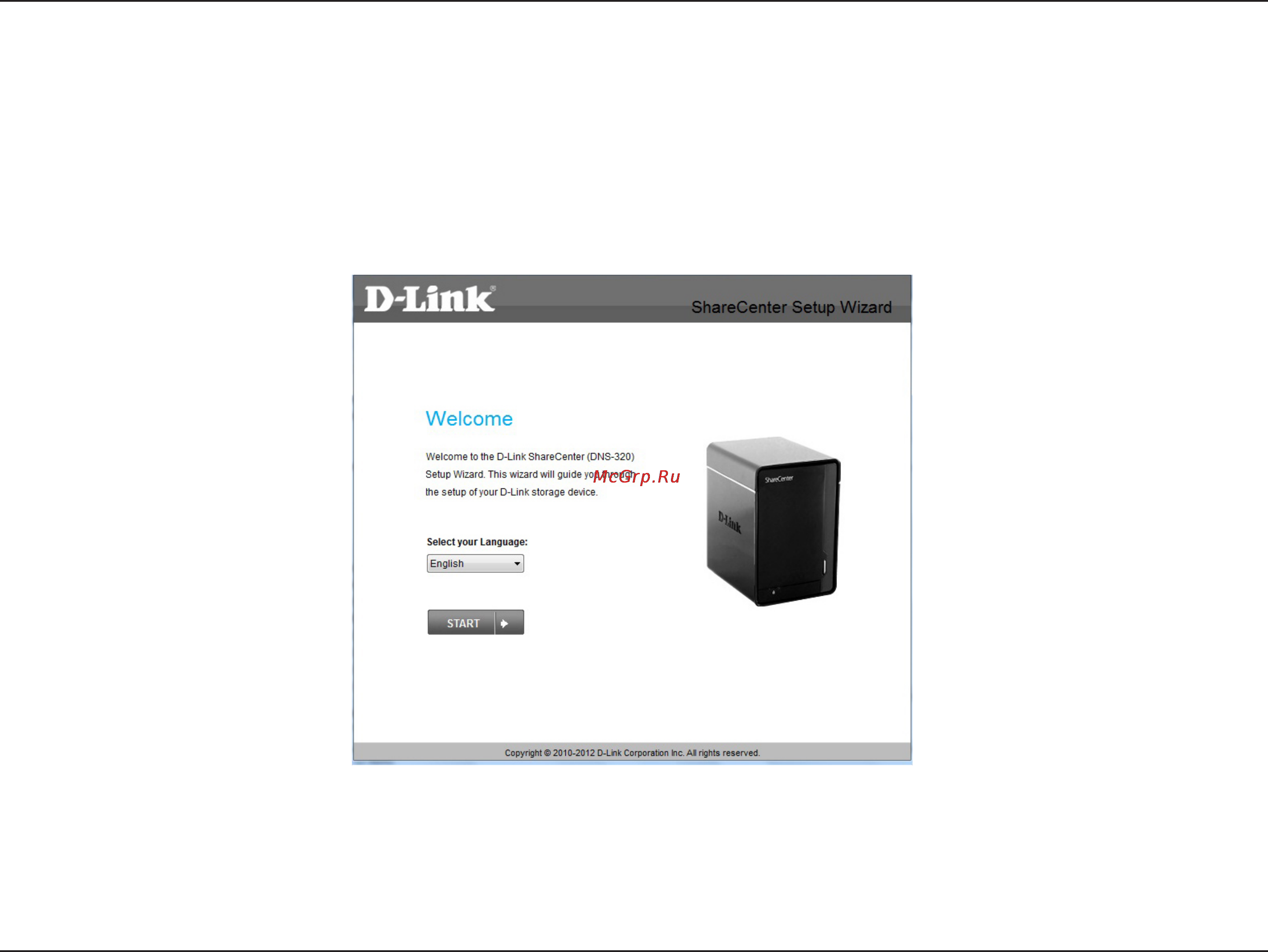

The Setup wizard will walk you through the conguration of your ShareCenter Pulse device.
Installation
Setup Wizard
Note: The computer used to access the
ShareCenter Pulse
web-based conguration manager must be on the same subnet as the ShareCenter Pulse. If
your network is using a DHCP server, the
ShareCenter Pulse
will automatically be in the same subnet.
