30D-Link DNS-320 User Manual
Section 4 - Conguration
Hard Drive Conguration Wizard
When you click the Set RAID type and Re-Format button in the Disk Management-Hard Drive Conguration menu, a wizard will launch allowing
you to format your drives and create the RAID format. The following is an example of a RAID1 conguration:

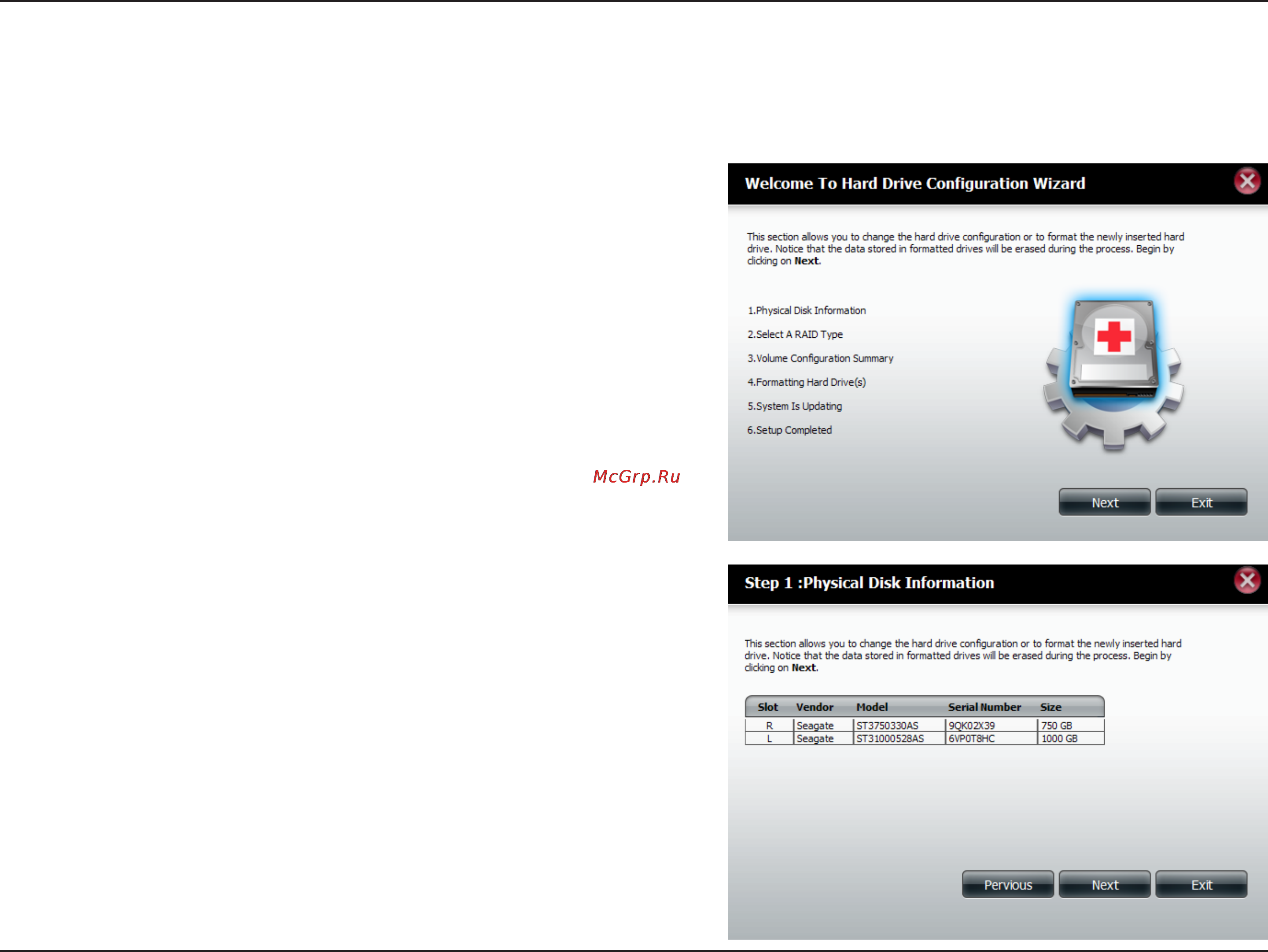

Initially the steps of the conguration process are shown. You must decide
on the RAID type you would like to format your HDDs with. Click the Next
button to continue or click Exit to cancel.
This screen displays the currently installed HDD information. Any data
on the installed hard drives will be lost by the formatting. Click Next to
continue.
