22D-Link DNS-320 User Manual
Section 4 - Conguration

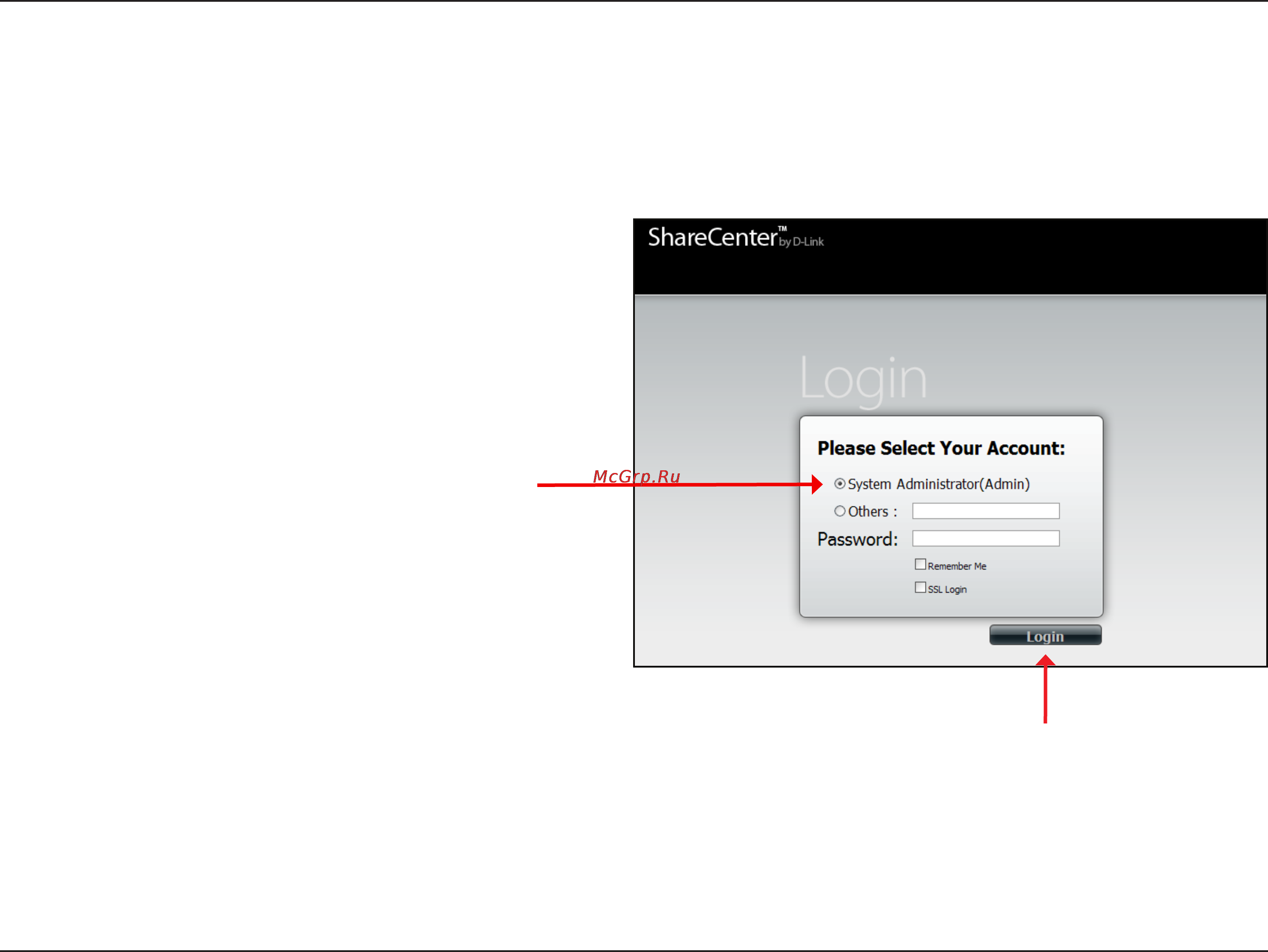

The Login screen will appear:
Select System Administrator and enter
the password you created during the
Setup Wizard.
Click Login
Note: The computer, used to access the web-based conguration, manager must be on the same subnet as the
ShareCenter Pulse
.
If your network is using a DHCP server and the computer receives IP settings from DHCP, the
ShareCenter Pulse
will automatically
be in the same subnet.
Web UI Login
Conguration
