21D-Link DNS-320 User Manual
Section 3 - Installation

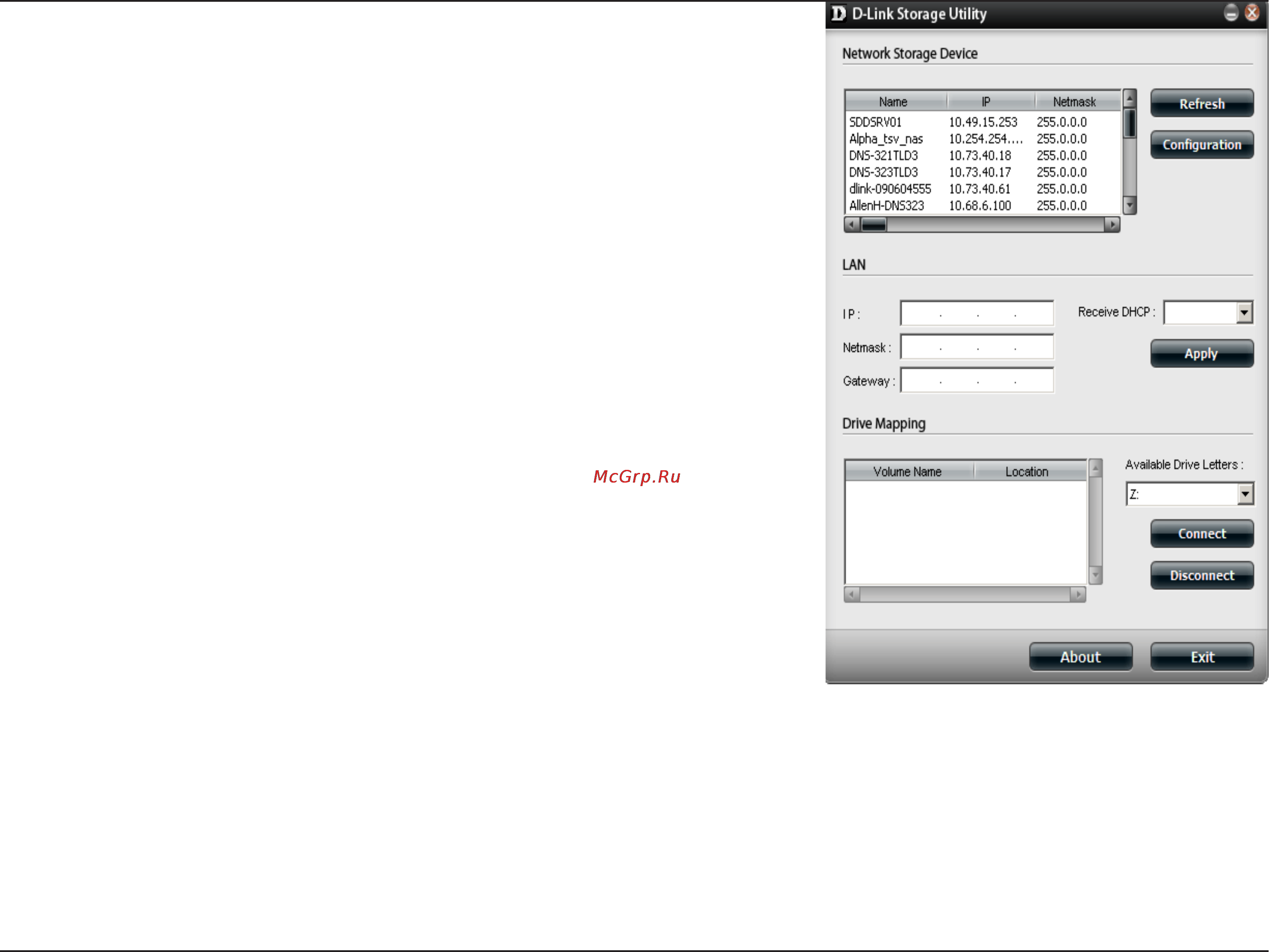

Select the device from the list and click the Conguration button. This will
launch the computer’s default web browser and direct it to the IP address
listed for the device. Make sure the browser is not congured to use a proxy
server.
Note: The computer used to access the ShareCenter Pulse web-based
conguration manager must be on the same subnet as the ShareCenter
Pulse. If your network is using a DHCP server and the computer receives IP
settings from the DHCP server, the ShareCenter Pulse will automatically be in
the same subnet.
