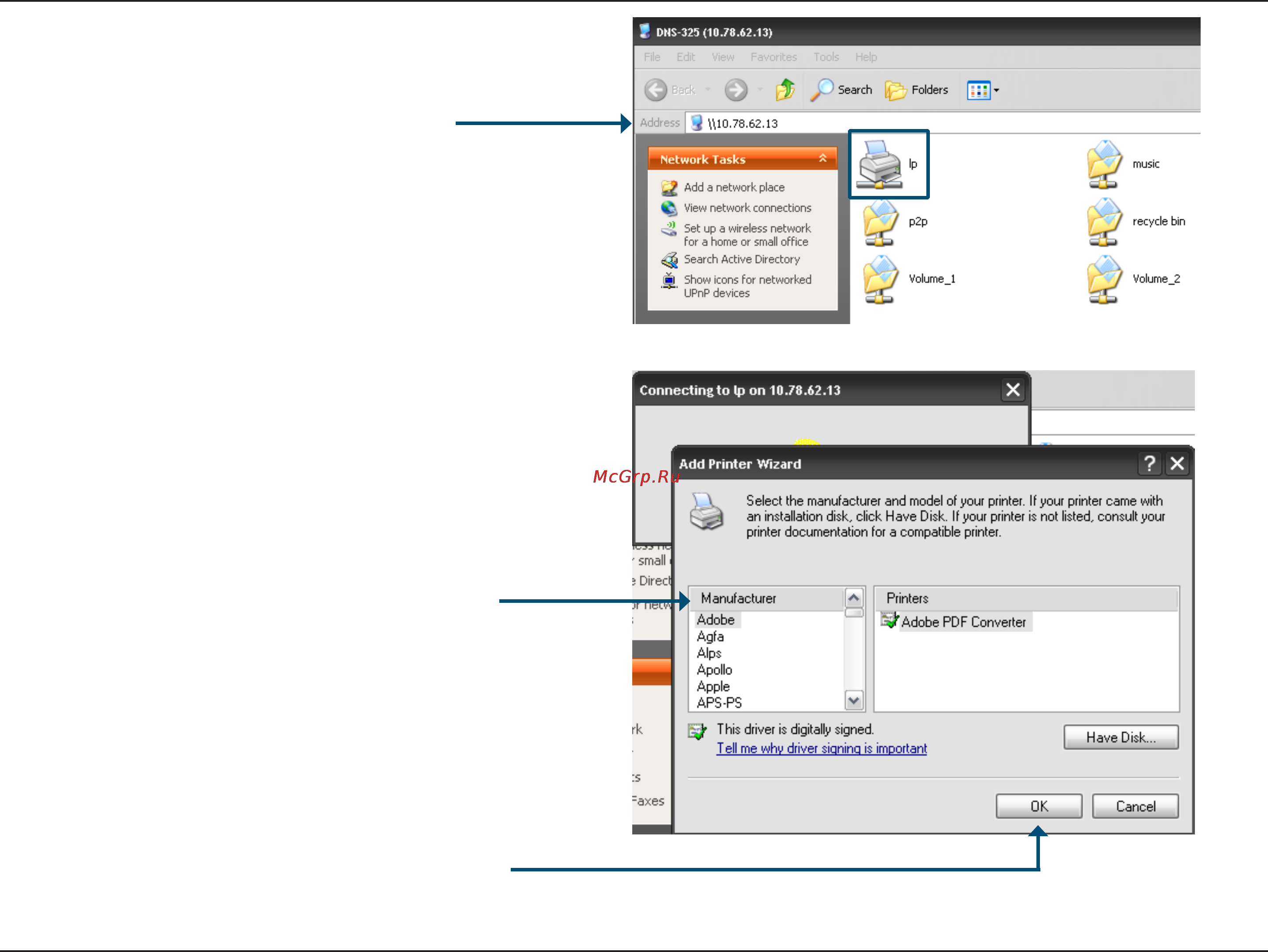

110D-Link DNS-320 User Manual
Section 5 - Knowledge Base
Select the printer driver from the installed
Manufacturer list or use the Have Disk button to
browse for the printer driver le.
The Windows
®
Add Printer Wizard will launch:
Click OK to continue.
Connect to your device with Samba
and then double-click the lp icon.
