37D-Link DNS-320 User Manual
Section 4 - Conguration
Account Management

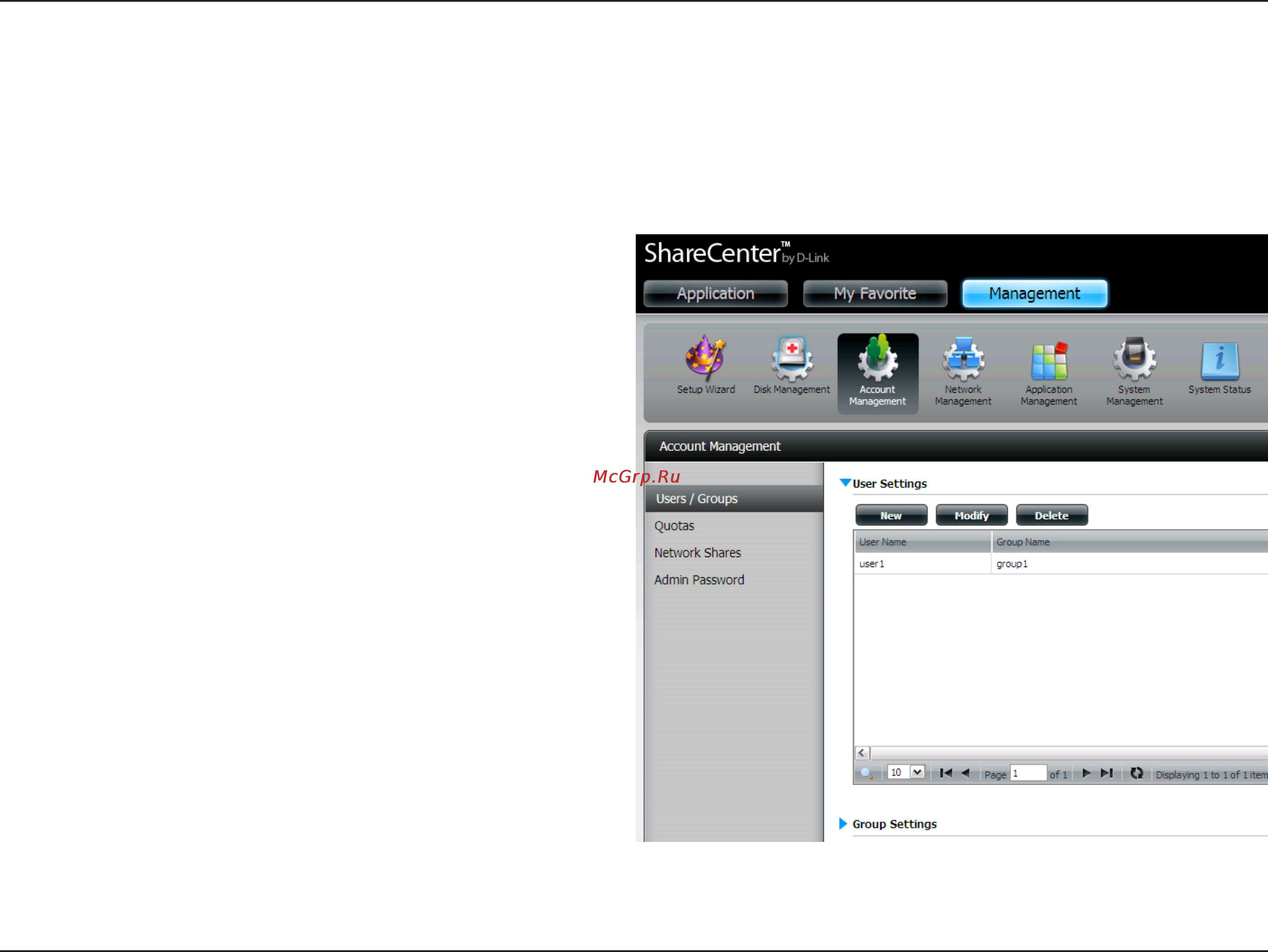

Users / Groups
The Users / Groups menu is used to create and manage user and group accounts. Up to 256 users and 32 groups can be created. By default, all users
have read and write access to all folders but access rules can be created in the Network Shares menu.
User Settings: Your hard drives can be congured and formatted in various
RAID congurations here.
New: Click this button to launch a wizard that will walk you
through adding a new user conguration.
Modify: Click on an existing user in the table so that it is highlighted
in red and then click the Mo dify button to change the
conguration of an existing user.
Delete: Click on an existing user in the table so that it is highlighted
in red and then click the Delete button to remove a user
from the conguration.
